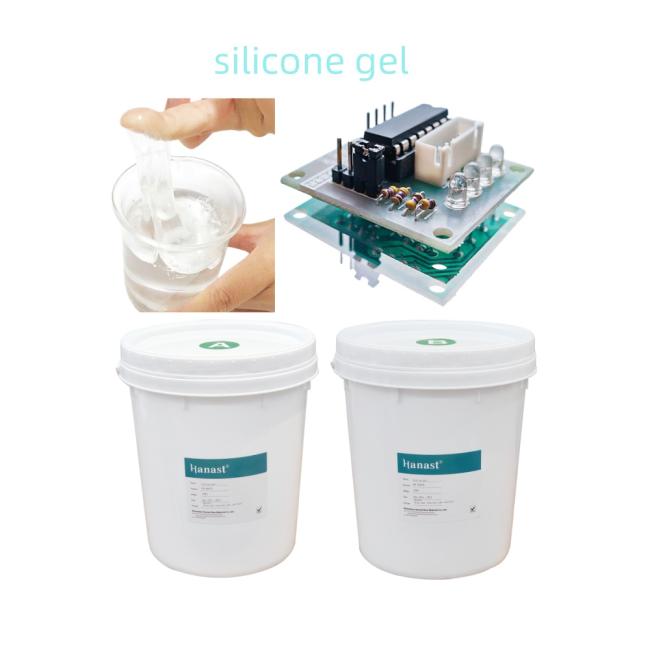

Waterproof Electronic Silicone Gel Liquid 2 Component RTV Potting Compound
0 Shore A Waterproof Liquid Silicone Gel 2 Components Transparent Gel Silicone for PCB Junction box electrical insulating gel
Product Description:
HN-6607AB is a very soft, low crosslinking density addition silicone rubber. It is a low-viscosity liquid before vulcanization
Product Features:
After vulcanization, in addition to the general characteristics of addition silicone rubber, it has good shock absorption, moisture resistance and sealing due to its soft nature. properties and excellent dielectric insulation properties over a wide range of temperature and humidity.
|
Characteristics before curing
|
||
|
Component
|
Component A
|
Component B
|
|
Color
|
Transparent liquid
|
Transparent liquid
|
|
viscosity(cp s. 25℃)
|
800～2000
|
800～1800
|
|
Relative density(mpa•s)
|
1 ．0～1.12
|
0.98～1.02
|
|
The mixing ratio
|
A:B=1:1
|
|
|
Viscosity after mixing(cp s. 25℃)
|
800～1500
|
|
|
Operate Time (25℃)
|
2 h
|
|
|
Penetration (1/10mm)
|
200~ 400
|
|
|
Curing conditions (120℃)
|
20~30 mins
|
|
|
Cured properties
Hardness(Shore A, 24hr)
|
0～10
|
|
Storage and transportation:
1,Store in a cool and dry place. The storage period is 6 months (at 25℃).
2,Products that have exceeded the shelf life should be confirmed for any abnormalities before use.
3,Components A and B of the colloid must be sealed and stored, and be careful of leakage during transportation!
4,Such products are non-dangerous goods and can be transported as general chemicals.
