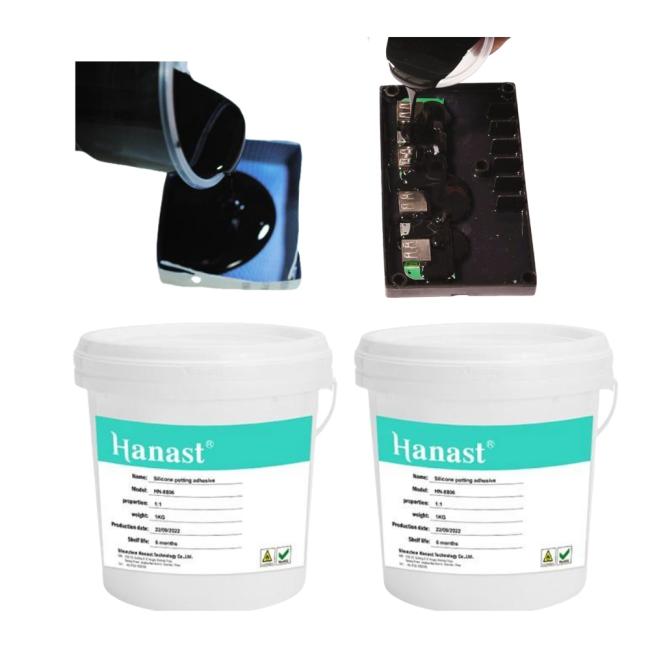

Low Viscosity RTV Potting Compound Silicone Gel For Electronics PCB LED Power Supply
Low Viscosity RTV Silicone Potting Compound For Electronics PCB LED Power Supply Battery Inverter Thermal Conductive Potting Glue High Temp
Product application:
This product is widely used in the potting and sealing of electronic components, such as various power modules, circuit boards, high-voltage transformers, battery packs, fast-charging adapters, Led driver.
PRODUCT DESCRIPTION
HN-8806, two-component addition type silicone potting rubber which can be cured into high-performance elastomer by room temperature or heating.
This potting silicone rubber has excellent electrical insulation, high moisture resistance, and a wide temperature range of -50°C to 250°C.
| Test Items | Test Standard | Units | Product test results | |||
| Part A | Part B | |||||
|
Before Curing
|
1 | Appearance | By eyes | --- | Grey, fluid | White, fluid |
| 2 | Viscosity | GB/T10247- 2008 | 25ºC,mPa·S | 4500~5000 | 4500~5000 | |
| 3 | Density | GB/T 13354-92 | 25ºC,g/cm3 | 1.50±0.05 | 1.50±0.05 | |
| 4 | Mixing Ratio (A : B) | 1:1 | Weight ratio | 100 | 100 | |
| Volume ratio | 100 | 100 | ||||
| 5 | Operating time | Measured | hr | 0.3-0.4 | ||
| 6 | Curing condition | Measured | hr |
4~12 (25ºC, initial cure) |
||
|
0.20 (80ºC) |
||||||
|
After Curing
|
7 | Appearance | By eyes | --- | Grey Elastomer | |
| 8 | Hardness | GB/T 531.1-2008 | Shore A | 50±5 | ||
| 9 | Thermal conductivity | GB/T10297-1998 | w/m·k | ≥0.76 | ||
| 10 | Expansivity | GB/T20673-2006 | µm/(m,ºC) | 210 | ||
| 11 | Moisture Absorption | GB/T 8810-2005 | 24h,25ºC,% | 0.01~0.02 | ||
| 12 | Volume resistivity | GB/T 1692-92 | (DC500V),Ω· cm | 1.0×1016 | ||
| 13 | Dielectric intensity | GB/T 1693-2007 | Kv/mm(25ºC) | 18~25 | ||
| 14 | Temperature Resistance | Measured | ºC | -50~+250 | ||
- Storage and transportation:
This product is non-toxic non-dangerous goods, according to the general chemical handling, stored in a cool & dry place (room temperature).
- Shelf Life: 6 months, overdue please reinspect; If it meets the standard, it can still be used.
