Low Viscosity Silicone Gel HN-6607 | Easy Flow | Electronic Potting Material

Product Overview for Electronic Silicone Gel:

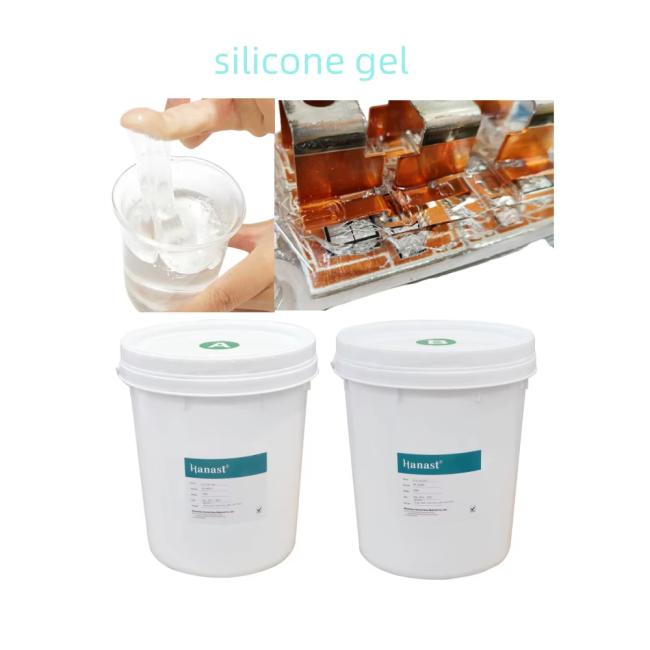

HN-6607 is a low-viscosity, two-part silicone gel with excellent flow properties after mixing, allowing it to easily penetrate and fill fine gaps. It is a medium-temperature curing product that forms a soft elastomer, providing comprehensive protection for electronic assemblies, making it an ideal choice for electronic potting applications.

Product Performance for Electronic Silicone Gel:

- Viscosity Component A: 800–2000 cps

- Viscosity Component B: 800–1800 cps

- Mixed Viscosity: 800–1500 cps

- Pot Life: Up to 2 hours (25°C)

- Hardness After Curing: 0–10 Shore A

Product Highlights for Electronic Silicone Gel:

- ✅ Excellent Flow & Leveling: Low viscosity, easy flow, suitable for potting complex structures.

- ✅ Long Pot Life: 2-hour pot life allows for complex or large-volume dispensing.

- ✅ Reliable Insulation: Good dielectric strength ensures circuit safety.

- ✅ Precise Mix Ratio: 1:1 mix ratio minimizes weighing errors.

Product Applications for Electronic Silicone Gel:

- Potting for coils and transformers

- Insulating encapsulation for power modules

- Embedding for capacitors and inductors

- Overall protection for various electronic circuit boards

Operation Guide for Electronic Silicone Gel:

1. Before use, stir Component A thoroughly and shake Component B well.

2. Weigh and mix at a 1:1 weight ratio.

3. Utilize its low viscosity for pouring or dispensing, allowing it to self-level and fill gaps.

4. For best results, cure at 120°C for 20-30 minutes.

Precautions for Electronic Silicone Gel:

- Vacuum degassing after mixing is recommended, especially for deep cavity potting, to achieve bubble-free results.

- Avoid operation in high temperature and humidity environments to prevent reduced pot life and moisture ingress.

Packaging & Storage for Electronic Silicone Gel:

- Packaging: 40 kg per set (20 kg pail of A + 20 kg pail of B)

- Storage: Keep in a sealed container in a cool, dry place below 25°C.

- Shelf Life: 6 months (below 25°C).

- Transportation: Classified as non-hazardous goods; can be transported as general chemicals.

FAQ for Electronic Silicone Gel:

1. Q: Is its viscosity suitable for vacuum potting?

A: Yes, its low viscosity is very suitable for degassing and flowing under vacuum, filling complex cavities effectively.

2. Q: Can the curing time be adjusted according to the production cycle?

A: Yes, the curing time can be adjusted by modifying the curing temperature (within a reasonable range). Please consult the TDS or our technical staff.

3. Q: Does it produce volatiles during curing?

A: No, this is an addition-cure silicone. It releases no by-products during curing and has very low shrinkage.

4. Q: Can it be used for thermal conduction applications?

A: HN-6607 is a standard electrical insulating gel focused on protection and insulation. Please consult our specialized thermal conductive silicone gel series for heat dissipation needs.

5. Q: Is it corrosive to metals?

A: It is non-corrosive to common metals like copper, aluminum, and steel. However, compatibility testing is recommended for special platings or reactive metals.
