Medium Temp Cure Silicone Gel HN-6607 | Fast Vulcanization | Boost Productivity

Product Overview for Electronic Silicone Gel:

HN-6607 is a silicone gel designed for medium-temperature rapid curing processes. Curing in just 20-30 minutes at 120°C significantly shortens production cycles, increases efficiency, while maintaining the soft, insulating properties of silicone gel.

Product Performance for Electronic Silicone Gel:

- Fast Cure: 20-30 minutes at 120°C.

- Long Pot Life: Up to 2 hours at 25°C, facilitating process layout.

- Mixed Viscosity: 800–1500 cps, easy to use.

- Properties After Curing: Ultra-soft, 0-10 Shore A hardness.

Product Highlights for Electronic Silicone Gel:

- ✅ Rapid Curing: Optimizes production efficiency and reduces energy consumption.

- ✅ Wide Process Window: Combines long pot life with short curing time.

- ✅ Stable Performance: Consistent post-cure product performance.

- ✅ High Versatility: Suitable for potting various electronic components.

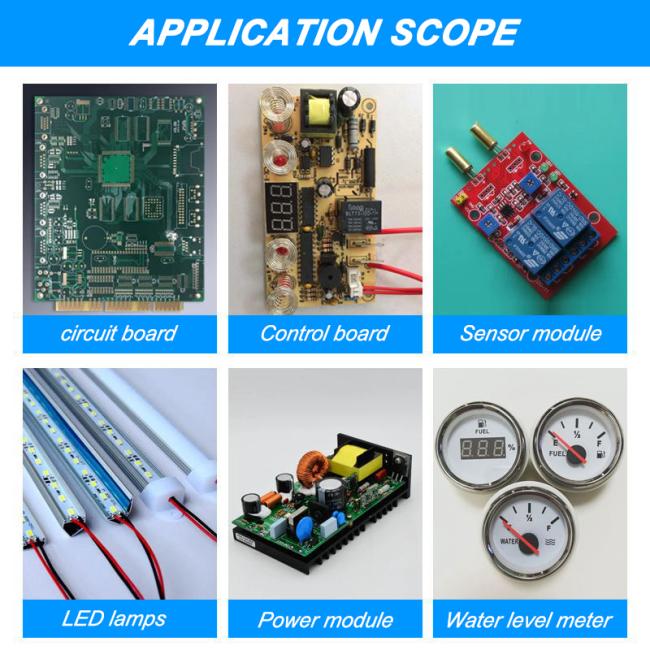

Product Applications for Electronic Silicone Gel:

- Potting for consumer electronics requiring fast turnaround

- High-volume production of automotive electronic modules

- Protection for industrial control boards

- Waterproof sealing for connectors and terminals

Operation Guide for Electronic Silicone Gel:

1. Before use, stir Component A thoroughly and shake Component B well.

2. Weigh and mix at a 1:1 weight ratio until uniform.

3. Proceed with potting or dispensing.

4. Place in a preheated oven at 120°C for 20-30 minutes. Remove and cool before next process step.

Precautions for Electronic Silicone Gel:

- Ensure the oven temperature is uniform and stable to avoid incomplete or over-curing.

- Production lines should plan the rhythm between operation and curing to make full use of the 2-hour pot life.

Packaging & Storage for Electronic Silicone Gel:

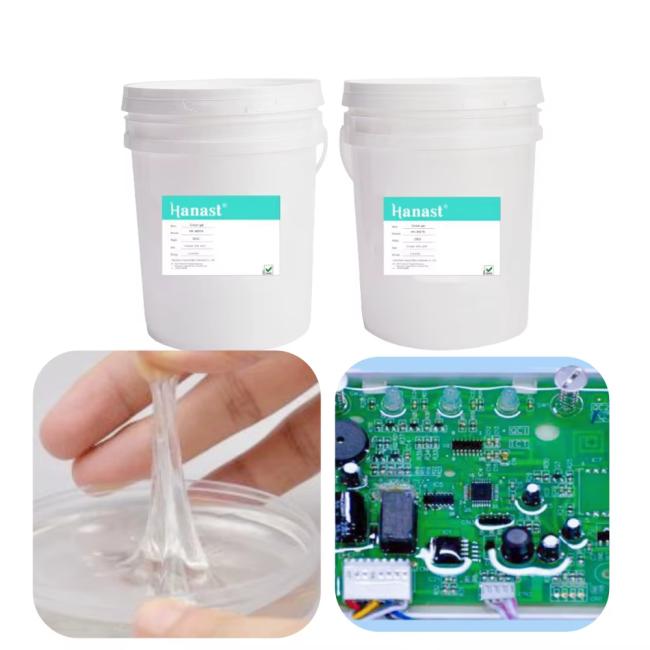

- Packaging: 50 kg per set (25 kg pail of A + 25kg pail of B)

- Storage: Keep in a sealed container in a cool, dry place below 25°C.

- Shelf Life: 6 months (below 25°C).

- Transportation: Classified as non-hazardous goods; can be transported as general chemicals.

FAQ for Electronic Silicone Gel:

1. Q: What is the maximum curing temperature?

A: It is not recommended to exceed 150°C. Excessively high temperatures may cause aging, embrittlement, or bubbling.

2. Q: Is the cured product flame retardant?

A: HN-6607 is a standard insulating material without added flame retardants, meeting basic insulation requirements. For flame-retardant versions (e.g., UL94 V-0), we offer alternative solutions.

3. Q: Can it be used for outdoor waterproof products?

A: It has excellent moisture resistance. However, for long-term direct exposure to UV, rain, and other outdoor elements, a protective housing or our more weather-resistant (UV resistant) products are recommended.

4. Q: Does it adhere well to other silicone rubber?

A: It adheres well to itself. Adhesion to other types of silicone rubber may require testing and potentially a primer.

5. Q: How to determine if the gel is fully cured?

A: Fully cured gel is dry to the touch, non-tacky, and uniformly elastic. Confirm via hardness testing or simple probe testing.
