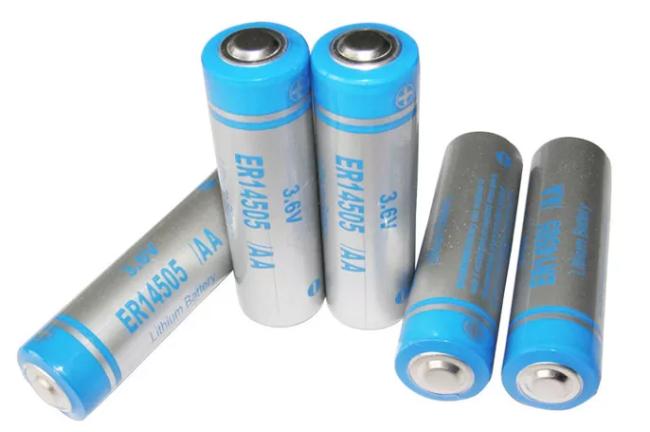

Gas Meter 3.6V AA ER14505 Li-SOCl2 Battery High Capacity

Features

1. High Energy Density: Offers one of the highest energy densities among primary batteries, ideal for long-life applications.

2. Excellent Shelf Life: Extremely low self-discharge rate (<1% per year) allows for storage lifespans of 10 years or more.

3. Wide Operating Temperature Range: Performs reliably in extreme environments, from -60°C to +85°C.

4. Stable Voltage Output: Maintains a remarkably stable voltage plateau throughout most of its discharge life (e.g., 90% of capacity).

5. Robust Construction: Features a stainless steel case and a glass-to-metal hermetic seal for enhanced reliability and leakage prevention.

6. Maintenance-Free: As a primary battery, it requires no charging or maintenance during its service life.

Specification


Applications

• Smart Metering: Electricity, water, gas, and heat meters (AMR/AMI systems).

• Wireless Sensors & IoT: Wireless alarm sensors, smoke detectors, temperature monitors, remote tracking systems, IoT devices.

• Memory Backup: Real-time clocks (RTC), SRAM backup, computer support power.

• Industrial Equipment: Oil drilling, mining, industrial automation, data loggers.

• Medical Devices: Portable medical equipment.

• Security Devices: Electronic locks, alarm systems.

• Automotive Electronics: Tire Pressure Monitoring Systems (TPMS), ETC systems.

• Military and Aerospace: Suitable for various military communication equipment and aerospace applications due to wide temperature range and reliability.

Warnings & Safety Instructions

Operation

• Do Not Recharge: This is a primary (non-rechargeable) battery. Attempting to charge it can cause heating, leakage, rupture, or fire.

• Avoid Short Circuits: A short circuit can generate extreme heat and lead to venting, explosion, or fire. Never place loose batteries where terminals can contact metal objects.

• Current Limits: Do not exceed the manufacturer's specified maximum continuous and pulse currents. Using it in a higher drain application than designed for can cause voltage delay, premature failure, or hazard.

• Voltage Monitoring: Avoid deep discharge below the recommended cut-off voltage (2.0V).

• Temperature Limits: Operate within the specified temperature range. Exposure to excessive heat can be dangerous.

Storage & Disposal

• Storage: Store in a cool, dry place (preferably below 20°C, not exceeding 30°C).  Avoid high humidity.

• Disposal: Do not dispose of in regular trash. These batteries must be recycled or disposed of as hazardous waste according to local regulations. Contact a licensed waste handler.

Other Prohibitions

• Do Not Incinerate: Incineration may cause explosion.

• Do Not Disassemble: Disassembly will expose internal chemicals, which are harmful.

• Do Not Mix: Do not mix with different battery types, brands, chemistries, or old/new batteries.
