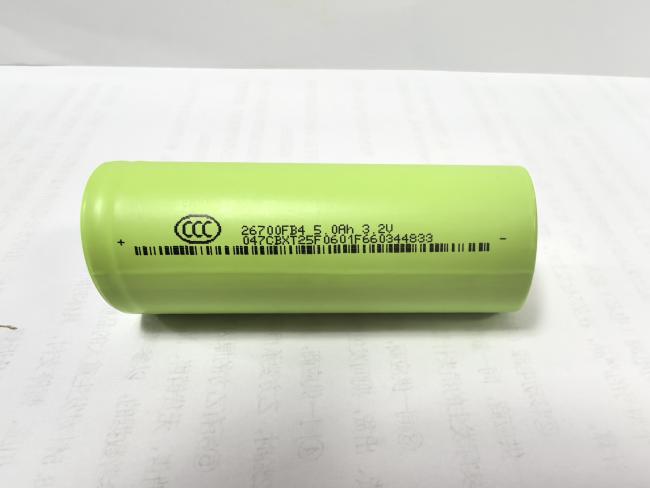

26700 5000mAh 3.2V Lithium Ion Rechargeable Batteries For Solar Energy Storage
26700 5000mAh 3.2V Lithium Ion Rechargeable Batteries for Solar Energy Storage
Features
- Long Cycle Life: Designed for over 1500-2000 charge-discharge cycles while maintaining more than 80% of its initial capacity.
-
High Energy Density: Offers a substantial capacity of 5000mAh in a compact cylindrical form factor (26700), providing extended runtime for various applications.
-
Stable Discharge Voltage: Maintains a relatively stable nominal voltage of 3.2V throughout most of the discharge cycle, ensuring consistent performance for powered devices.
-
Wide Operating Temperature Range: Capable of operating in a range of environments, with discharge performance down to -20°C and charge acceptance up to 45°C.
-
Low Self-Discharge: Retains charge for extended periods when not in use, making it suitable for applications requiring ready power availability.
Specifications
| Nominal Capacity | 5000mAh (discharge with 0.2C to 2.5V) |
| Nominal Voltage | 3.2V |
| Dimension | Diameter : 26mm Height : 70mm |
| Standard Charge | Constant Current: 0.5C (2500mA) |
| Operating Teerature | Charge:0 ~ 45℃ |
| Discharge:-20 ~ 60℃ | |
| Weight | 88 g |
| Storage Teerature |
-20°C to 60°C (Recommended: 20-25°C) |
| Cycle Life | ≥1500-2000 cycles |
| Internal Resistance | Typically ≤15mΩ |
Applications
- Outdoor Portable Power Stations: Provides energy storage for camping, hiking, and outdoor activities.
-
Solar Energy Storage Systems: Ideal for storing solar energy in off-grid or backup power systems.
-
Light Electric Vehicles (LEVs): Power source for e-bikes, e-scooters, electric tricycles, and golf carts.
-
UPS (Uninterruptible Power Supplies): Backup power for critical equipment like computers and communication devices.
-
Electric Tools: High-demand applications such as power drills, saws, and other cordless tools.
-
LED Lighting Systems: Used in street lights, solar lamps, and other high-efficiency lighting solutions.
-
Industrial Equipment: Backup power or main power for industrial sensors, data loggers, and other equipment.
Warnings & Precautions
- Charge Within Specifications: Do not charge above the maximum voltage of 3.65V or exceed the maximum continuous charge current specified for the battery .
- Temperature Monitoring: Charge only between 0°C to 45°C. Never charge a battery that is below freezing (0°C) or feels hot to the touch.
- Avoid Over-Discharge: Stop using the battery before reaching the cut-off voltage (2.0V - 2.5V).
- Respect Current Limits: Do not exceed the maximum continuous discharge current for prolonged periods.
- Temperature Management: Avoid discharging outside the recommended temperature range (-20°C to 60°C).
- Partial Charge Storage: For long-term storage (longer than one month), store the battery at a 30%-50% State of Charge (SOC). This minimizes age-related degradation.
- Cool and Dry Environment: Store in a cool, dry place away from direct sunlight, moisture, and heat sources. Ideal storage temperature is between -20°C to 25°C.
