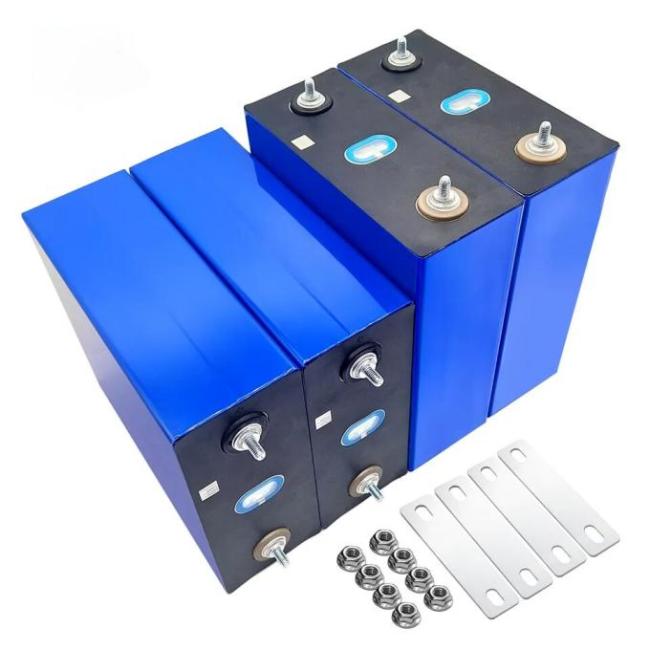

174*72*207mm 3.2 V 280ah Lifepo4 Battery Cell For Solar Energy Storage
Professional 3.2V 280ah Lifepo4 Battery Cell for Solar Energy Storage
Features:
1. Supports over 9000 cycles (at 80% Depth of Discharge) while maintaining 80% capacity.
2. Stable performance under high-current discharge and extreme temperatures.
3. Compact designand lightweight for its capacity, ideal for space-constrained applications.
4.Operates efficiently in extreme environments (-35°C to 65°C discharge; 0°C to 65°C charge).
5.No memory effect, no liquid electrolyte leakage, and RoHS/CE compliant.
6.≤0.5 mΩ (ensures high efficiency and minimal voltage drop under load).
7.OQC report MSDS UN38.3 DG License support sea delivery to overseas market.
Specifications:
| Product Name | CALB L173F280A |
| Rated Voltage | 3.2V |
| Internal Resistance | ≤0.2-0.5mΩ |
| Rechargeable | 9000 times |
| Max Capacity | 304Ah |
| Operating Temperature |
Charging: 0°C to 65°C Discharging: -35°C to 65°C |
| Max charge/discharge current | 0.5C/1C |
| Dimension | 174*72*207mm |
| Weight | 5.42±0.16kg |
Applications
- Solar Energy Storage Systems: Primary application for storing solar power due to high cycle life and stability.
-
Electric Vehicles (EVs): Power for electric cars, buses, and golf carts.
-
Marine & RV: Reliable power for navigation, appliances, and off-grid living.
-
Uninterruptible Power Supplies (UPS): Backup power for critical systems.
-
Industrial Equipment: Power for forklifts, aerial work platforms, and mining equipment
Usage precautions and safety warnings
Charging
- Use LiFePO4-Specific Chargers: Lead-acid or other chemistry chargers can damage the battery. Opt for smart chargers with LiFePO4 profiles (CC/CV method: 3.65V cut-off).
-
Temperature Limits: Do not charge below 0°C or above 65°C to prevent capacity degradation.
Discharging
- Avoid Deep Discharge: Do not discharge below 2.5V to prevent irreversible damage.
-
Current Limits: Do not exceed 280A continuous discharge unless for short peaks (≤3 sec at 3C).
Safety
- No Modification: Do not disassemble or bypass the built-in protections.
-
Emergency Handling: In case of damage, submerge in saltwater (for discharged batteries) and contact professionals.
Storage & Maintenance
- Partial Charge Storage: Store at 30%~50% SOC in a cool, dry place (ideally <35°C).
-
Regular Checks: Inspect terminals for corrosion and clean with a dry cloth.
-
Recharge Interval: Recharge every 3 months during long-term storage to maintain health.
