Round Electric Telescopic Columns 24V DC 2000N Thrust 400mm Stroke 3 Stage Lifting Column For Furniture
This high-performance three-stage round electric lifting column delivers reliable operation with a 2000N load, ensuring stable height adjustment. It offers a durable solution for precision tasks in applications such as ergonomic workshop stands and Height-adjustable therapy tables.
*This electric lifting column actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-PAT-65 |
| Voltage | 24V/12V DC |
| Max. Load Force | 200KG (Push) |
| Max. Speed at Full Load | 9mm/s |
| Max. Speet at Free-load | 16mm/s |
| Max. Dynamic bending moment | 500Nm |
| Max. Static bending moment | 1000Nm |
| Stroke | 200mm - 400mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors |
| Retracted Length | ≧Stroke/2 + 150mm |

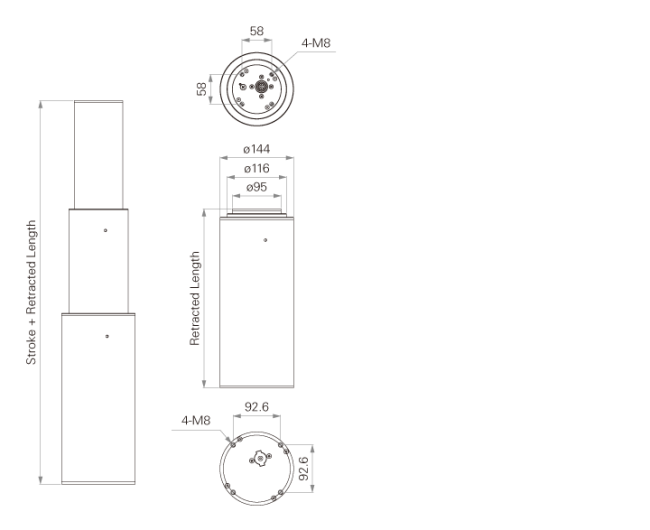

| Section | 3-stage , ∅144, Round |
| Operation Temperature | -5℃ - +45℃ |
| Color | Silver |
| IP Rating | IPX6 |
- Telescopic 3-stage construction offering extended travel with minimal installation space
- Reliable lifting force ensuring smooth and stable movement
- Position feedback option via integrated Hall sensors
- Elegant round column design for contemporary equipment styling
- Ideal for height-adjustable desks, medical beds, and care seating solutions
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the lifting column per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
