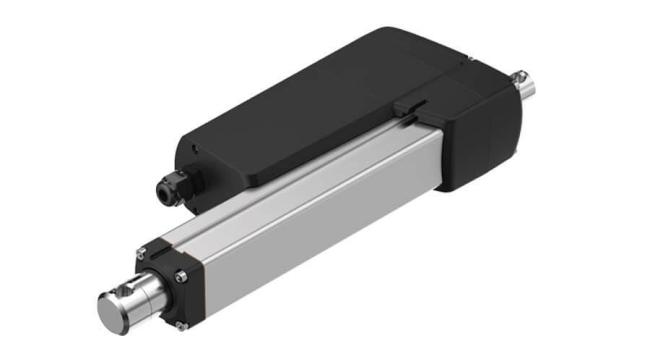

Industrial Linear Actuator High Force 16kN IP69K 25-1000mm For Heavy Lifting Automation
This heavy duty DC electric linear actuator delivers up to 16kN high-thrust push and pull force, making it ideal for industrial automation, agricultural machinery, construction equipment, and other demanding applications. Featuring IP69K waterproof protection, and customizable strokes from 25 to 1000 mm, it is engineered for durability, precision, and long-term performance. And an integrated manual override, this actuator ensures reliable operation even in harsh environments and emergency conditions.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-PAT-9 |
| Voltage | 12V DC / 24V DC |
|
Max. Load Force |
16000N (Push / Pull) |
| Max. Speed at Full Load |
6mm/s (ACME screw); 8mm/s(Ball screw) |
| Max. Speet at Free-load |
172mm/s (ACME screw); 21mm/s (Ball screw) |
| Stroke | 25mm - 1000mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors / POT |
|

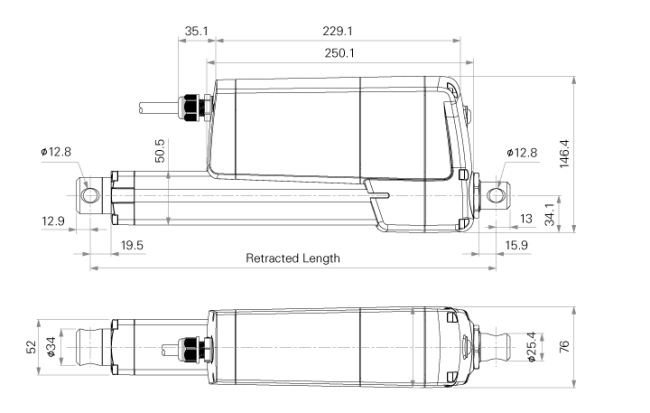

Retracted Length |
≧Stroke + 200mm |
| IP Rating | IP69K |
| Operation Temperature | -40℃ - +85℃ |
| Manual Drive | Within |
| Options | T-smart alternatives |
| Color | Black |
| Warranty | 18 months |
- Extreme Load Capacity & Precision Drive : 16kN push/pull force, with Ball screw or ACME screw options to balance speed, efficiency, and self-locking requirements for heavy-duty applications
- IP69K Waterproof & Harsh-Environment Ready: ensuring reliable operation in demanding industrial and outdoor environments.
- Wide Customization & Control Flexibility: optional Hall sensor or potentiometer feedback enable seamless integration into various control systems
- High Reliability & Safety Backup:inbuilt manual drive function, allowing emergency operation during power loss or system failure.
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
