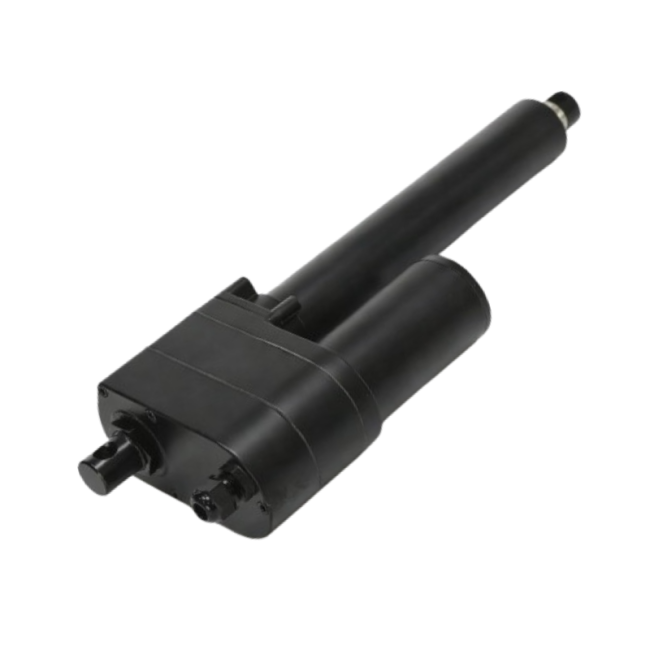

10000N High Force IP65 DC Linear Electric Actuators For Industrial Automation Equipments
The LS-HD industrial electric actuator delivers up to 10000N of linear force while supporting a wide stroke range, making it suitable for automation equipment, mobile machinery, and industrial positioning systems. Its IP65-rated enclosure protects internal components from dust and water ingress, ensuring consistent operation in outdoor or industrial environments. Multiple position feedback choices are available, allowing the actuator to integrate easily with different control systems and meet varying accuracy requirements.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-HD |
| Voltage | 12V DC / 24V / 36V / 48V DC |
| Spindle Type | ACME Screw / Ball Screw |
|
Max. Load Force |
10000N |
| Max. Speed at Full Load |
4mm/s |
| Max. Speet at Free-load |
35mm/s |
| Stroke | 50mm - 1000mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors / POT |
|
Retracted Length |
≧ Stroke +250mm |
| IP Rating | IP65 |
| Operation Temperature | -40℃ - +65℃ |
| Operation | Electrical |
| Warranty | 18 months |
| Duty cycle | 25% |
| Motor type | Brushed DC |
|
Application |
Industrial production lines and automated machinery |
- Balanced thrust up to 10000N for linear motion in industrial and mobile equipment
- Extended stroke flexibility to support diverse installation and motion requirements
- IP65 protection with wide temperature tolerance for reliable use in demanding environments
- Multiple position feedback options enabling simple integration with PLCs and custom control systems
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
