Silent Industrial Electric Actuator 12V 24V DC 6000N Load IP69k Weather Resistant
LS-PAT-11 is a compact linear actuator engineered for smooth and quiet operation in demanding light-duty environments. It maintains noise levels below 58 dBA. With optional protection up to IP69K, it delivers reliable performance even in harsh conditions, making it a dependable solution for noise-sensitive industrial applications.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-PAT-11 |
| Voltage | 12V / 24V DC |
| Max. Load Force | 6000N (Push);4000N(Pull) |
| Max. Speed at Full Load | 3mm/s |
| Max. Speet at Free-load | 7mm/s |
| Stroke | 50mm - 1000mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors / POT |

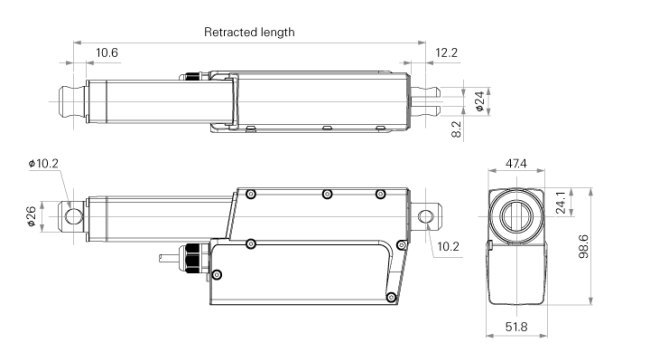

| Retracted Length | ≧230mm |
| IP Rating | IP69K |
| Operation Temperature | -25℃ - +65℃ |
| Options | Hand crank |
- Long stroke options for flexible design
- Manual crank option for emergency operation
- High thrust capacity up to 6000 N
- Low-noise, durable construction with optional high IP protection
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
