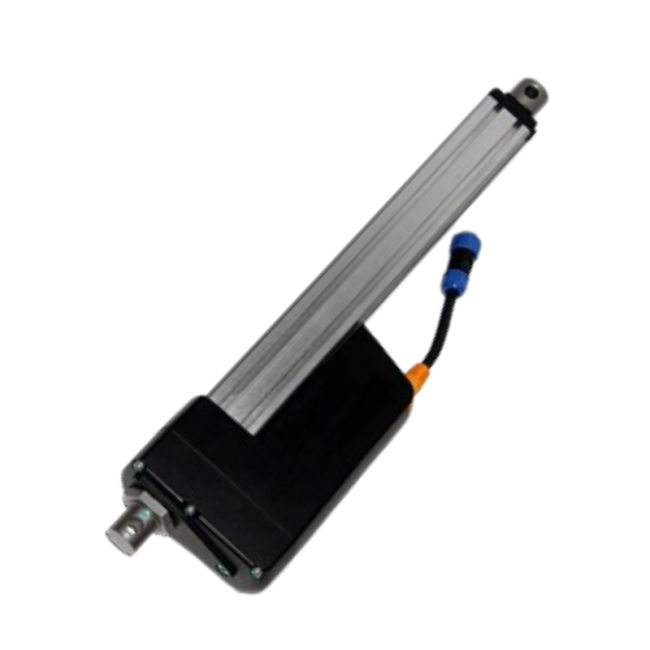

17000N Heavy Duty Linear Actuators 3800lbs High Thrust 24V DC IP67 Waterproof With Manual Crank
This 24V DC high-force electric actuator delivers up to 17000N (3800 lbs) of powerful thrust, featuring IP67 waterproof protection and a manual crank override, making it ideal for demanding industrial and outdoor automation applications.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-HD6 |
| Voltage | 12VDC/ 24VDC / 36VDC / 48VDC |
| Max. Load Force | 17000N |
| Max. Speed at Full Load | 5mm/s (at 17000N) |
| Max. Speet at Free-load | 35mm/s (at 3500N) |
| Stroke | 50mm - 1000mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors |

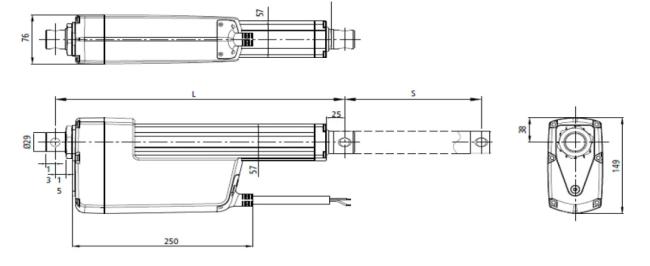

| Retracted Length | ≧Stroke + 200mm |
| IP Rating | IP67 |
| Operation Temperature | -40℃ - +65℃ |
- Allows manual operation during power outages or emergency situations due to the manual crank override
- Fully sealed housing IP67 protection against dust and water for reliable outdoor and industrial use
- Ultra-High Thrust Performance for heavy-duty lifting and pushing tasks
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
