32/5t Dual Hoist Single Girder Overhead Bridge Crane A5 Working Class for Industrial Workshops
Price:
60,000 – 100,000 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Product Description

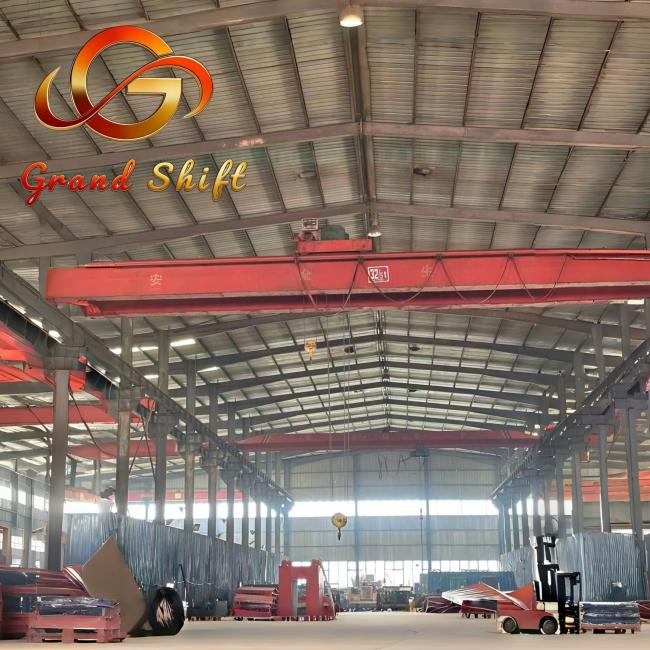

32/5t Single Girder Overhead Bridge Crane for Workshop
The 32/5t Single Girder Overhead Bridge Crane is a heavy-duty material handling solution designed for industrial applications requiring main hoist capacity of 32 tons and auxiliary hoist capacity of 5 tons. This crane features a single bridge beam construction with an electric hoist running on the bottom flange of the girder. The dual-hoist configuration allows efficient handling of both heavy loads and lighter auxiliary lifting tasks. This crane is widely used in manufacturing workshops, warehouses, steel service centers, and heavy industrial facilities.
Performance Parameters
| Parameter | Main Hoist | Auxiliary Hoist |
|---|---|---|
| Capacity | 32 t | 5 t |
| Working Class | A5 (Moderate to Heavy Service) | |
| Span Range | 7.5 m - 35 m (customizable) | |
| Lifting Height | Up to 30 m (customizable) | |
| Lifting Speed | 7.8 m/min | 19.4 m/min |
| Hoist Traveling Speed (Trolley) | 10 - 20 m/min | |
| Crane Traveling Speed (Bridge) | 20 - 47 m/min | |
Structural Specifications
- Bridge Structure: Single girder, box or I-beam construction
- End Carriages: Steel fabricated with anti-corrosion coating
- Hoist Type: Electric wire rope hoist (dual hoist configuration)
- Trolley Configuration: Main hoist + auxiliary hoist on same trolley
- Rail Type: P43 / QU70 / QU80 (depending on capacity and span)
- Wheel Configuration: 8-wheel bogie design for 32/5t model
Electrical & Control
- Power Supply: 3-phase, 380V - 690V, 50Hz / 60Hz
- Total Motor Power: 87.5 - 106.5 kW (depending on configuration)
- Motor Insulation Class: F
- Protection Class: IP44 - IP55
- Control Mode Options: Pendant control (ground operation), Radio remote control, Cabin control (optional)
Safety Devices
- Overload limiter / Weight overload protection device
- Lifting limit switch
- Travel limit switches (crane and trolley)
- Emergency stop system
- End approach buffers (polyurethane or rubber)
- Current overload protection device
- Low voltage protection device
Dimensions & Operating Environment
Dimensions (Reference):
Overall Length: Customized based on span
Overall Width: Customized based on span and end carriage design
Maximum Wheel Load: 225 - 284 kN (depending on span configuration)
Operating Environment:
Working Temperature: -20°C to +40°C
Location: Indoor use (standard)
Not Applicable For: Explosive, flammable, or highly corrosive environments
Overall Length: Customized based on span
Overall Width: Customized based on span and end carriage design
Maximum Wheel Load: 225 - 284 kN (depending on span configuration)
Operating Environment:
Working Temperature: -20°C to +40°C
Location: Indoor use (standard)
Not Applicable For: Explosive, flammable, or highly corrosive environments
Customization Options
- Span length (customizable per facility rail center distance)
- Lifting height (customizable per facility requirements)
- Control mode (pendant, remote, or cabin)
- Travel speeds (standard or VFD-controlled for precise positioning)
- Rail type selection
- Special coatings for specific environments
Product Image
Key Features
- Dual Hoist Configuration: Main 32t hoist for heavy loads plus auxiliary 5t hoist for lighter lifting tasks, improving operational efficiency.
- High Load Capacity: Designed for 32-ton lifting capacity, suitable for heavy industrial applications including steel mills and manufacturing plants.
- Cost-Effective Single Girder Design: Lower initial investment compared to double girder cranes while still delivering robust lifting performance.
- Smooth Operation: Tapered brake motor ensures smooth starting and braking; VFD optional for precise speed control.
- Easy Maintenance: Modular design allows easy access to major components for servicing and inspection.
- Safety Compliance: Designed and manufactured in accordance with international standards including FEM, DIN, and ISO.
