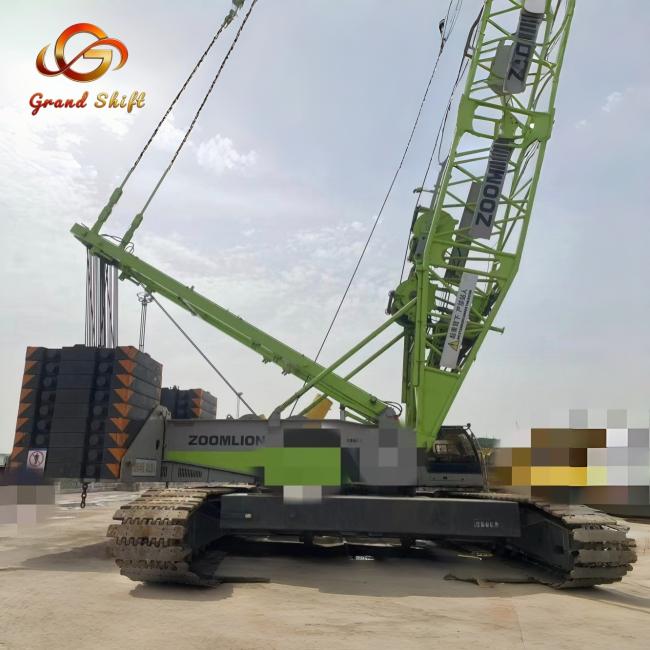

Used 2020 Zoomlion ZCC3000T 300 Ton Crawler Used Crane with 247kW Weichai Engine and 93m Main Boom
Price:
940000-1100000USD
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
Zoomlion
Product Description
Full Technical Specifications

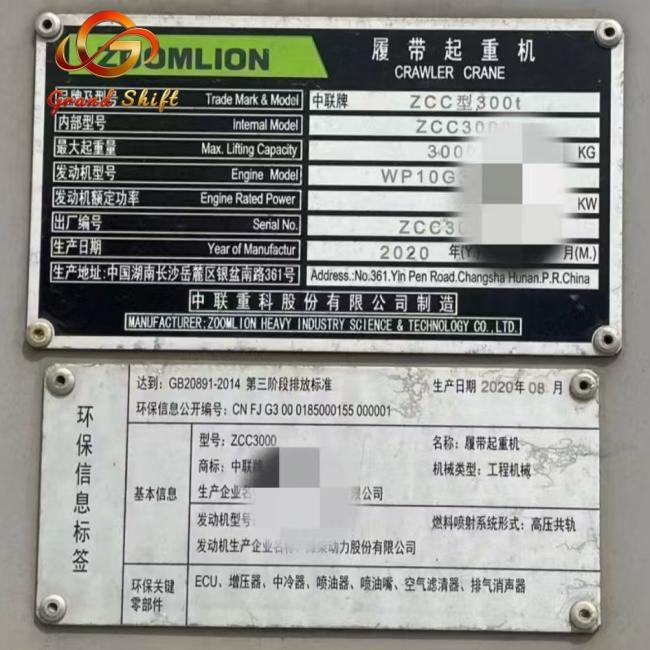

1. Basic Machine Information
| Item | Specification |
|---|---|
| Brand | Zoomlion (中联牌) |
| Model | ZCC3000T |
| Type | 300 Ton Crawler Crane |
| Condition | Used / Second Hand (Good Working Condition) |
| Year of Manufacture | 2020 |
| Total Operating Weight | 242 Ton (with 260t hook) |
| Maximum Rated Lifting Capacity | 300 Ton (t) |
| Maximum Lifting Moment | 1500 kN·m |
| Average Ground Specific Pressure | 0.142 MPa |
| Manufacturer | Zoomlion Heavy Industry Science & Technology Co., Ltd. |
| Product Identification Code (PIN) | ZCC3000 (Partial) |
2. Engine System (Weichai Version - Standard Configuration)
| Parameter | Specification | Unit |
|---|---|---|
| Engine Model | Weichai WP10G336E344 | - |
| Engine Type | 6-cylinder, In-line, Turbocharged, High-pressure Common Rail Diesel | - |
| Rated Power / Rated Speed | 247 @ 1900 | kW/rpm |
| Rated Horsepower | 336 HP | - |
| Maximum Torque / Speed | 1550 @ 1400 | N·m/rpm |
| Emission Standard | China III / Euro III (GB20891-2014) | - |
2.1 Engine System (Coms Version - Optional for Export)
| Parameter | Specification | Unit |
|---|---|---|
| Engine Model | Coms QSL9-C305 (Cums replaced as required) | - |
| Rated Power / Rated Speed | 227 @ 2000 | kW/rpm |
| Maximum Torque / Speed | 1505 @ 1400 | N·m/rpm |
| Emission Standard | EPA Tier III / Euro III | - |

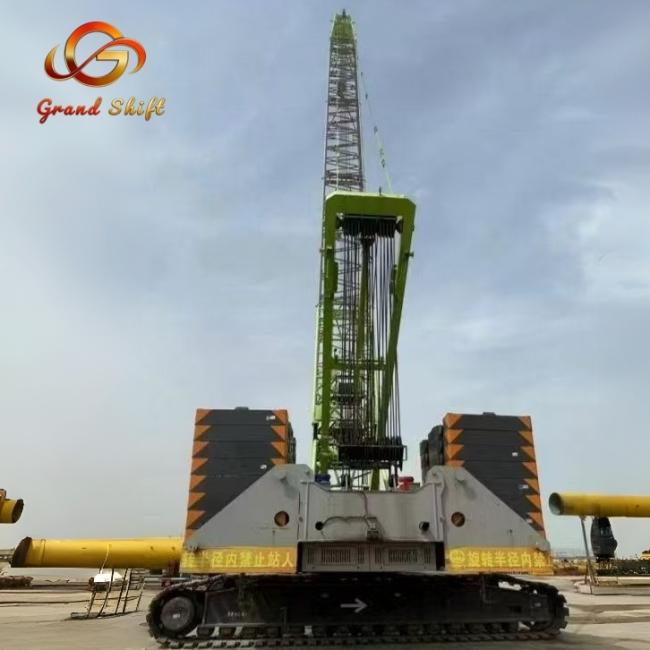

3. Lifting & Boom System Parameters
| Item | Specification | Unit |
|---|---|---|
| Main Boom Length Range | 24 ~ 93 | m |
| Light Main Boom Length Range | 67.5 ~ 106.5 | m |
| Fixed Auxiliary Boom Length Range | 9 ~ 36 | m |
| Luffing Auxiliary Boom Length Range | 24 ~ 66 | m |
| Maximum Lifting Height (Main Boom) | 93 | m |
| Maximum Lifting Height (Main+Light Boom) | 106.5 | m |
| Main Boom Maximum Lifting Capacity × Radius | 300 × 5 | t×m |
| Fixed Auxiliary Boom Maximum Lifting Capacity × Radius | 130 × 9 | t×m |
| Fixed Auxiliary Boom Installation Angle | 10°, 20°, 30° | ° |
| Main Boom Working Angle | 65°, 75°, 85° | ° |
| Main Winch Maximum Lifting Speed | 120 | m/min |
| Auxiliary Winch Maximum Lifting Speed | 116 | m/min |
| Main Luffing Winch Speed | 2 × 50 | m/min |
| Maximum Slewing Speed | 0 ~ 1 | rpm |

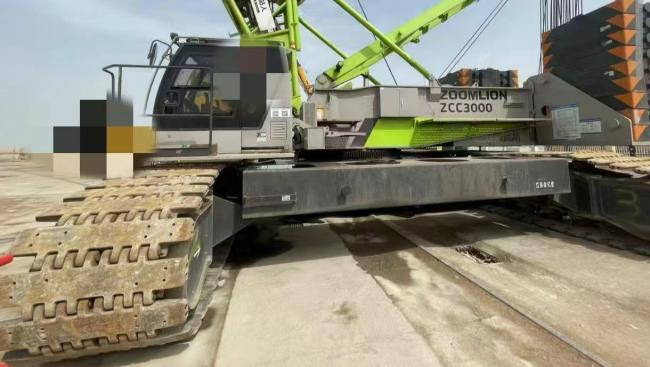

4. Travel & Chassis Parameters
| Item | Specification | Unit |
|---|---|---|
| Travel Speed | 0 ~ 1 | km/h |
| Maximum Single Piece Transport Weight | 43.5 | t |
| Maximum Transport Dimensions (L×W×H) | 13.7 × 3.0 × 3.22 | m |
| Transport Width | < 3.0 | m |
| Rear Counterweight | 100 | t |
| Central Counterweight | 32 | t |
| Track Gauge × Track Center Length × Track Shoe Width | 7000 × 8530 × 1200 | mm |
5. Overall Dimension & Capacity
| Item | Specification | Unit |
|---|---|---|
| Fuel Tank Capacity | 700 | L |
| Working Device | Heavy-duty Slewing Bearing, High-strength Steel Boom | - |

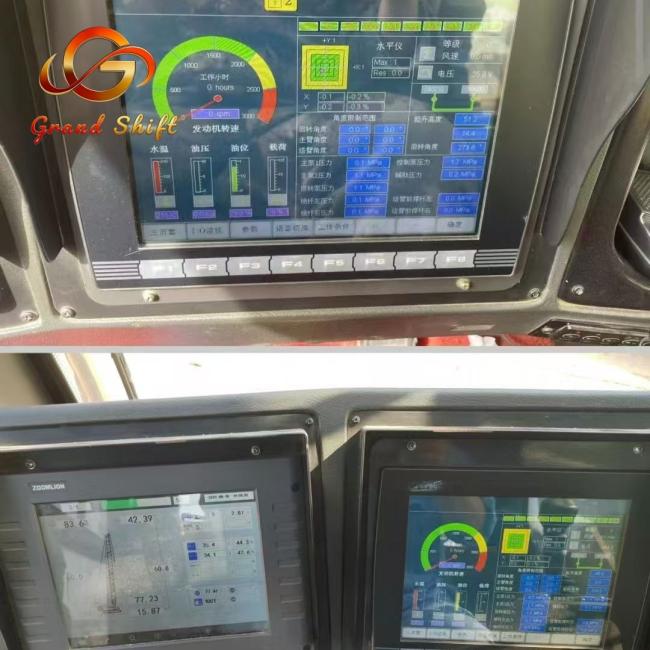

| Control System | Zoomlion Intelligent Control System + Load Moment Indicator (LMI) | - |
| Safety Features | Overload Protection, Emergency Stop, Real-time Monitoring | - |
6. Optional Attachments & Working Modes
- Shield Construction Mode: Main hook 283.6t @ 6m (with 120t rear counterweight)
- Front Dozer Blade (Optional)
- Rear Ripper (Optional)
- Automatic Leveling System (GPS/GNSS) (Optional)
- Five Working Configurations: Main boom, Light boom, Fixed jib, Luffing jib, Shield mode
7. Product Features
- Powerful & Reliable: Equipped with 247kW Weichai high-torque engine, strong power reserve, low fuel consumption, and stable performance under heavy load.
- Modular Design: Host self-loading/unloading and airborne boom installation; synchronized rope threading and mast jacking ensure higher assembly efficiency than competitors.
- Cost-effective: Fixed/luffing jib and shield auxiliary boom top sections are universal with standard sections, reducing purchase costs and improving boom utilization.
- High Transportability: Narrow transport width (<3m) ensures excellent road passability, minimizing transportation costs and difficulties.
- Easy Maintenance: Most parts are interchangeable with other Zoomlion crawler cranes, ensuring convenient access to spare parts and reducing downtime.
![]()
![]()
![]()
![]()
![]()
-
