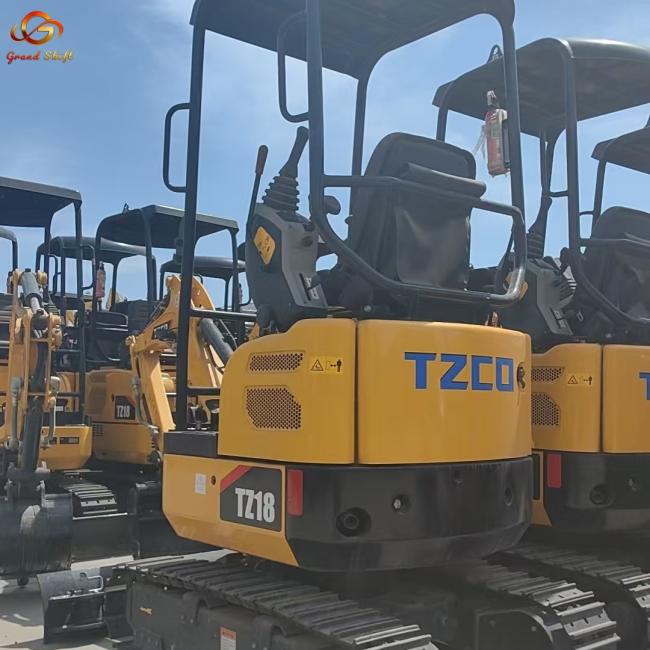

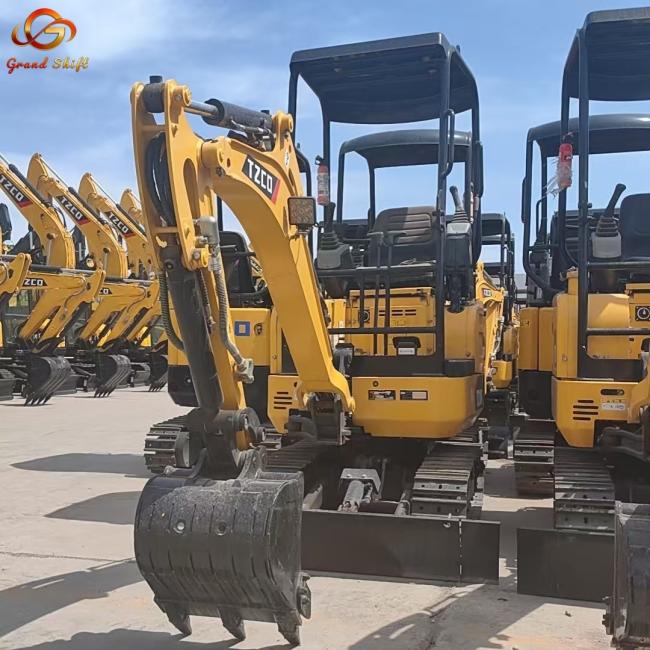

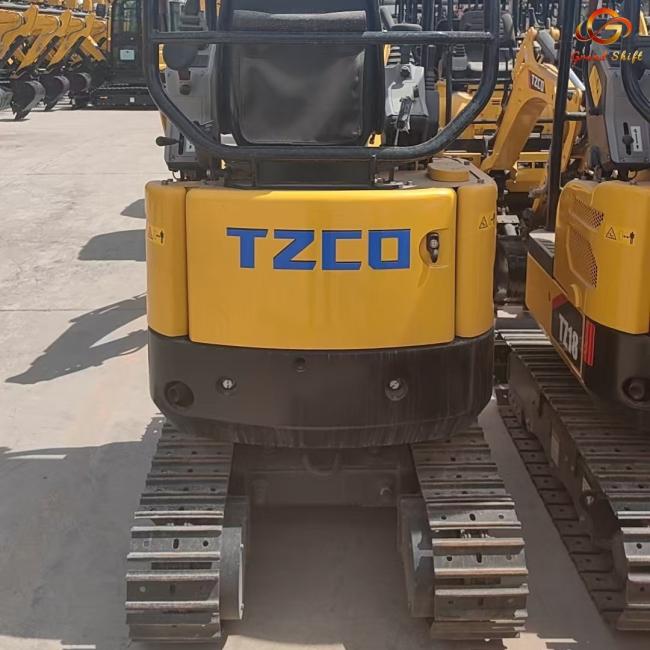

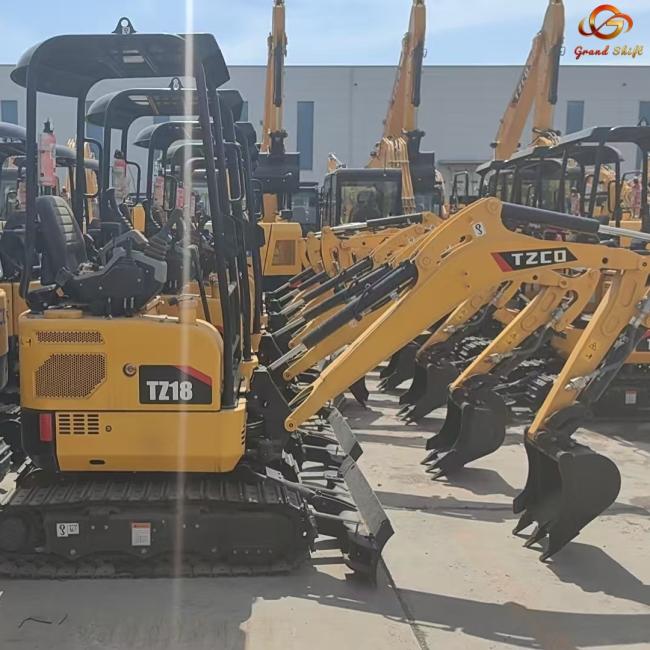

TZ18 New Crawler Hydraulic Excavator with 1950kg 14.6kW Rated Power 0.05 m³ Bucket Capacity
Price:
95,00.00-11,200.00 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
TZ
Product Description
TZ18 Crawler Hydraulic Excavator - High Performance Construction Equipment
Working Ranges
| Item | Parameter | Value (mm) |
|---|---|---|
| a | Max. digging height | 3565 |
| b | Max. dumping height | 2460 |
| c | Max. digging depth | 2350 |
| e | Max. vertical digging depth | 2050 |
| f | Max. digging reach on ground | 3935 |
| g | Min. swinging radius | 1530 |
Dimensions
| Item | Parameter | Value (mm) |
|---|---|---|
| A | Overall length | 3560 |
| B | Overall width | 990/1280 |
| C | Overall height | 2360 |
| D | Overall width of upper structure | 990 |
| E | Track length | 1585 |
| F | Chassis width | 990/1280 |
| G | Track shoe width | 230 |
| H | Track length on ground | 1230 |
| I | Track gauge | 760/1050 |
| J | Counterweight clearance | 495 |
| K | Min. ground clearance | 150 |
| L | Min. tail swinging radius | 640 |
| M | Track height | 395 |
Key Specifications
| Parameter | Unit | Value |
|---|---|---|
| Product model | -- | TZ18 |
| Operating weight | kg | 1950 |
| Bucket capacity | m³ | 0.05 |
Motor Specifications
| Parameter | Unit | Value |
|---|---|---|
| Engine Brand | -- | Yanmar |
| Direct injection | -- | ✓ |
| 4-stroke | -- | ✓ |
| Water cooled | -- | ✓ |
| No. of cylinders | -- | 3 |
| Rated power | kW/rpm | 14.6/2400 |
| Displacement | L | 1.267 |
Oil Capacity
| Parameter | Unit | Value |
|---|---|---|
| Fuel tank | L | 21 |
| Hydraulic tank | L | 15 |
| Engine oil | L | 3.4 |
Hydraulic System
| Parameter | Unit | Value |
|---|---|---|
| Main pump rated flow | L/min | 64 |
| Pressure-main valve | MPa | 21.6 |
| Pressure-travel system | MPa | 21.6 |
| Pressure-swing system | MPa | 11 |
| Pressure-pilot system | MPa | 3.9 |
Main Performance
| Parameter | Unit | Value |
|---|---|---|
| Travel speed (high/low) | km/h | 4.2/2.1 |
| Swing speed | r/min | 9.1 |
| Gradeability | ° | 30 |
| Ground pressure | kPa | 32.6 |
| Bucket digging force | kN | 15.2 |
| Arm digging force | kN | 8.8 |
| Max. traction force | kN | 19.5 |
Standard Configuration
| Parameter | Unit | Value |
|---|---|---|
| Boom length | mm | 1825 |
| Arm length | mm | 950 |
| Bucket capacity | m³ | 0.05 |
Excavator Parts
