Chinese Brand TZ60W New Wheeled Hydraulic Excavator with 60kg 35.9kW 0.18m³ Bucket Capacity
Price:
50,000.00-55,000.00 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
TZ
Product Description

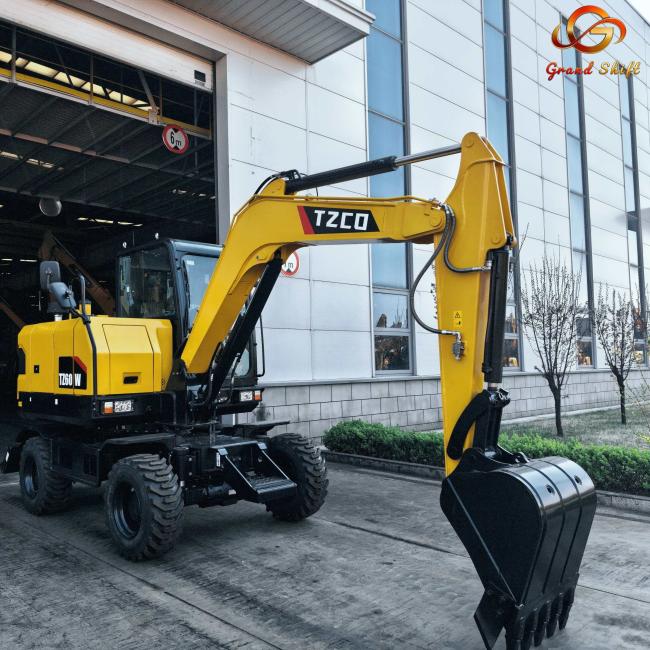

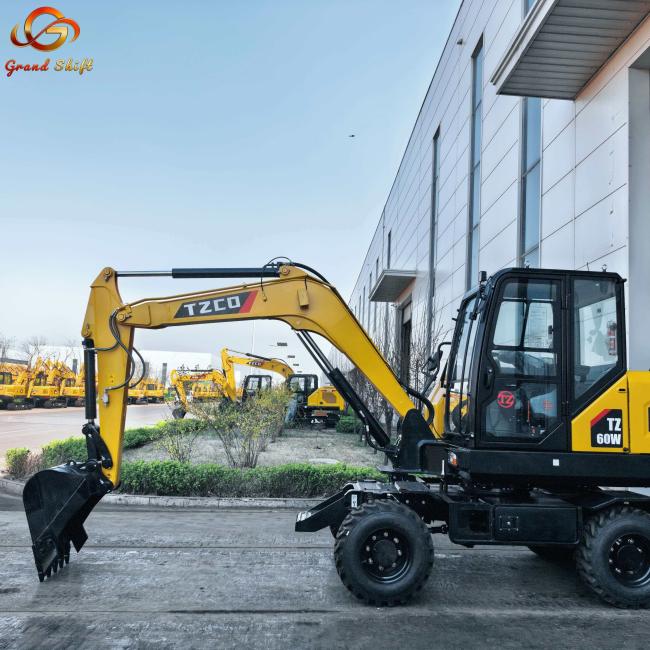

TZ60W Wheeled Hydraulic Excavator - High Performance Construction Equipment
Working Ranges
| Item | Parameter | Value (mm) |
|---|---|---|
| a | Max. digging height | 5901 |
| b | Max. dumping height | 4181 |
| c | Max. digging depth | 3469 |
| e | Max. vertical digging depth | 2497 |
| f | Max. digging reach on ground | 6166 |
| g | Min. swinging radius | 2443 |
Dimensions
| Item | Parameter | Value (mm) |
|---|---|---|
| A | Overall length | 6133 |
| B | Overall width | 1925 |
| C | Overall height | 2880 |
| D | Overall width of upper structure | 1894 |
| E | Track length | 3625 |
| F | Chassis width | 1925 |
| G | Track shoe width | 307 |
| H | Track length on ground | 2100 |
| I | Track gauge | 1600 |
| J | Counterweight clearance | 990 |
| K | Min. ground clearance | 282 |
| L | Min. tail swinging radius | 1650 |
| M | Tire specifications quantity | (12-16.5-12PR)*4 |
Key Specifications
| Parameter | Unit | Value |
|---|---|---|
| Product model | -- | TZ60W |
| Operating weight | kg | 5995 |
| Bucket capacity | m³ | 0.18 |
Motor Specifications
| Parameter | Unit | Value |
|---|---|---|
| Engine Brand | -- | Yanmar/Yuchai |
| Direct injection | -- | ✓ |
| 4-stroke | -- | ✓ |
| Water cooled | -- | ✓ |
| No. of cylinders | -- | 4 |
| Rated power | kW/rpm |
35.9/2000 (Yanmar) 36.8/2200 (Yuchai) |
| Displacement | L | 3.054/2.982 |
Oil Capacity
| Parameter | Unit | Value |
|---|---|---|
| Fuel tank | L | 130 |
| Hydraulic tank | L | 85 |
| Engine oil | L | 12 |
Hydraulic System
| Parameter | Unit | Value |
|---|---|---|
| Main pump rated flow | L/min | 138 |
| Pressure-main valve | MPa | 24 |
| Pressure-travel system | MPa | 24 |
| Pressure-swing system | MPa | 24 |
| Pressure-pilot system | MPa | 3.8 |
Main Performance
| Parameter | Unit | Value |
|---|---|---|
| Travel speed (high/low) | km/h | 23/10 |
| Swing speed | r/min | 10 |
| Gradeability | ° | 30 |
| Ground pressure | kPa | / |
| Bucket digging force | kN | 43 |
| Arm digging force | kN | 32 |
| Max. traction force | kN | 31 |
Standard Configuration
| Parameter | Unit | Value |
|---|---|---|
| Boom length | mm | 3000 |
| Arm length | mm | 1600 |
| Bucket capacity | m³ | 0.18 |
