XCMG XE380DK 38 ton Class Crawler Excavator with 214 kW Engine and 292 kN Digging Force
The XCMG XE380DK is a 38-ton class heavy-duty crawler hydraulic excavator powered by the Cums QSL9 turbocharged engine. With an operating weight of 38,200 kg and a bucket capacity range of 1.9–2.1 m³, this model delivers exceptional digging force, high efficiency, and reliable performance. It is widely used in mining, large-scale infrastructure projects, earthmoving, and material handling applications.
| Parameter | Value |
|---|---|
| I. Basic Specifications | |
| Model | XE380DK |
| Operating Weight | 38,200 kg |
| Bucket Capacity | 1.9 – 2.1 m³ |
| Boom Length | 6,400 mm |
| Arm Length | 2,900 mm |
| Track Shoe Width | 600 mm |
| Ground Pressure | 69 kPa |
| Gradeability | 35% |

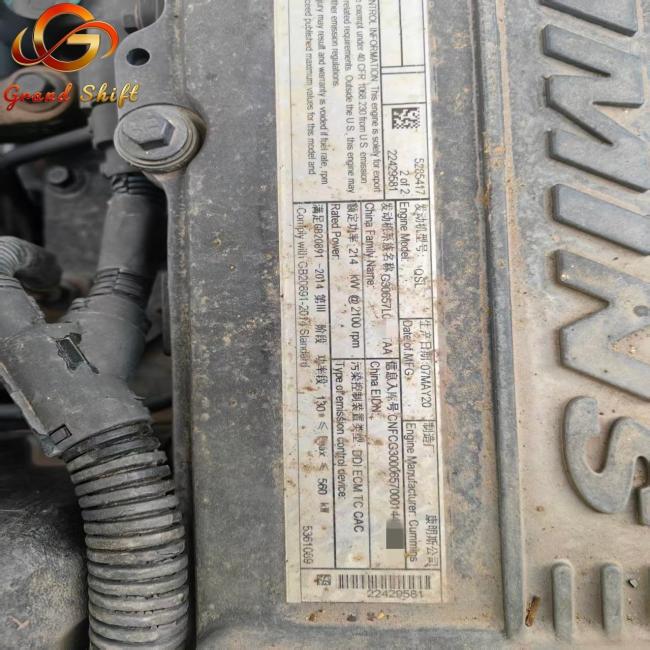

| II. Engine System (Cums QSL9) | |
| Engine Type | 6-cylinder in-line, turbocharged, air-to-air intercooled |
| Rated Power | 214 kW @ 2,100 rpm |
| Maximum Torque | 1,344 N·m @ 1,300 rpm |
| Displacement | 8.9 L |
| Emission Standard | China III / Euro III |
| III. Performance Parameters | |
| Bucket Digging Force | 292 kN |
| Arm Digging Force | 209 kN |
| Maximum Drawbar Pull | 285 kN |
| Maximum Digging Radius | 10,968 mm |
| Maximum Digging Depth | 7,147 mm |
| Maximum Digging Height | 10,508 mm |
| Maximum Dumping Height | 7,300 mm |
| Travel Speed (High/Low) | 5.6 / 3.3 km/h |
| Swing Speed | 9.6 rpm |
| IV. Hydraulic System | |
| System Type | Electronically controlled positive flow |

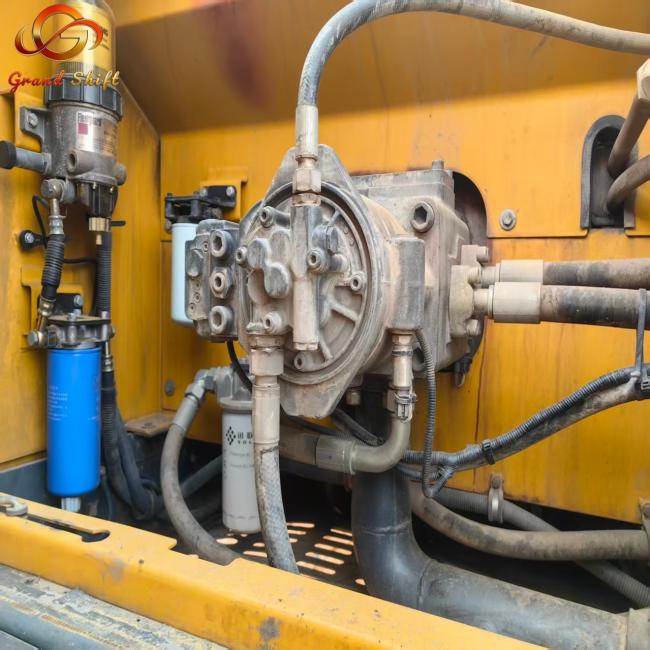

| Main Pump Type | Dual variable displacement piston pump |
| System Pressure | 34.3 MPa |
| Swing Brake | Wet multi-disc |
| V. Overall Dimensions (mm) | |
| Overall Length (Transport) | 11,400 mm |
| Overall Width (Transport) | 3,225 mm |
| Overall Height (Transport) | 3,715 mm |
| Track Gauge | 2,590 mm |
| Minimum Ground Clearance | 505 mm |
| Rear Swing Radius | 3,450 mm |
| VI. Fluid Capacities | |
| Fuel Tank Capacity | 660 L |
| Hydraulic Tank Capacity | 350 L |
| Engine Oil Capacity | 30 L |
| VII. Undercarriage System | |
| Carrier Rollers (per side) | 2 units |
| Track Rollers (per side) | 9 units |
| Track Shoes (per side) | 51 units |
| Travel Reduction | Planetary gear |
- Powerful Engine Performance
Powered by the Cums QSL9 engine delivering 214 kW at 2,100 rpm and a maximum torque of 1,344 N·m at 1,300 rpm, providing strong power reserves for demanding applications.
- High Digging Force
Bucket digging force of 292 kN and arm digging force of 209 kN enable efficient excavation in hard soil and rock conditions.
- Optimized Working Range
Maximum digging radius of 10,968 mm, maximum digging depth of 7,147 mm, and maximum dumping height of 7,300 mm for excellent reach and loading capability.
- Advanced Hydraulic System
Electronically controlled positive flow hydraulic system with dual variable piston pumps operating at 34.3 MPa ensures fast response, smooth compound movements, and high efficiency.
- Robust Undercarriage
Heavy-duty undercarriage with 9 track rollers per side and 51 track shoes per side provides excellent stability and durability in tough terrain.
- Large Capacity Fuel Tank
660 L fuel tank supports extended working hours, reducing refueling downtime and improving productivity.

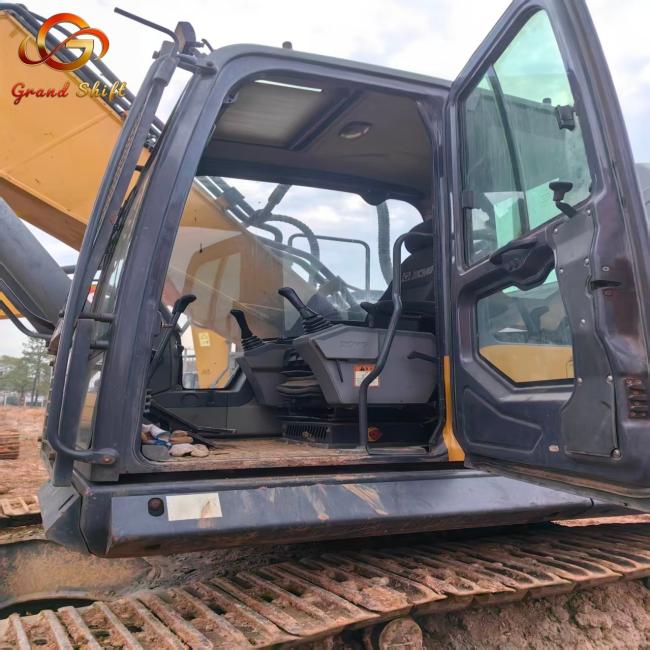

- Comfortable and Safe Operation
Spacious cab with excellent visibility, ergonomic controls, wet multi-disc swing brake, and low noise levels reduce operator fatigue and enhance safety.
- Mining and quarry operations
- Large-scale infrastructure projects
- Heavy earthmoving and excavation
- Road and bridge construction
- Port and terminal material handling
|
|
|
|
|
|
|
|
