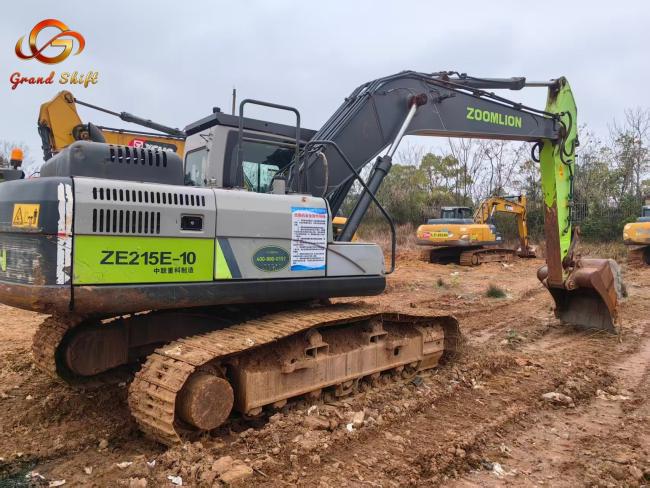

Zoomlion ZE215E-10 hot selling 21 ton crawler hydraulic excavator
Zoomlion ZE215E-10 is a 21-ton crawler hydraulic excavator belonging to the E-series product line, positioned in the medium-sized excavator market (13-30 ton class). This model is equipped with a Cums turbocharged engine and features a newly designed hydraulic system and electronic control system, delivering strong power output, low fuel consumption, and high operational efficiency. The machine adopts a backhoe configuration and is suitable for various engineering projects including construction, road building, water conservancy, electric power, and mining.
| General Parameters | |
| Model | ZE215E-10 |
| Model Series | 215 |
| Tonnage Class | 21-ton / Medium Excavator (13-30 tons) |
| Operating Weight | 21,700 - 22,100 kg |
| Bucket Capacity | 0.9 - 1.1 m³ (standard 1.0 m³) |
| Bucket Type | Backhoe |
| Undercarriage | Crawler |
| Application | General Purpose |
| Engine System | |
| Engine Brand | cum |
| Engine Model | QSB7 / B5.9-C |
| Rated Power | 124 kW @ 2050 rpm |
| Displacement | 6.7 L |
| Emission Standard | China III / Stage IIIA |
| Performance Parameters | |
| Travel Speed (High/Low) | 5.5 / 3.3 km/h |
| Swing Speed | 11.5 rpm |
| Bucket Digging Force | 147 - 160 kN |
| Arm Digging Force | 105 - 115 kN |
| Maximum Drawbar Pull | 192 kN |
| Dimensions (Transport) | |
| Overall Length | 9555 mm |
| Overall Width | 2990 mm |
| Overall Height | 3085 mm |
| Rear Swing Radius | 2800 - 2840 mm |
| Track Gauge | 2390 mm |
| Track Length (on ground) | 3460 mm |
| Working Range | |
| Maximum Digging Radius | 9870 mm |
| Maximum Digging Radius at Ground Level | 9690 mm |
| Maximum Digging Depth | 6580 mm |
| Maximum Digging Height | 9720 mm |
| Maximum Dumping Height | 6895 mm |
- Engine: Equipped with Cums turbocharged engine, delivering strong power output, low noise, and low fuel consumption
- Hydraulic System: Newly designed for optimal power matching between engine and main pump; main pump flow automatically adjustable to reduce power loss
- Electronic Control System: Advanced electronic control system with standard 9-language dashboard interface (Chinese, English, French, Russian, Spanish, Portuguese, etc.) to meet operating requirements of different countries and regions
- Working Capability: Large digging range, long bucket service life, high undercarriage load capacity, good stability
- Machine Coordination: Smooth and coordinated movements for comfortable operation
Ambient Temperature: -20℃ to +40℃
Applicable Environment: General outdoor working conditions
Not Applicable For: Explosive gas/dust environments (explosion-proof type required)
- Building Construction
- Road Construction
- Water Conservancy Projects
- Electric Power Projects
- Mining Operations
- Natural Gas Pipeline Laying
- Military Engineering
![]()
