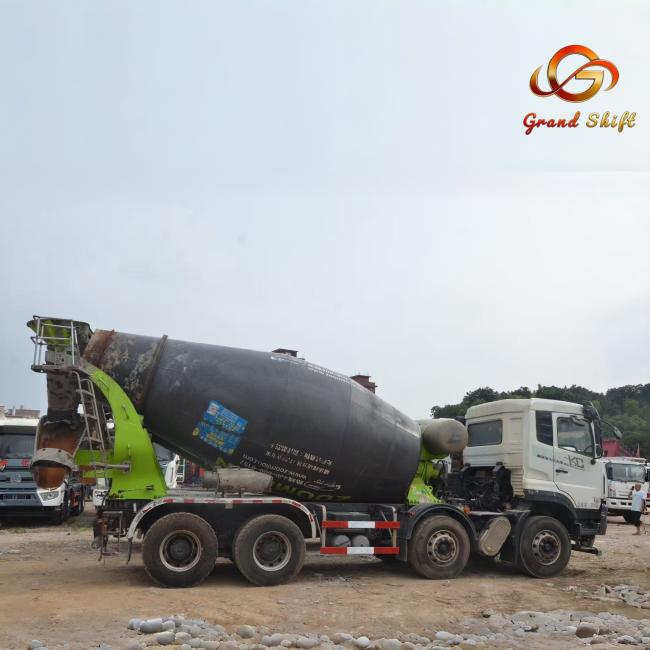

Used Zoomlion ZLJ5311GJBB7F Concrete Mixer Truck 7.82 m³ Capacity with Weichai WP8.350E61A Engine
The Zoomlion ZLJ5311GJBB7F is an 8×4 heavy-duty concrete mixer truck powered by the Weichai WP8.350E61A engine paired with a Fast 10-speed transmission, delivering a mature and reliable powertrain. The optimized mixing drum design provides a mixing capacity of 7.82 m³ with a drum inclination angle of 14.8°, achieving a discharge residue rate as low as 2%. This model is suitable for concrete transportation at commercial batching plants, construction sites, and infrastructure projects, meeting overseas market demands for efficient and durable mixer trucks.
【Key Specifications】
| Parameter | Value |
|---|---|
| I. Vehicle Basic Parameters | |
| Model Code | ZLJ5311GJBB7F |
| Drive Type | 8×4 |
| Gross Vehicle Weight | 31000 kg |
| Curb Weight | 13800 kg |
| Rated Load Capacity | 17070 kg |
| Overall Dimension (L×W×H) | 9810 × 2550 × 3960 mm |
| Wheelbase | 1800+3000+1400 / 1800+3175+1400 mm |
| Front Track Width | 2015 mm |
| Rear Track Width | 1850 mm |
| Approach/Departure Angle | 16° / 17° |
| Maximum Speed | 89 km/h |
| Number of Tires | 12 units |
| Tire Specification | 11.00R20 18PR / 12R22.5 18PR |
| Emission Standard | China VI |
| II. Engine Parameters | |
| Engine Model | WP8.350E61A (Weichai) |
| Engine Type | In-line 6-cylinder, water-cooled, turbocharged, intercooled |
| Displacement | 7.8 L |
| Rated Power | 252 kW (343 HP) @ 2200 rpm |
| Maximum Torque | 1400 N·m @ 1200-1600 rpm |
| III. Chassis and Drivetrain | |
| Chassis Model | SX1319MB6F1 (Shaanxi Auto) |
| Transmission | Fast 10-speed transmission |
| Cab | Semi-sleeper cab, 2-person capacity |
| Brake System | ABS + Exhaust brake |
| IV. Mixing Drum Parameters | |
| Mixing Capacity | 7.82 m³ |
| Maximum Drum Diameter | 2350 mm |
| Drum Length (including end plate) | 5615 mm |
| Drum Inclination Angle | 14.8° |
| Discharge Residue Rate | ≤ 2% |
| Water Supply Method | Pneumatic pressure |
| Water Tank Capacity | 400 L |
【Key Features】
1. Efficient Powertrain
Equipped with the Weichai WP8.350E61A engine featuring 7.8L displacement, rated power of 252 kW (343 HP), and maximum torque of 1400 N·m for strong power output. Paired with a Fast 10-speed transmission for high transmission efficiency and excellent fuel economy.
2. Optimized Mixing Performance
The mixing drum features a maximum diameter of 2350 mm, length of 5615 mm, and drum inclination angle of 14.8°, achieving a mixing capacity of 7.82 m³. Optimized mixing blades ensure excellent concrete uniformity with a discharge residue rate as low as 2%.
3. Strong Load Capacity
With a curb weight of 13800 kg, rated load capacity of 17070 kg, and gross vehicle weight of 31000 kg, supported by 12 tires for heavy-load transportation requirements.
4. Safe and Reliable
Standard ABS anti-lock braking system and exhaust brake provide stable and reliable braking performance. Maximum speed of 89 km/h meets highway transportation requirements.
5. Convenient Water Supply
Equipped with a 400 L large-capacity water tank and pneumatic water supply system for convenient and fast cleaning.
【Main Application Areas】
-
Commercial concrete batching plants
-
Building construction sites
-
Road and bridge projects
-
Infrastructure construction
