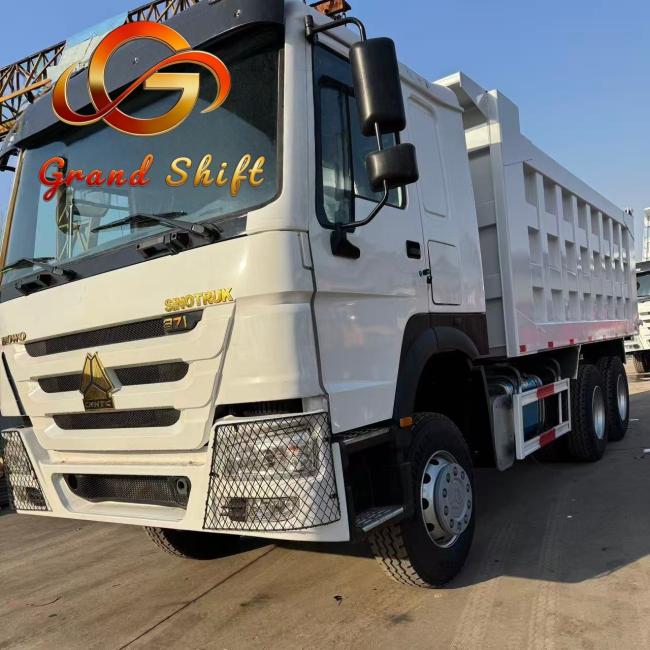

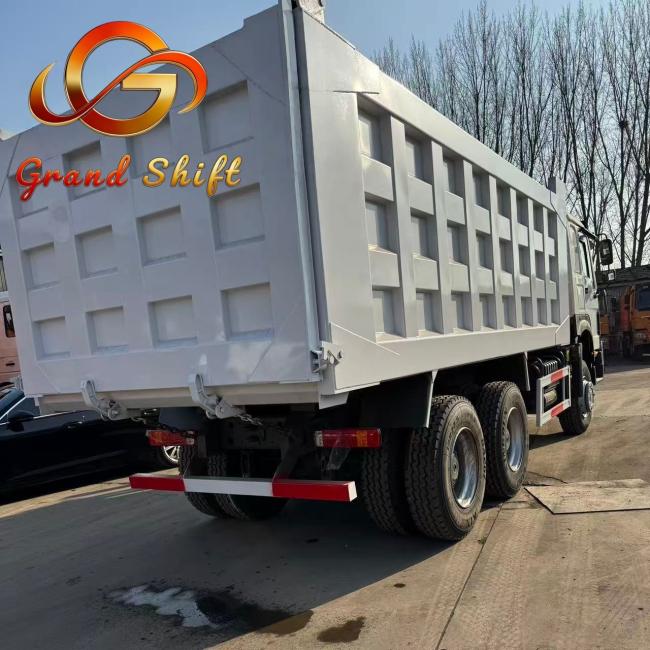

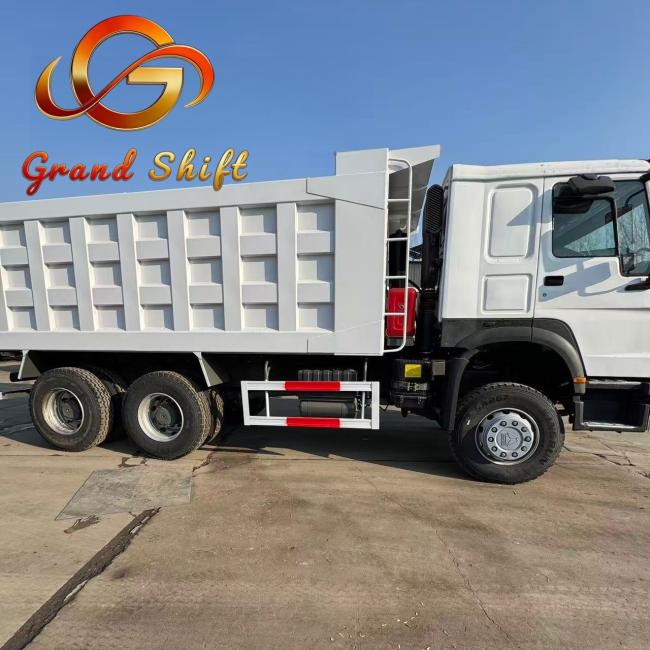

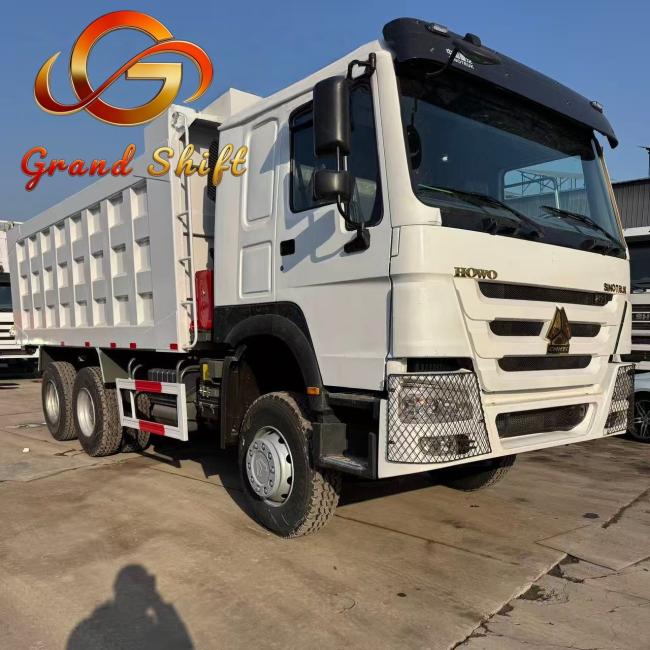

Second Hand Howo 371 Dump Truck With 371 HP Engine 20-40 Tons Load Capacity And 6x4 Drive Wheel
Price:
20000-35000 USD(contact us for detailed quotation)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
HOWO
Product Description
| Category | Specification |
|---|---|
| Model Identification | Model No.: ZZ3257N3847A Drive Type: 6×4 (3 axles, dual rear drive) Steering: Left-hand Drive (LHD, RHD optional) Emission Standard: Euro II (Euro III optional) |

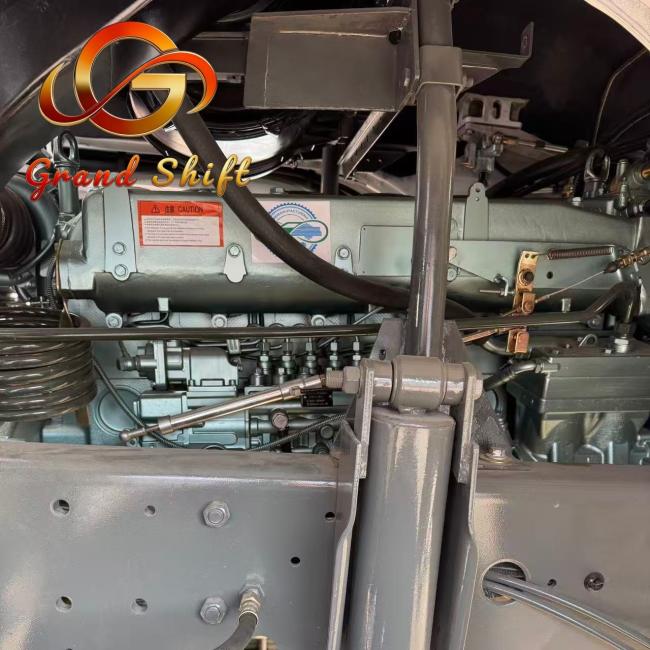

| Engine | Model: Sinotruk WD615.47 Type: 4-stroke, 6-cylinder in-line, water-cooled, turbocharged & intercooled diesel Displacement: 9.726 L Max Power: 371 HP (273 kW) @ 2200 rpm Max Torque: 1500 N·m @ 1200–1500 rpm Fuel: Diesel |
| Clutch & Transmission | Clutch: 430C diaphragm spring clutch, hydraulic with air assistance Transmission: HW19710 manual, 10 forward gears+2 reverse gears, with PTO |
| Axles & Suspension | Front Axle: HF9 series, 9-ton capacity, drum brakes Rear Axle: HC16 heavy-duty double-reduction axles, 2×16-ton capacity, ratio 5.73 Front Suspension: 10-leaf semi-elliptic spring+hydraulic shock absorbers Rear Suspension: 12-leaf semi-elliptic springs with bogie & stabilizer bar |
| Dimensions | Overall (L×W×H): 8545 × 2496 × 3445 mm Cargo Box (L×W×H): 5600 × 2300 × 1500 mm Volume: 19.32 CBM Wheelbase: 3800 mm Approach/Departure Angle: 19°/20° |
| Weight | Curb Weight: 12600 kg Gross Vehicle Weight (GVW): 25000 kg Payload Capacity: ~12400 kg |
| Tires & Fuel | Tire Size: 12.00R20 (12.00-20 optional), 1 spare tire Fuel Tank Capacity: 300 L |
| Brakes & Electrical | Brakes: Dual-circuit air brake, spring-loaded emergency/parking brake Electrical System: 24V DC, negative ground Starter: 7.5 kW Alternator: 28V Battery: 2 × 12V/165 Ah |

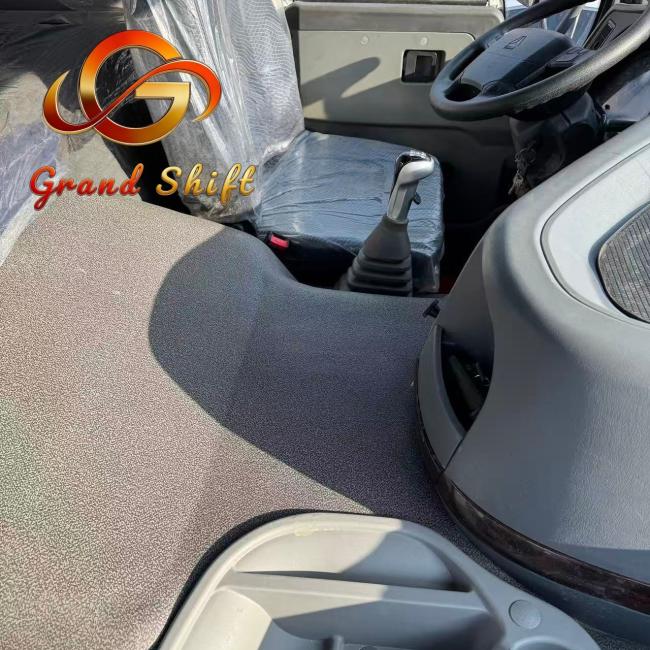

| Cab & Hydraulics | Cab: A7-W, 2 seats+1 sleeper, air conditioning, adjustable driver seat, air horn Lifting System: Hydraulic front lifting, full lifting time ≤ 20s, lowering time ≤ 15s |
| Performance | Max Speed: 75 km/h Gradeability: 36% Minimum Ground Clearance: 314 mm |
Quality & Warranty
- Quality Standard: ISO 9001, CE Certified (Optional)
- Warranty: 1 year or 2,000 operating hours (whichever comes first)
- Spare Parts Supply: 24/7 after-sales support, global spare parts warehouse
