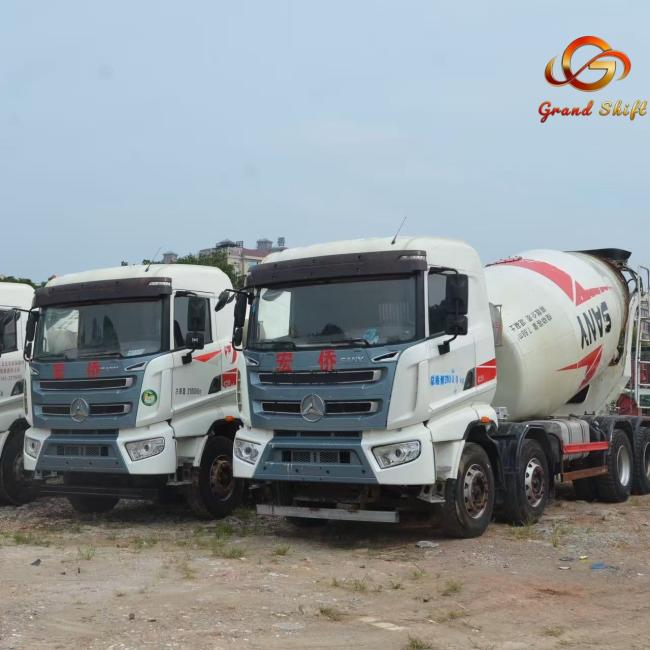

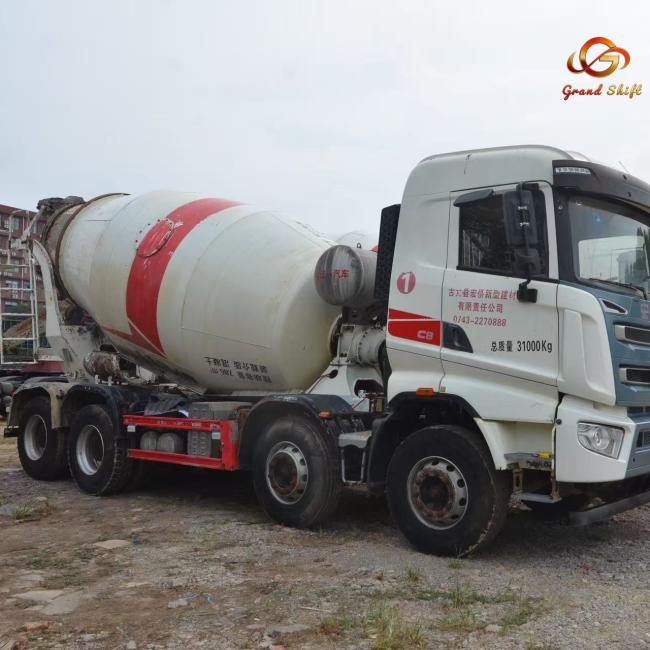

Sany SYM5311GJB1E6 Concrete Mixer Truck In Good Condition Second-hand
The Sany SYM5311GJB1E6 is an 8×4 heavy-duty concrete mixer truck built on Sany's self-developed SYM1317T1E chassis. Powered by a high-pressure common rail diesel engine paired with a Fast 9-speed transmission, this model delivers exceptional power output and fuel efficiency. With a mixing capacity of 6.5 m³ and a gross vehicle weight of 31,000 kg, this truck is engineered for reliable concrete transportation in large-scale construction projects, infrastructure development, and commercial batching plant operations.
| Parameter | Value |
|---|---|
| I. Vehicle Basic Parameters | |
| Model Code | SYM5311GJB1E6 |
| Chassis Model | SYM1317T1E |
| Brand | Sany |
| Drive Type | 8×4 |
| Gross Vehicle Weight | 31000 kg |
| Curb Weight | 14100 kg |
| Rated Load Capacity | 16770 kg |
| Overall Dimension (L×W×H) | 10300 × 2490 × 3985 mm |
| Wheelbase | 1700+3200+1300 / 1700+3150+1350 / 1700+3175+1350 mm |
| Front Track Width | 2048/2048, 2115/2115 mm |
| Rear Track Width | 1860/1860 mm |
| Front/Rear Overhang | 1480/2110, 1480/2085 mm |
| Approach/Departure Angle | 17° / 22° |
| Maximum Speed | 90 km/h |
| Number of Axles | 4 |
| Axle Load | 6500/6500/18000 (dual axle group) |
| Leaf Spring | 4/4/10, 4/4/12, 9/9/12, 9/9/10 (optional) |
| Number of Tires | 12 units |
| Tire Specification | 10.00R20, 11.00R20, 11R22.5, 12R22.5 |
| Fuel Type | Diesel |
| Emission Standard | China V (GB17691-2005, GB3847-2005) |
| Origin | Changsha, Hunan, China |

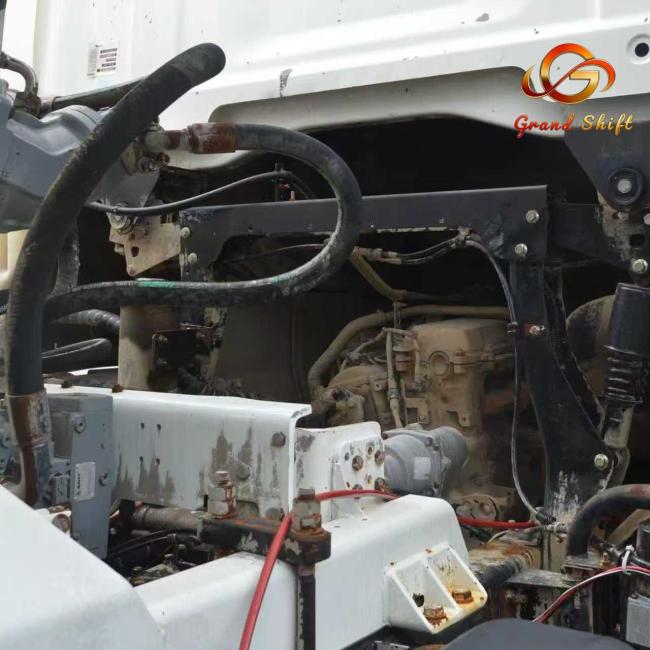

| II. Engine Parameters | |

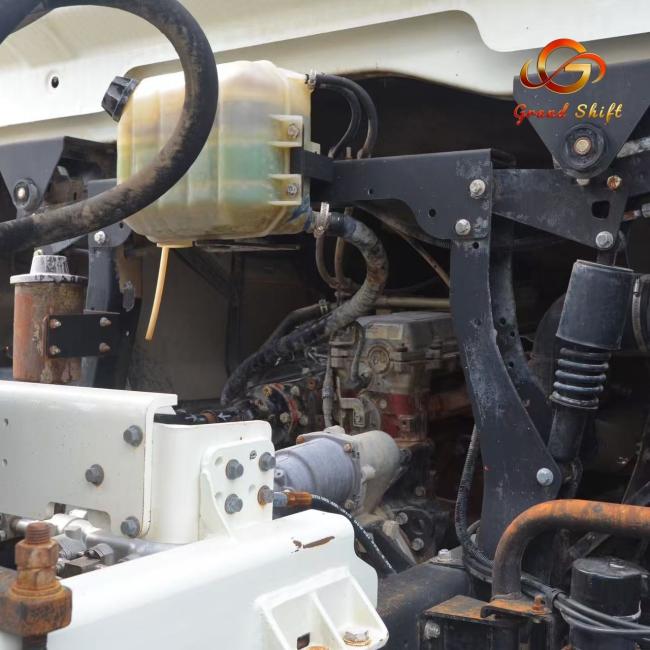

| Engine Type | In-line 6-cylinder, water-cooled, 4-stroke, high-pressure common rail |
| Displacement | 9.726 L |
| Rated Power | 257 kW (350 HP) @ 1900 rpm |
| Maximum Torque | 1488 N·m @ 1100 rpm |
| III. Transmission and Chassis | |
| Transmission Model | Fast 9JS150TA-B |
| Number of Gears | 9 speeds (8 forward + 1 reverse) |
| Front/Rear Axle | Hande / Shenli tandem axle |
| Brake System | ABS |

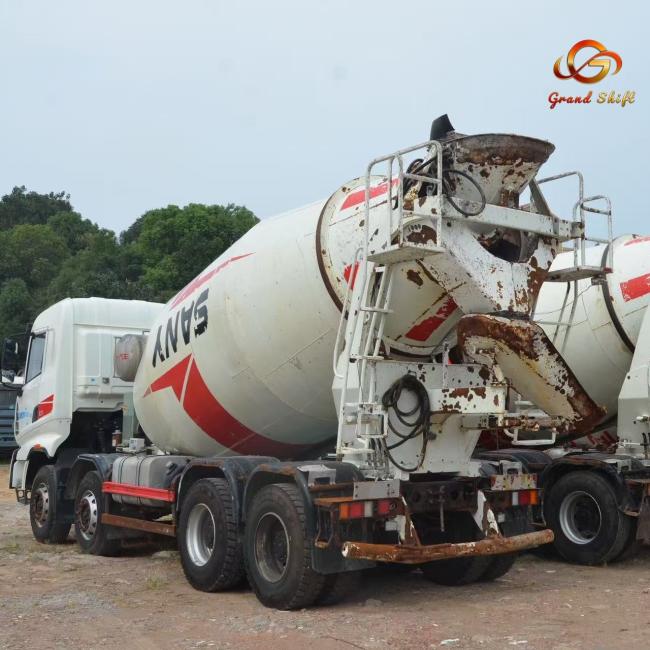

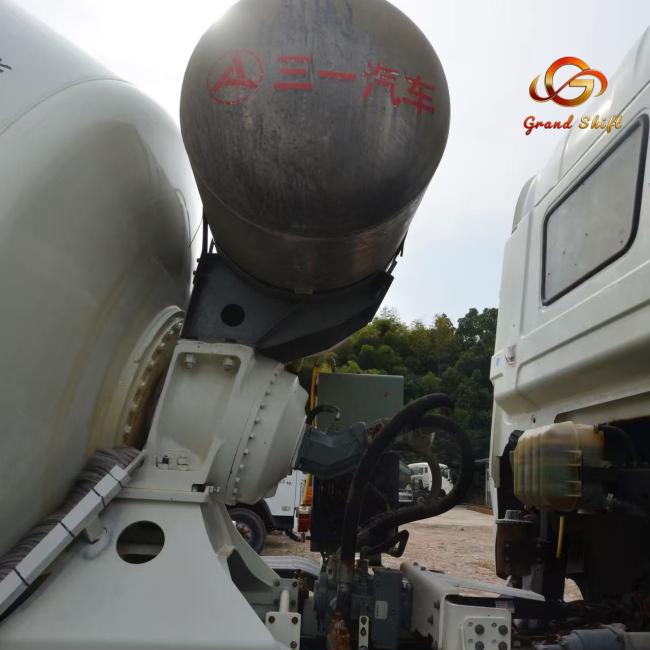

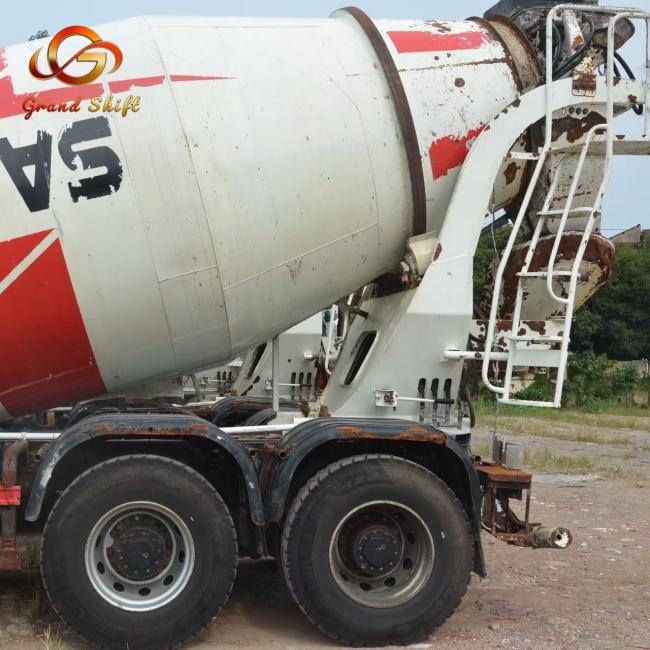

| IV. Mixing Drum Parameters | |
| Mixing Capacity | 6.5 m³ |
| Geometric Volume | Approx. 10 m³ |

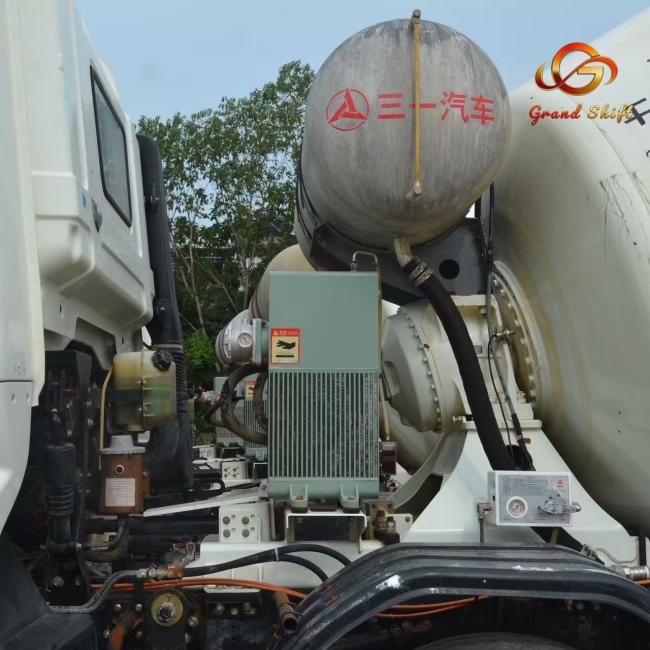

| Water Supply Method | Pneumatic pressure |
| Water Tank Capacity | Standard |
| Discharge Residue Rate | ≤ 2% |

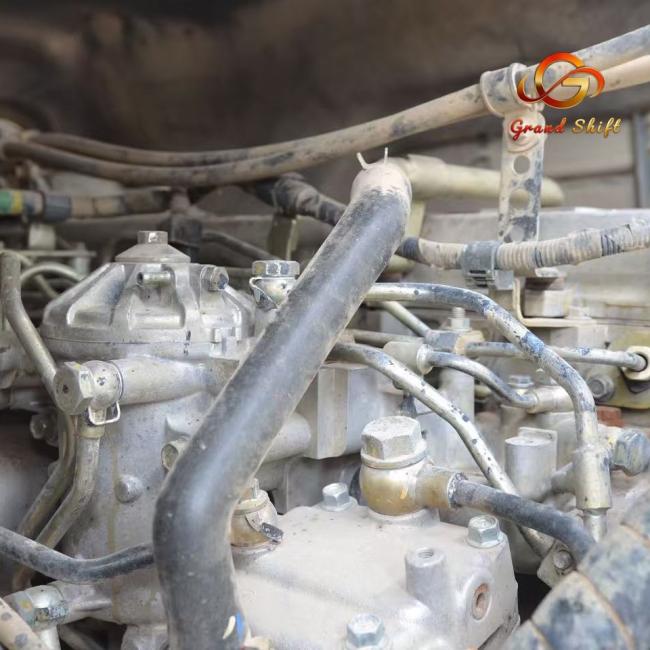

1. Powerful and Efficient Engine
Equipped with a high-pressure common rail diesel engine featuring 9.726L displacement, rated power of 257 kW (350 HP), and maximum torque of 1488 N·m at 1100 rpm, delivering exceptional power output for heavy-duty operations.2. Reliable Transmission System
Paired with a Fast 9JS150TA-B 9-speed transmission (8 forward gears + 1 reverse gear), providing smooth shifting, high transmission efficiency, and excellent adaptability
|
|
|
|
|
|
|
|
