Used SANY SCC800T 80 Ton Telescopic Boom Crawler Crane with 47m Main Boom for Heavy Duty Construction
SANY SCC800T (SCC800TB) 80 Ton Telescopic Boom Crawler Crane, 300t·m Max Lifting Moment, 47m Main Boom, for Construction & Wind Power Projects

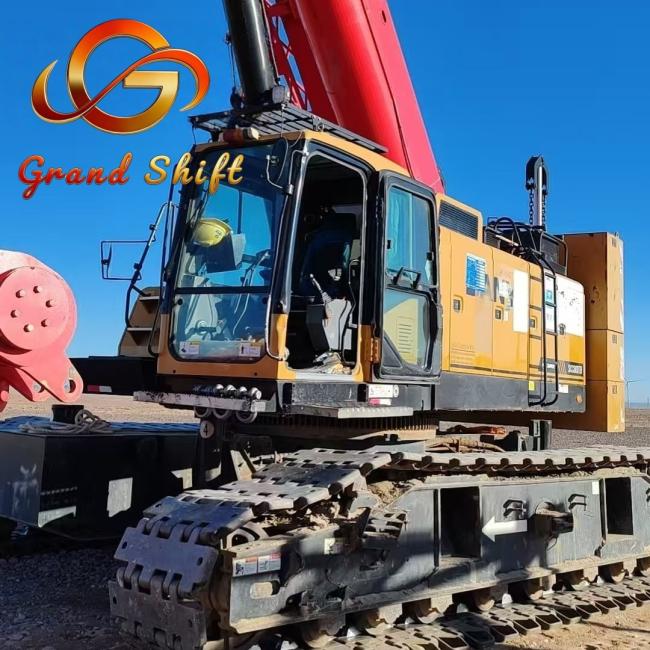

The SANY SCC800T (SCC800TB) is a high-performance 80-ton telescopic boom crawler crane, engineered for heavy-duty construction, wind power installation, infrastructure, and mining projects worldwide. It combines a powerful ISUZU diesel engine, 5-section telescopic boom (12.2m-47m), and robust crawler chassis to deliver exceptional lifting capacity, mobility, and reliability on tough terrains. With a maximum lifting moment of 300t·m and optional 17.5m fixed jib, it ensures efficient, safe, and flexible operations for complex lifting tasks.
| Category | Specification |
|---|---|
| Model & Basic Info | Model: SANY SCC800T (SCC800TB) Type: Telescopic Boom Crawler Crane Max Rated Lifting Capacity: 80 Tons Max Lifting Moment: 300 t·m Drive: Hydraulic Crawler Drive |
| Boom System | Main Boom: 5-section telescopic boom Main Boom Length Range: 12.2 m ~ 47 m Fixed Jib Length: 10.2 m / 17.5 m (Optional) Max Combined Length (Main Boom + Jib): 47 m + 17.5 m Boom Angle Range: -1.5° ~ 80° |
| Engine | Model: ISUZU 6HK1XKJC Type: 4-stroke, 6-cylinder in-line, water-cooled, turbocharged & intercooled diesel Rated Power: 212 kW (286 HP) @ 2000 rpm Emission Standard: Euro III / Tier 3 (Optional for higher standards) |
| Performance | Max Travel Speed: 2.5 km/h (High/Low 2-speed) Gradeability: 30% Min Turning Radius: 7.5 m Max Lifting Speed: 130 m/min (no load) Boom Telescoping Speed: 0~45 m/min |
| Chassis & Crawler | Crawler Shoe Width: 800 mm (Optional 900/1000 mm) Track Gauge: 3.8 m Ground Clearance: 450 mm Max Ground Pressure (Working): 0.11 MPa Max Ground Pressure (Transport): 0.09 MPa |
| Dimensions & Weight | Overall Transport Length: 14.8 m Overall Transport Width: 3.8 m Overall Transport Height: 3.3 m Total Operating Weight (Standard Configuration): ~85 Tons Counterweight: 28 Tons |
| Hydraulic System | Main Pump: Variable displacement axial piston pump Main Relief Valve Pressure: 34.3 MPa Hydraulic Tank Capacity: 600 L Control System: Load-sensitive proportional control |
| Cab & Safety | Cab: Panoramic enclosed cab, ROPS/FOPS certified Features: Air conditioning, adjustable suspension seat, 360° camera system, intelligent load moment limiter (LMI) Safety: Overload protection, emergency stop, anti-two-block device, boom angle indicator |
| Optional Configurations |
17.5m Fixed Jib |
