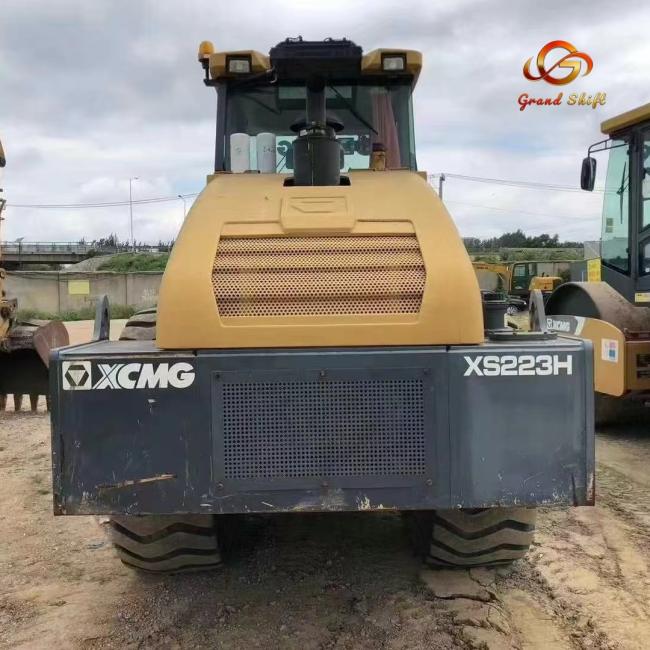

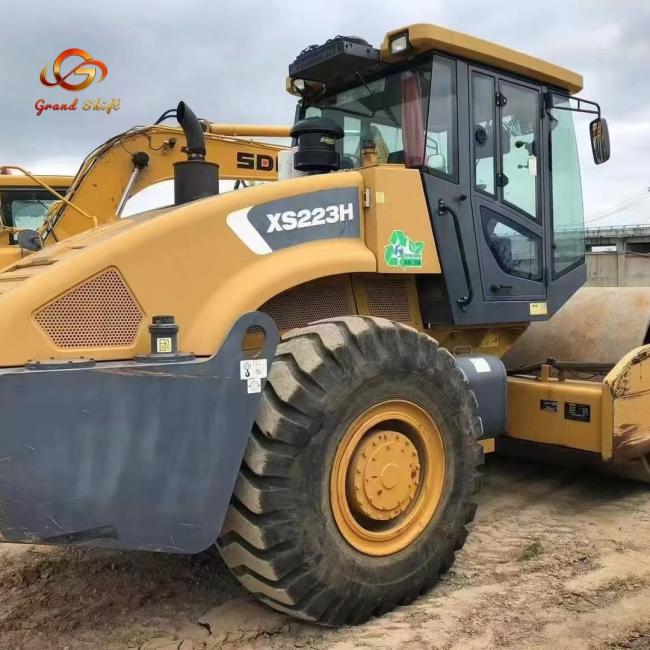

Used XCMG XS223H 22-ton Hydraulic Single Drum Compactor Roller 40kW Power
The XCMG XS223H is a 22-ton full hydraulic single drum vibratory roller designed for high-efficiency compaction applications. Powered by the Shangchai SC7H190G3 engine delivering 140 kW of power, this model features a fully hydraulic drive system with dual-frequency and dual-amplitude vibration for superior compaction performance. With excellent gradeability of 38% and stepless speed control, the XS223H is ideal for highway construction, airport runways, dam projects, and large-scale earthworks.
【Key Specifications】
| Parameter | Value |
|---|---|
| I. Weight Parameters | |
| Operating Weight | 22000 kg |
| Drum Distributed Weight | 11000 kg |
| Drive Axle Distributed Weight | 11000 kg |
| Front Wheel Static Linear Load | 516 N/cm |
| II. Compaction Performance | |
| Drum Width | 2130 mm |
| Drum Diameter | 1600 mm |
| Vibration Frequency | 28 / 33 Hz (Dual frequency) |
| Nominal Amplitude | 1.86 / 0.93 mm (Dual amplitude) |
| Centrifugal Force | 374 / 290 kN |
| Theoretical Gradeability | 38% |
| Minimum Turning Radius | 6500 mm |
| III. Power System | |
| Engine Model | Shangchai SC7H190G3 (China III) |
| Rated Power | 140 kW |
| Rated Speed | 2200 r/min |
| Travel Speed | 0~5.5 / 0~8.5 km/h |
| IV. Dimensions | |
| Overall Dimension (L×W×H) | 6320 × 2390 × 3200 mm |
| Wheelbase | 3230 mm |
| Minimum Ground Clearance | 440 mm |
【Key Features】
1. Full Hydraulic Drive System
Features a fully hydraulic drive system with stepless speed control, allowing operators to precisely match travel speed to job site conditions for optimal compaction results.
2. Powerful Compaction Performance
Equipped with dual-frequency (28/33 Hz) and dual-amplitude (1.86/0.93 mm) vibration system, delivering centrifugal forces of 374 kN and 290 kN for efficient compaction of various materials from soil to asphalt.
3. Optimal Weight Distribution
Perfect 1:1 weight distribution between drum and drive axle (11,000 kg each) ensures superior traction and uniform compaction across the full drum width.
4. Superior Gradeability
Theoretical gradeability of 38% provides excellent performance on slopes and challenging terrain, making it suitable for complex job site conditions.

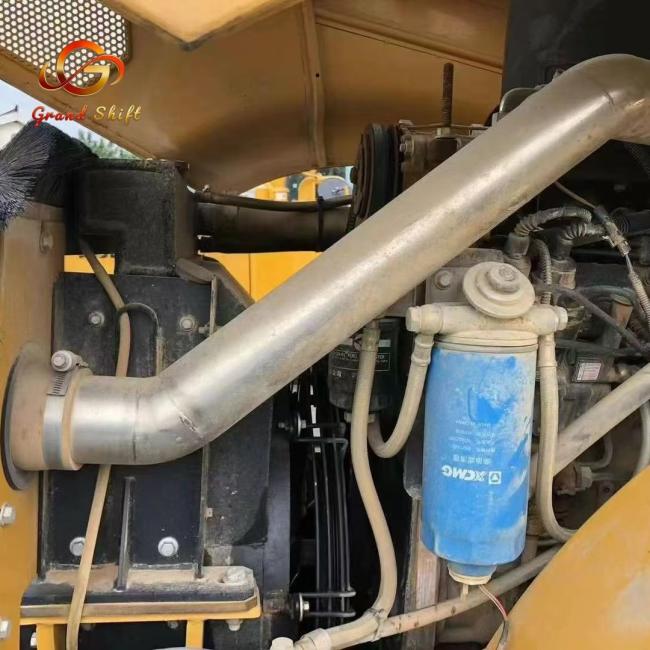

5. Efficient Power System
Powered by the Shangchai SC7H190G3 engine delivering 140 kW at 2200 rpm, providing ample power for demanding compaction applications with excellent fuel economy.
6. Excellent Maneuverability
With a minimum turning radius of 6500 mm and compact dimensions, the XS223H offers outstanding maneuverability in confined spaces.
【Main Application Areas】
- Highway and expressway construction
- Airport runway projects
- Dam and embankment construction
- Large-scale industrial sites
- Port and terminal infrastructure
- Heavy earthworks compaction
- Mountainous terrain projects
|
|
|
