XCMG XCT60 60 ton Capacity Truck Crane with High-strength U-boom and Euro VI Engine for Heavy-duty Lifting
| Item | Unit | Value |
|---|---|---|
| Model | - | XCMG XCT60 (XCT60G5-1 / XCT60L6) |
| Max. Rated Lifting Capacity | t | 60 @ 3m working radius |
| Max. Lifting Moment | kN·m | 2200 |
| Main Boom | - | 5-section U-shaped high-strength steel boom |
| Max. Main Boom Length | m | 44 / 46 |
| Max. Lift Height (Boom Only) | m | 45.5 / 47.5 |
| Max. Lift Height (Boom + Jib) | m | 59.8 / 62.5 (with 16m optional jib) |
| Jib Length (Optional) | m | 9m / 16m |
| Outrigger Span (Longitudinal × Transverse) | m | 6.0 × 7.6 |
| Complete Vehicle Kerb Mass | kg | 45600 (matches vehicle marking: 总质量 45600kg) |
| Max. Allowable Gross Mass | kg | 46000 |
| Overall Dimensions (L×W×H) | mm | 14050 × 2800 × 3840 |
| Engine Model | - | WEICHAI P9 / SINOTRUK MAN MC11.36 (Euro V / Euro VI) |
| Engine Rated Power | kW/rpm | 265 / 2200 (360HP) |
| Max. Engine Torque | N·m/rpm | 1800 / 1500 |
| Max. Travel Speed | km/h | 90 |
| Max. Gradeability | % | 49 |
| Min. Turning Radius | m | 12 |
| Fuel Tank Capacity | L | 300 |
| Cabin Capacity | Person | 2 (with sleeper option) |
Detailed Description:
The XCMG XCT60 is a high-performance 60-ton truck crane, a flagship model in XCMG's XCT series, designed for heavy-duty lifting operations in complex working conditions. Equipped with a 5-section U-shaped high-strength main boom (max length 44m) and an optional 16m lattice jib, it delivers a maximum lifting moment of 2200kN·m and a maximum lift height of 59.8m, meeting the needs of large-scale construction, bridge installation and heavy equipment hoisting.
Powered by a high-torque Euro VI engine (265kW / 360HP), the crane ensures strong power, reliable performance and excellent fuel economy. The 8×4 heavy-duty chassis, combined with a 7.6m wide outrigger span, provides superior stability and safety during operation. The intelligent load-sensitive hydraulic system enables smooth, precise control and energy-efficient operation.
Key advantages:
- High-strength U-boom: Lightweight, high rigidity, long service life, excellent lifting performance at full extension
- Powerful powertrain: 360HP engine, 90km/h max travel speed, 49% gradeability for fast site transfer
- Intelligent control system: CAN bus control, multiple working modes (Power / Standard / Energy-saving), real-time monitoring
- Comprehensive safety system: Load moment limiter, anti-overturn protection, emergency stop, over-wind protection
- Proven reliability: XCMG's mature hoisting technology, low failure rate, easy maintenance, global after-sales support

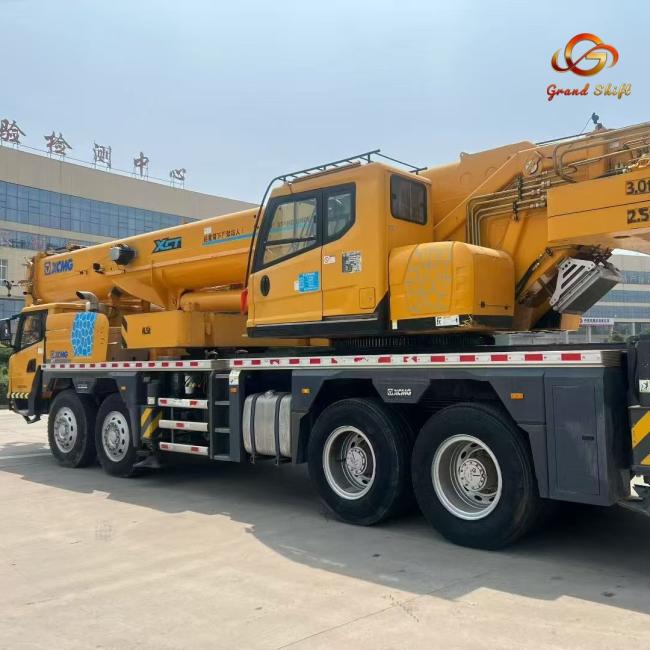

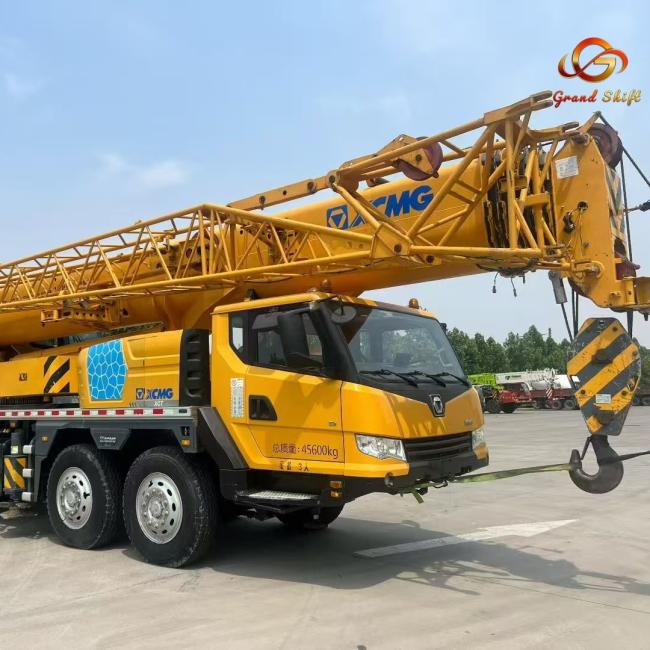

This used XCT60 is in good working condition, fully inspected and tested, ready for immediate delivery, ideal for construction companies, rental companies and engineering contractors in the Middle East, Southeast Asia, Russia and other markets.
- Emission Compliance: Available in Euro V / Euro VI versions to meet different regional emission standards
- Customizable Configuration: Optional long boom, extra jib, air conditioner, sleeper cab, etc.
- Global After-sales Service: XCMG's global service network provides 24/7 technical support and spare parts supply
- Easy Maintenance: Modular design, convenient for daily maintenance and repair
- Wide Application: Suitable for construction, oil fields, ports, mines, municipal engineering and other industries
![]()
![]()
![]()
![]()
![]()
