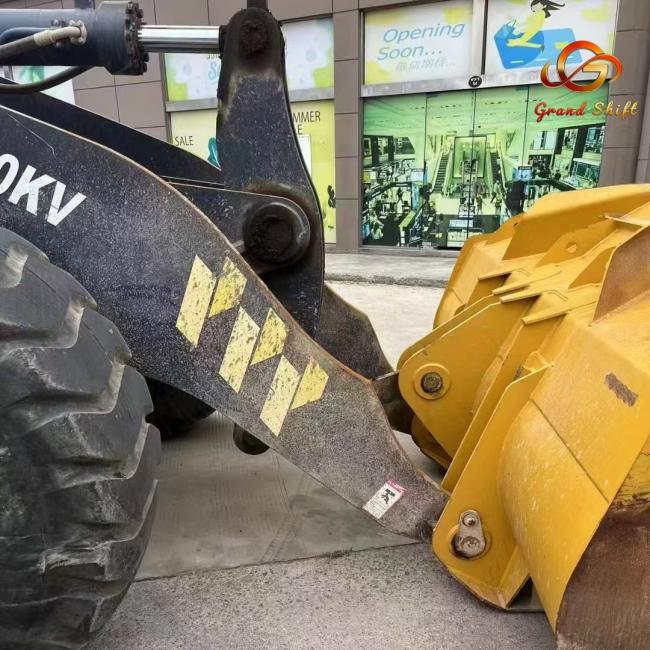

Used XCMG LW500KV Wheel Loader with 5000kg Rated Load 162 kW Engine Power
Price:
26,000 –27,000 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
XCMG
Product Description
【Product Overview】
The XCMG LW500KV is a 5-ton heavy-duty wheel loader engineered for high-efficiency loading and material handling operations. Powered by the Weichai WD10G220E21 engine delivering 162 kW of power, this model combines robust performance with excellent fuel economy. With an operating weight of 17,000 kg and bucket capacity ranging from 2.5 to 4.5 m³, the LW500KV is ideal for mining, port operations, construction sites, and bulk material handling applications.
Key Specifications
| Parameter | Value |
|---|---|
| I. Basic Parameters | |
| Rated Load Capacity | 5000 kg |
| Operating Weight | 17000 ± 300 kg |
| Bucket Capacity | 2.5 ~ 4.5 m³ |
| Breakout Force | 175 ± 5 kN |
| II. Engine System | |
| Engine Model | Weichai WD10G220E21 |
| Rated Power | 162 kW |
| III. Dump Performance | |
| Maximum Dump Height | 3100 ~ 3780 mm |
| Dump Reach (45°) | 1220 mm |
| IV. Dimensions | |
| Overall Dimension (L×W×H) | 8515 × 3030 × 3515 mm |
| Wheelbase | 3300 mm |
| Track Width | 2250 mm |
| V. Maneuverability | |
| Minimum Turning Radius (Tire Outside) | 5950 mm |
| Articulation Angle | 35° |
| Gradeability | 28° |
| Tire Specification | 23.5-25-16PR |
| VI. Fluid Capacities | |
| Fuel Tank Capacity | 250 L |
| Hydraulic Tank Capacity | 210 L |
| VII. Travel Speed | |
| Forward/Reverse - Gear I | 13 / 18 km/h |
| Forward - Gear II | 40 km/h |
| VIII. Cycle Time | |
| Hydraulic Cycle Time (Raise, Dump, Lower) | ≤ 10.5 s |
Key Features
- Powerful and Reliable Engine
Equipped with the Weichai WD10G220E21 engine delivering 162 kW of power, providing ample power for demanding loading operations with proven reliability and excellent fuel economy. - High Load Capacity
With a rated load capacity of 5000 kg and operating weight of 17,000 kg, the LW500KV delivers exceptional lifting and hauling performance for heavy-duty applications. - Versatile Bucket Options
Bucket capacity range of 2.5 to 4.5 m³ allows operators to select the optimal bucket for specific material handling requirements, from light aggregates to heavy ores. - Excellent Dump Performance
Maximum dump height from 3100 to 3780 mm with 1220 mm dump reach (at 45°) ensures efficient loading of various haul trucks and hoppers. - Outstanding Maneuverability
With a minimum turning radius of 5950 mm (tire outside), 35° articulation angle, and 28° gradeability, the LW500KV delivers excellent maneuverability in confined spaces and challenging terrain. - Fast Cycle Times
Hydraulic cycle time of ≤10.5 seconds ensures rapid loading cycles, maximizing productivity in high-volume operations. - Two-Speed Transmission
Forward/Reverse gear I speeds of 13/18 km/h and forward gear II speed of 40 km/h provide optimal speed selection for various working conditions and transport requirements. - Large Fluid Capacities
250 L fuel tank and 210 L hydraulic tank extend operating hours between refueling, enhancing productivity on large job sites.
Main Application Areas
- Mining and quarry operations
- Port and terminal bulk material handling
- Construction sites
- Aggregate yards and concrete batching plants
- Industrial material handling
- Infrastructure projects
