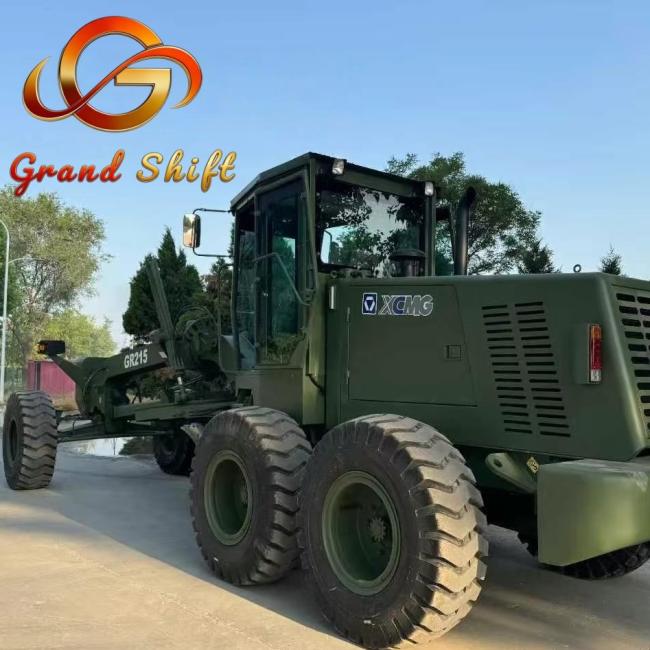

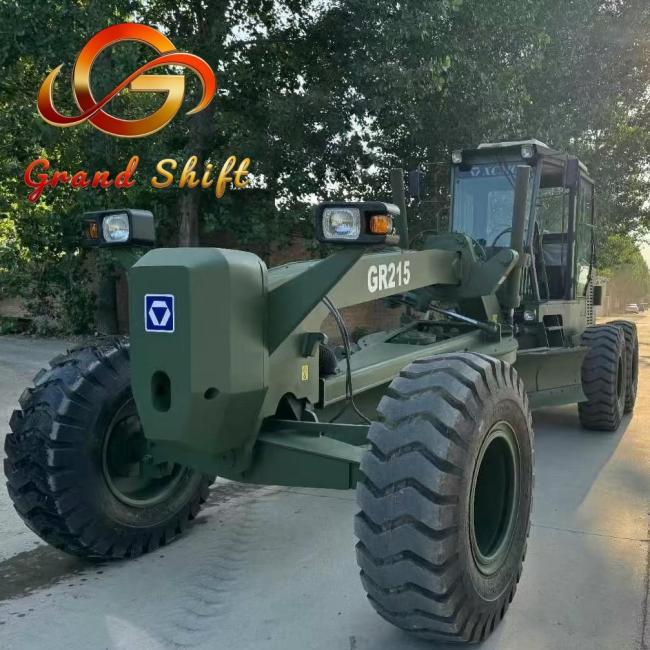

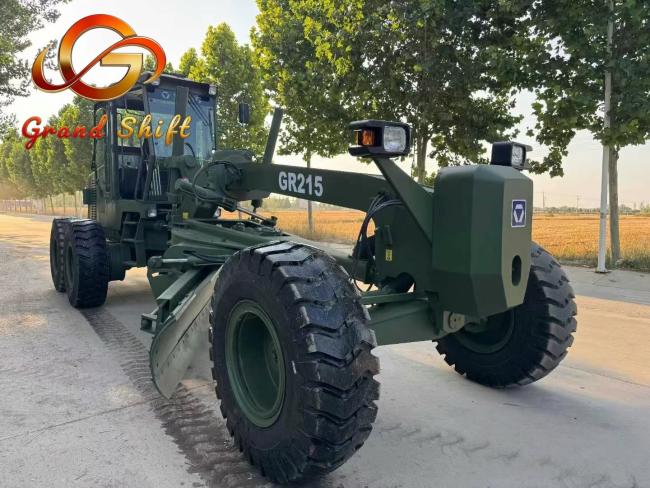

Second-Hand XCMG GR215 Motor Grader 160 kW Comins Engine 5-25 Tires 3965X610 mm Blade
Price:
50,000 – 52,000 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
XCMG
Product Description
XCMG GR215 Motor Grader Official Complete Specification Sheet
1. Core Power System
Engine: Dongfeng Cumins 6CTA8.3.
Rated Power: 160kW.
Rated Speed: 2200rpm.
Hydraulic System: Rated working pressure 18MPa.
Rated Power: 160kW.
Rated Speed: 2200rpm.
Hydraulic System: Rated working pressure 18MPa.
2. Transmission & Driving Performance
Forward Speed (1st to 6tgear): 5km/h, 8km/h, 11km/h, 19km/h, 23km/h, 38km/h.
Reverspeed (1st to 3rd gear): 5km/h, 11km/h, 23km/h.
Tire Specification5-25.
Front Wheel Pressure: 0.26MPa.
Rear Wheel Pressure: 0.26MPa.
Overall Dimensions:
length: 8970mm
Width: 2625mm.
Height: 3470mm
Operating Weight (Basic Mode: 16500kg.
Reverspeed (1st to 3rd gear): 5km/h, 11km/h, 23km/h.
Tire Specification5-25.
Front Wheel Pressure: 0.26MPa.
Rear Wheel Pressure: 0.26MPa.
Overall Dimensions:
length: 8970mm
Width: 2625mm.
Height: 3470mm
Operating Weight (Basic Mode: 16500kg.
3. Working Device (Blade) Parameters
Blade Length × Height: 3965X610/4270X610mm.
Blade Lift eight: 28-70mm.
Blade Cutting Depth: 360mm.
Blade Tilt Angle: 90°.
Blade CuttingAngle: ±17°.
Blade Swivel Angle: ±15°.
Front Wheel Steering Angle: ±49°.
Front Wheel Camber An±27°.
Frame Articulation Angle: ±27°
Front Axle Oscillation Angle: 7.3°.
Balance Box Oscillation Angle: Fron and Rear 15°
Minimum Turning Radius: 90000mm.
Maximum Traction Force: 90kN.
