Used SANY SAC1600C8-8 All Terrain Crane with 160t Max Lifting Capacity 88m Main Boom
Price:
290000-310000 USD(contact us for detailed quotation)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
SANY
Product Description
Full Technical Specifications
1. Core Performance Parameters
- Max. Rated Lifting Capacity: 160t
- Max. Lifting Moment: 5320kN·m (532t·m)
- Main Boom: 8-section oval U-shaped boom, full extended length 88m
- Jib: Standard 18m, optional 2*8m extension sections, max. 34m
- Max. Lifting Height: 118m (88m main boom + 34m jib)
- Max. Lifting Capacity at Full Extended Main Boom: 6.5t at 88m/26m radius
- Max. Lifting Capacity at Basic Boom: 89t at 29.3m/5m radius
- Max. Counterweight: 59t (29t counterweight available for on-road travel)
- Outrigger Span: 8.3m (transverse) * 7.7m (longitudinal)
- Slewing Speed: 0–1.5r/min (stepless speed regulation)
- Main Hoisting Speed: 0–135m/min
- Full Extension/Retraction Time of Main Boom: 880s / 880s
- Full Luffing Up/Down Time of Boom: 70s / 115s
2. Overall Dimensions & Weight
- Total Weight: 54990kg
- Total Length in Travel Condition: 15500mm
- Total Width in Travel Condition: 3000mm
- Total Height in Travel Condition: 4000mm
- Min. Ground Clearance: 287mm
- Min. Turning Diameter: 21m (radius 10.5m)
- Approach / Departure Angle: 18° / 14°
3. Undercarriage System
- Drive Configuration: 5-axle all-terrain, 10*8*10 drive & steering
- Chassis Engine: Weichai WP12.460E62 (China National VI Emission Standard)
- Rated Power: 460 HP / 338kW @ 1900rpm
- Max. Torque: 2200N·m @ 1000–1400rpm
- Gearbox: Fast 12JSDX240TA (12-speed with synchronizer)
- Max. Travel Speed: 80km/h
- Max. Gradeability: 45%
- Tire Specification: 445/95R25 (including spare tire)
4. Upper Structure Operating System
- Upper Engine: Dongfeng Cums B5.9CS4 220C (China National IV Emission Standard)
- Rated Power: 220 HP / 162kW @ 2200rpm
- Slewing Bearing: Double-row ball type, φ2.8m
- Hydraulic System: Load sensing + electro-hydraulic proportional control
- System Pressure: 35MPa
- Hoisting Wire Rope: φ26mm, length 650m
- Brake System: Full hydraulic wet brake with emergency braking
5. Electrical & Intelligent System
- Voltage: 24V
- Control System: SANY independent PLC + CAN bus

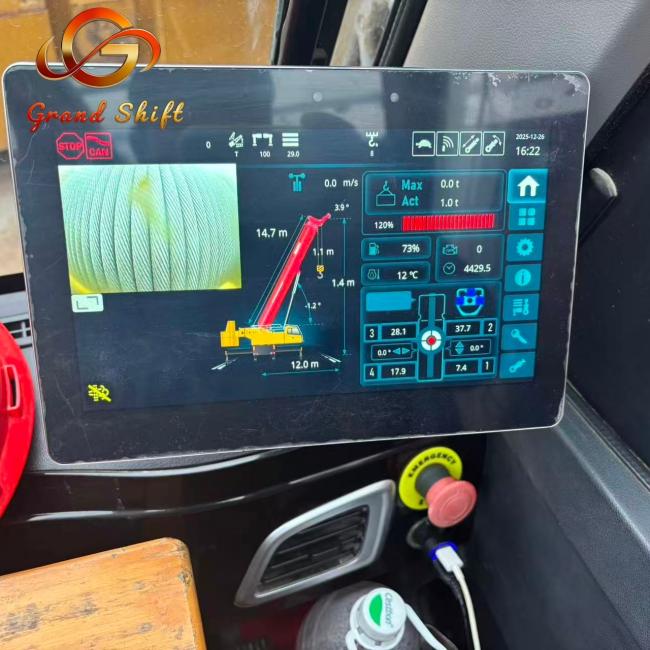

- Safety Devices: Load moment limiter, anti-overwind protection, anti-tipping protection, wind speed alarm
- Operator Cab: Panoramic view, heating & cooling air conditioning, suspension seat, pilot control handles
6. Key Working Condition Performance
- Main Boom 88m (Full Extended): 6.5t at 26m radius
- Main Boom 29.3m (Basic): 89t at 5m radius
- Main Boom 82.1m + Jib 34m: 1.1t at 60m radius
