Used SANY SAC1600T8 All Terrain Crane with 160t Max Lifting Capacity 85.5m Main Boom 80km/h Travel Speed
Price:
290000-310000 USD(contact us for detailed quotation)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
SANY
Product Description
Full Technical Specifications
1. Core Performance Specifications
- Max. Rated Lifting Capacity: 160t
- Max. Lifting Moment: 6272kN·m
- Main Boom: 8-section oval U-shaped boom, full extension 85.5m, basic boom 14.4m
- Jib: Standard 18m, optional 2*8m extensions, max. length 34m
- Max. Lifting Height: 119.5m (85.5m main boom + 34m jib)
- Lifting Capacity at Full Extended Main Boom: Approx. 6.5t at 85.5m/26m radius (reference for same class)
- Lifting Capacity at Basic Boom: Over 90t at approx. 14.4m/3m radius
- Max. Counterweight: 60t (counterweight adjustable rearward by 500mm; 18t for road travel)
- Outrigger Span: 8.3m (transverse) * 9.08m (longitudinal)
- Slewing Speed: 0–1.5r/min (stepless speed regulation)
- Main Hoisting Speed: 0–130m/min
- Full Extension/Retraction Time of Main Boom: 750s / 750s
- Full Luffing Up/Down Time of Boom: 60s / 115s
2. Overall Dimensions & Weight
- Total Weight: 54990kg
- Total Length in Travel Condition: 16145mm (certified configuration)
- Total Width in Travel Condition: 3000mm
- Total Height in Travel Condition: 4000mm
- Min. Turning Radius: 9.5m
- Approach / Departure Angle: 16° / 12°
- Max. Gradeability: 45%
3. Undercarriage System
- Drive Configuration: 5-axle all-terrain, 10*8*10 drive & steering
- Chassis Engine: Weichai WP13.530 / WP13.550 (different batches)
- Rated Power: 390kW@2100rpm or 405kW@1900rpm
- Max. Torque: 2500N·m @ 950–1400rpm
- Gearbox: ZF automatic transmission with hydraulic retarder
- Max. Travel Speed: 80km/h
- Transfer Case & Axles: German Kessler transfer case + Kessler axles (full disc brakes)
- Tire Specification: 445/95R25 (including spare tire)
4. Upper Structure Operating System
- Upper Power: Single-engine design (Weichai/Cums optional), energy-saving, low noise, 35% lower maintenance cost
- Slewing Bearing: Double-row ball type, large-diameter design
- Hydraulic System: Independent upper/lower hydraulics, 15%–20% energy saving, load sensing + electro-hydraulic proportional control
- System Pressure: 35MPa
- Hoisting Wire Rope: φ26mm class, large rope capacity
- Brake System: Full hydraulic wet brake with emergency braking
5. Key Configurations & Features
- Steering System: All-wheel steering, 6 steering modes, flexible in confined spaces
- Suspension System: Hydro-pneumatic suspension for complex road conditions
- Outrigger Type: H-type outriggers for stable operation
- Safety Devices: Load moment limiter, anti-overwind protection, anti-tipping protection, wind speed alarm, counterweight adjustment protection

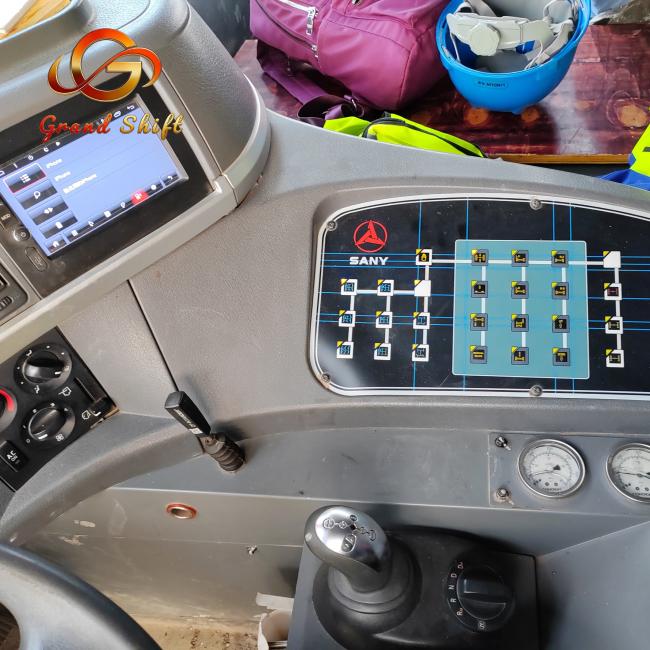

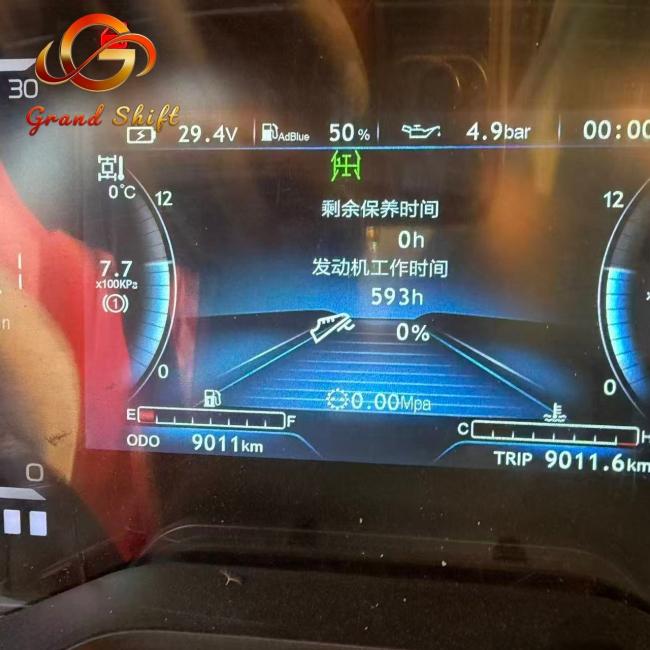

- Operator Cab: Panoramic view, heating & cooling air conditioning, suspension seat, pilot control joysticks, intelligent instrument panel
