SANY STC2000C8-8 200t Truck Crane with 90m Main Boom and Intelligent Control System
Price:
310000-325000 USD(contact us for detailed quotation)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
SANY
Product Description
Full Technical Specifications
1. Core Performance Parameters
- Max. Rated Lifting Capacity: 200t
- Max. Lifting Moment: 5880kN·m
- Main Boom: 8-section oval U-shaped boom, full extended length 90m
- Jib: Standard 17.5m, optional 2×9.5m extension sections, max. 36.5m
- Max. Lifting Height: 120m (90m main boom + 36.5m jib)
- Max. Lifting Capacity at Full Extended Main Boom: 7.3t at 90m/26m radius
- Max. Lifting Capacity at Basic Boom: Over 110t at 14.4m/3m radius
- Max. Counterweight: 61t (31t counterweight available for on-road travel)
- Outrigger Span: 8300mm (transverse) × 7700mm (longitudinal)
- Slewing Speed: 0–1.5r/min (stepless speed regulation)
- Main Hoisting Speed: 0–135m/min
- Full Extension/Retraction Time of Main Boom: 800s / 800s
- Full Luffing Up/Down Time of Boom: 65s / 110s
2. Overall Dimensions & Weight
- Total Weight: 55000kg
- Total Length in Travel Condition: 16200mm
- Total Width in Travel Condition: 3000mm
- Total Height in Travel Condition: 4000mm
- Min. Ground Clearance: 290mm
- Min. Turning Diameter: 21m (radius 10.5m)
- Approach / Departure Angle: 17° / 13°
3. Undercarriage System
- Drive Configuration: 5-axle truck crane, 10×6×10 drive & steering
- Chassis Engine: Weichai WP12.460E62 (China National VI Emission Standard)
- Rated Power: 460 HP / 338kW @ 1900rpm
- Max. Torque: 2200N·m @ 1000–1400rpm
- Gearbox: Fast 12JSDX240TA (12-speed with synchronizer)
- Max. Travel Speed: 80km/h
- Max. Gradeability: 45%
- Tire Specification: 445/95R25 (including spare tire)
4. Upper Structure Operating System
- Upper Engine: Dongfeng Cums B5.9CS4 220C (China National IV Emission Standard)
- Rated Power: 220 HP / 162kW @ 2200rpm
- Slewing Bearing: Double-row ball type, φ2.8m (240t-class reinforced)
- Hydraulic System: Load sensing + electro-hydraulic proportional control
- System Pressure: 35MPa
- Hoisting Wire Rope: φ28mm, length 680m
- Brake System: Full hydraulic wet brake with emergency braking
5. Electrical & Intelligent System
- Voltage: 24V

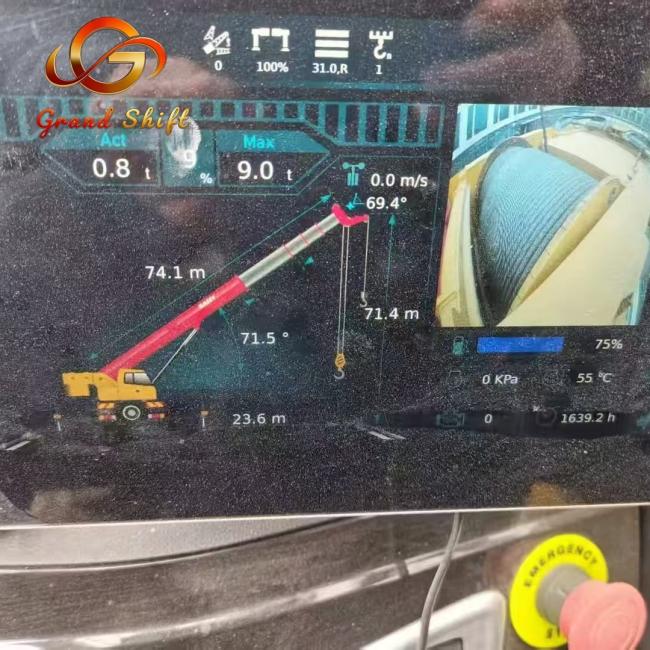

- Control System: SANY i-Crane 1.0 Intelligent System
- Safety Devices: Load moment limiter, anti-overwind protection, anti-tipping protection, wind speed alarm
- Operator Cab: Panoramic view, heating & cooling air conditioning, suspension seat, pilot control handles
6. Key Working Condition Performance
- Main Boom 90m (Full Extended): 7.3t at 26m radius
- Main Boom 14.4m (Basic): 110t at 3m radius
- Main Boom 90m + Jib 36.5m: 1.1t at 76m radius
![]()
![]()
-
