Brand: Zoomlion

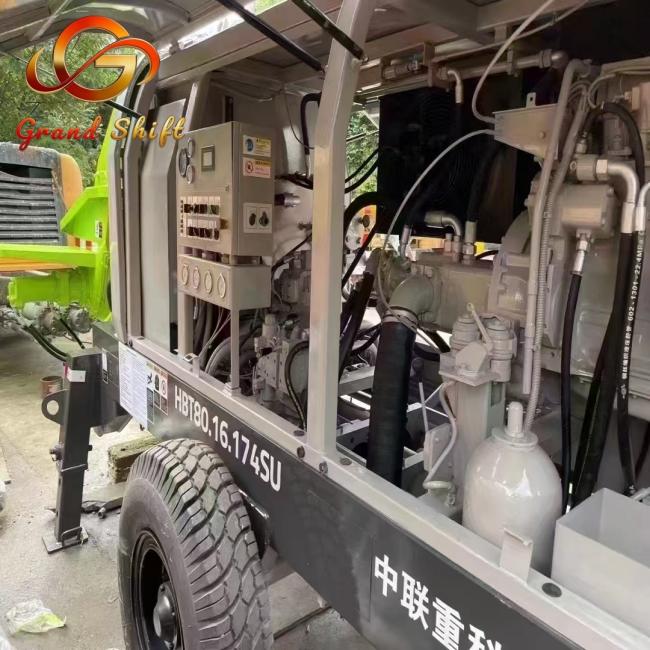

Model: HBT80.16.174SU
Type: Trailer-Mounted Concrete Pump (Diesel Powered)
Condition: Used / Refurbished (Adjust as per actual condition)
Place of Origin: Hunan, China (Mainland)

Max. Theoretical Concrete Output (High/Low Gear): 80 m³/h / 45 m³/h
Max. Theoretical Concrete Pressure (High/Low Gear): 16 MPa / 9 MPa
Hopper Capacity: 0.6 m³
Delivery Cylinder (Bore × Stroke): Φ200 mm × 1600 mm
S-Valve Diameter: Φ200 mm
Max. Aggregate Size: 40 mm
Applicable Concrete Slump Range: 80–230 mm
Max. Vertical Delivery Distance: 150 m
Max. Horizontal Delivery Distance: 500 m

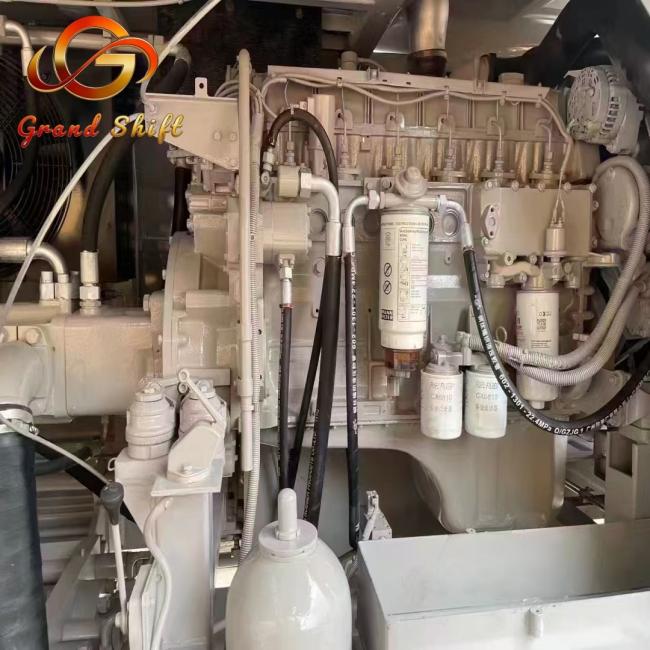

Power Source: Coms Diesel Engine
Rated Power: 174 kW (236 HP) @ 2200 rpm
Emission Standard: Euro III / China III (Optional)
Fuel Tank Capacity: 200 L

Hydraulic System Type: Closed-Loop, Constant Power Control

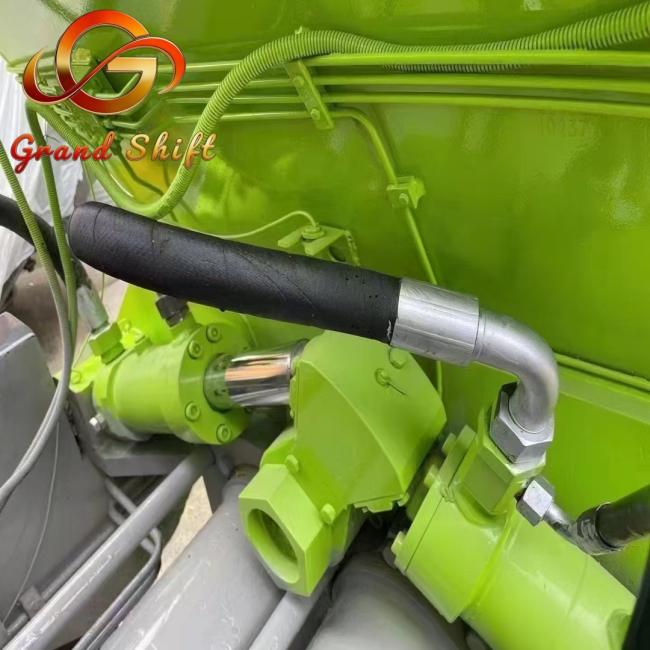

Main Hydraulic Pump: Axial Piston Variable Pump
Max. Hydraulic System Pressure: 31.5 MPa

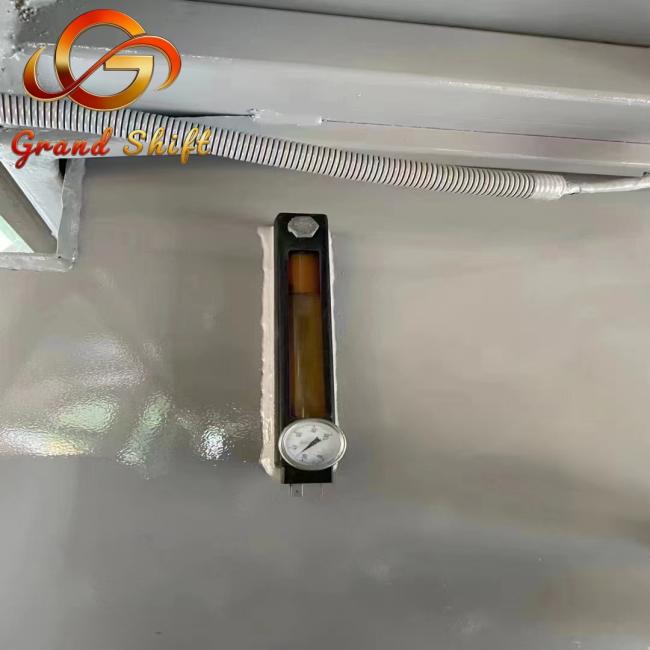

Hydraulic Oil Tank Capacity: 450 L
Cooling System: Air-Cooled Radiator
Control Mode: Manual + Wireless Remote Control
Lubrication System: Automatic Centralized Lubrication

Trailer Type: Single Axle Trailer
Overall Dimensions (L×W×H): 7200 × 2100 × 2650 mm
Operating Weight: Approx. 7500 kg
Outrigger Type: Manual Hydraulic Outriggers
Tire Specification: 11.00R20

• S-Valve reversing system
• Coms diesel engine
• Automatic centralized lubrication system
• Wireless remote control
• High-pressure water washing system
• Hydraulic outriggers
• Air-cooled hydraulic radiator
