Chinese Brand TZ36U New Crawler Hydraulic Excavator with 3900kg Operating Weight, 22.2 kW Rated Power, and 0.13 m³ Bucket Capacity
Price:
14,500.00-16,500.00 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
TZ
Product Description

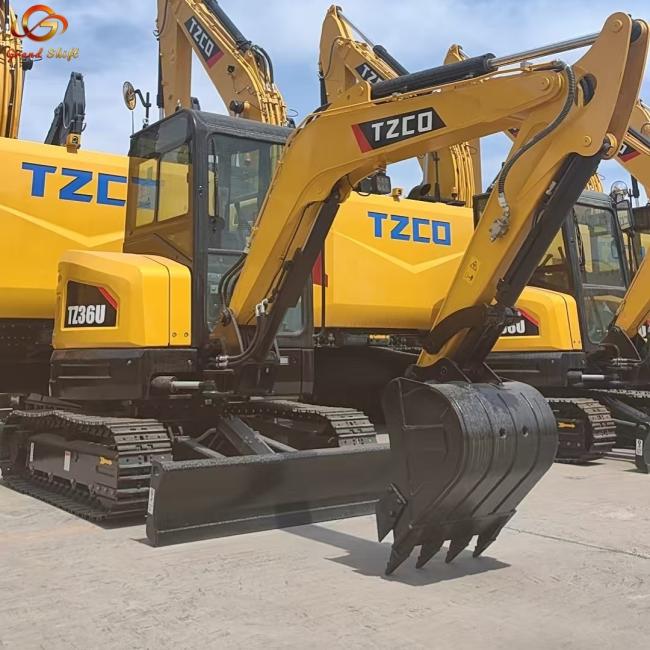

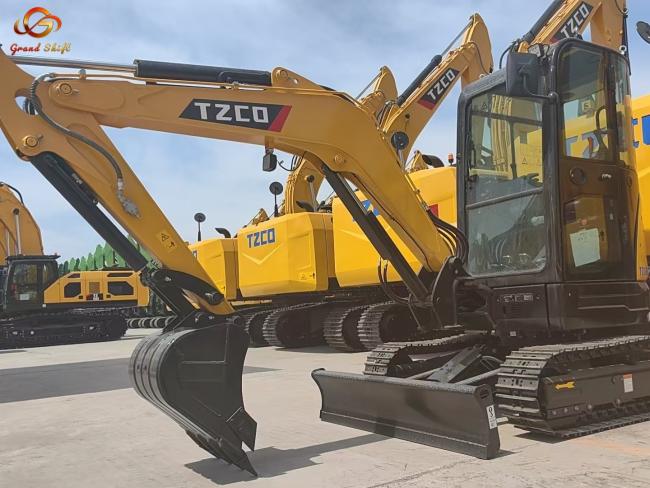

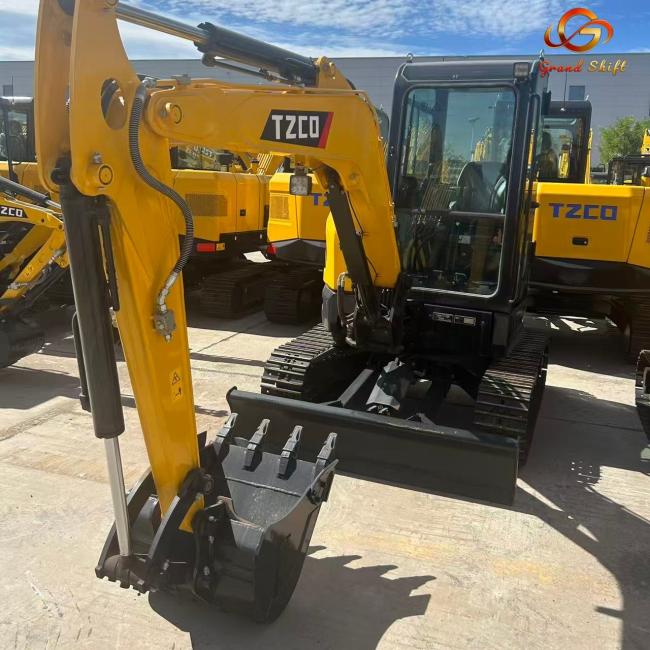

TZ36U Crawler Hydraulic Excavator - High Performance Construction Equipment
Working Ranges
| Item | Parameter | Value (mm) |
|---|---|---|
| a | Max. digging height | 4925 |
| b | Max. dumping height | 3475 |
| c | Max. digging depth | 3135 |
| e | Max. vertical digging depth | 2280 |
| f | Max. digging reach on ground | 5386 |
| g | Min. swinging radius | 860 |
Dimensions
| Item | Parameter | Value (mm) |
|---|---|---|
| A | Overall length | 4875 |
| B | Overall width | 1730 |
| C | Overall height | 2550 |
| D | Overall width of upper structure | 1543 |
| E | Track length | 2122 |
| F | Chassis width | 1730 |
| G | Track shoe width | 300 |
| H | Track length on ground | 1640 |
| I | Track gauge | 1430 |
| J | Counterweight clearance | 590 |
| K | Min. ground clearance | 295 |
| L | Min. tail swinging radius | 860 |
| M | Track height | 524 |
Key Specifications
| Parameter | Unit | Value |
|---|---|---|
| Product model | -- | TZ36U |
| Operating weight | kg | 3900 |
| Bucket capacity | m³ | 0.13 |
Motor Specifications
| Parameter | Unit | Value |
|---|---|---|
| Engine Brand | -- | Yanmar |
| Direct injection | -- | ✓ |
| 4-stroke | -- | ✓ |
| Water cooled | -- | ✓ |
| No. of cylinders | -- | 3 |
| Rated power | kW/rpm | 22.2/2400 |
| Displacement | L | 1.6 |
Oil Capacity
| Parameter | Unit | Value |
|---|---|---|
| Fuel tank | L | 40 |
| Hydraulic tank | L | 40 |
| Engine oil | L | 6 |
Hydraulic System
| Parameter | Unit | Value |
|---|---|---|
| Main pump rated flow | L/min | 108 |
| Pressure-main valve | MPa | 25 |
| Pressure-travel system | MPa | 25 |
| Pressure-swing system | MPa | 25 |
| Pressure-pilot system | MPa | 3.9 |
Main Performance
| Parameter | Unit | Value |
|---|---|---|
| Travel speed (high/low) | km/h | 4.6/2.6 |
| Swing speed | r/min | 10 |
| Gradeability | ° | 35 |
| Ground pressure | kPa | 32 |
| Bucket digging force | kN | 30.1 |
| Arm digging force | kN | 19.9 |
| Max. traction force | kN | 38 |
Standard Configuration
| Parameter | Unit | Value |
|---|---|---|
| Boom length | mm | 2540 |
| Arm length | mm | 1400 |
| Bucket capacity | m³ | 0.13 |
Excavator Parts
