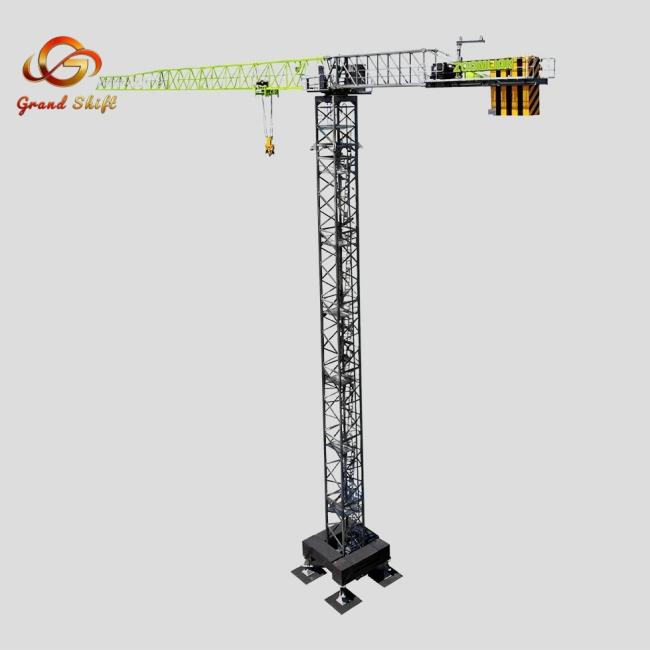

Zoomlion WA6013-6F Flat Top Tower Crane with 60m Maximum Working Radius and 190m Maximum Hook Height
Price:
91500-94500 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
Zoomlion
Product Description

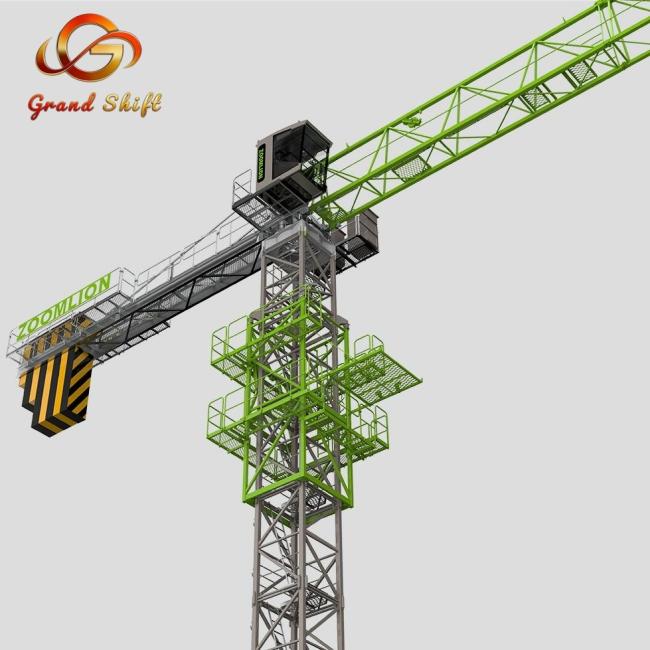

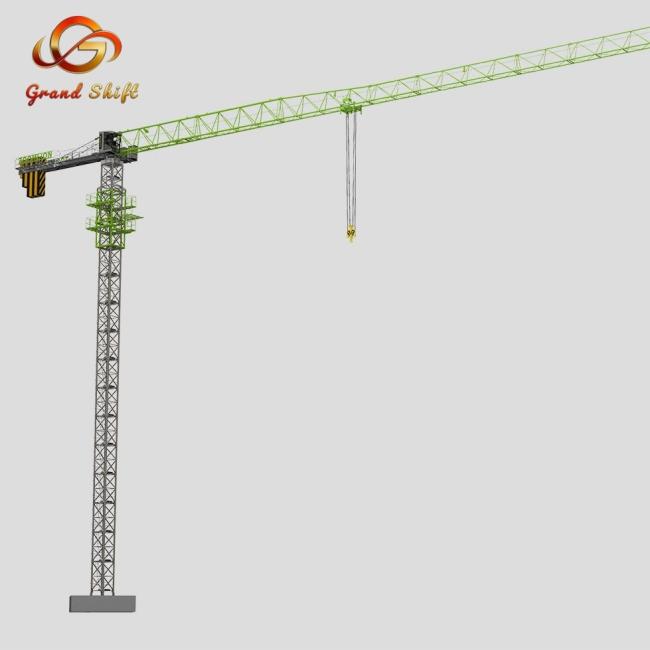

Zoomlion WA6013-6F Flat-Top Tower Crane
Product Overview
High-efficiency construction machinery designed for global projects, featuring advanced flat-top design and robust performance capabilities.
Basic Specifications
| Item | Specification |
|---|---|
| Model | WA6013-6F |
| Type | Flat-top / Top-less Tower Crane |
| Brand | Zoomlion |
| Working Class | A4 |
| Rated Lifting Moment | 800 kN*m (123.6 t*m) |
Performance Parameters
| Item | Unit | Value |
|---|---|---|
| Maximum Lifting Capacity | t | 6 |
| Maximum Working Radius | m | 60 |
| Lifting Capacity at Maximum Radius | t | 1.3 |
| Radius at Maximum Load | m | 20.6 |
| Independent Height | m | 45 |
| Maximum Hook Height (Full Mast) | m | 190 (Optional) |
| Rope Capacity | m | 440 |
Mechanism Parameters
| Item | Unit | Value |
|---|---|---|
| Hoisting Mechanism | ||
| Maximum Hoisting Speed | m/min | 100 |
| Hoisting Motor Power | kW | 37 |
| Trolleying Mechanism | ||
| Trolleying Speed | m/min | 0~75 |
| Trolleying Motor Power | kW | 5.5 |
| Slewing Mechanism | ||
| Slewing Speed | r/min | 0~0.8 |
| Slewing Motor Power | kW | 2*5.5 |
| Power Supply | ||
| Rated Voltage | V | 380 |
| Rated Frequency | Hz | 50 |
| Total Installed Power | kW | ~60 |
Structural Parameters
| Item | Unit | Value |
|---|---|---|
| Jib Length (Standard) | m | 60 |
| Minimum Jib Length | m | 30 (Adjustable in 5m increments) |
| Mast Section Size | m | 1.6*1.6*3 (Optional 1.8*1.8*3) |
| Counter Jib Length | m | 15.8 |
| Overall Weight (Standard Configuration) | t | ~45 |
| Foundation Load (Standard) | kN | ~1200 |
Optional Configurations
- Mast section options: 1.6m bolted integral mast, 1.8m bolted integral mast, 1.6m fishplate pinned mast
- Safety devices: Triple lifting capacity protection, double torque protection, anti-collision system, etc.
- Cab: Independent external installation, panoramic view, air-conditioned optional
Engine Note: If equipped with Coms (Cums) engine, relevant parameters will be updated separately.
-
