TZ80 New Crawler Hydraulic Excavator with 7800kg Operating Weight, 46.2kW Rated Power, and 0.34m³ Bucket Capacity
Price:
19,500.00-21,500.00 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
TZ
Product Description

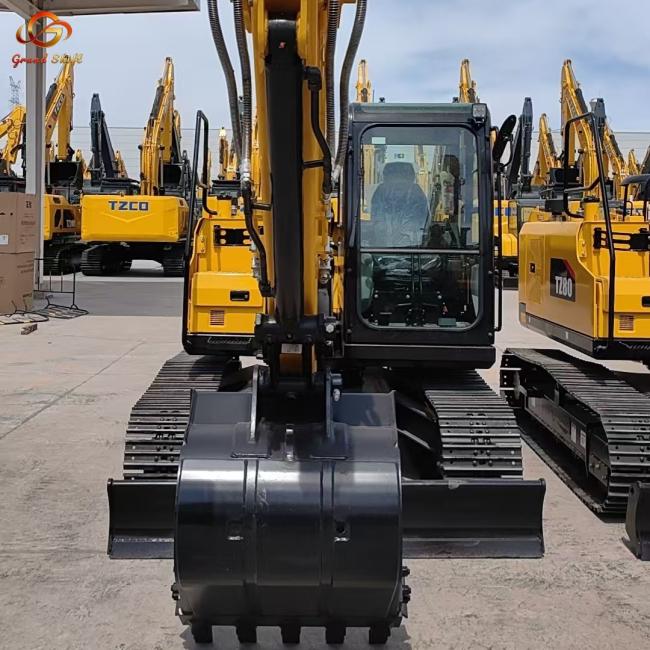

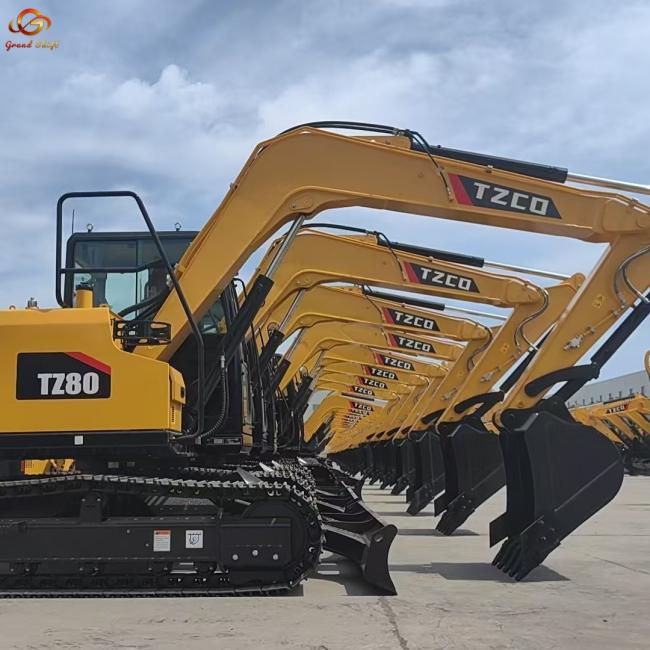

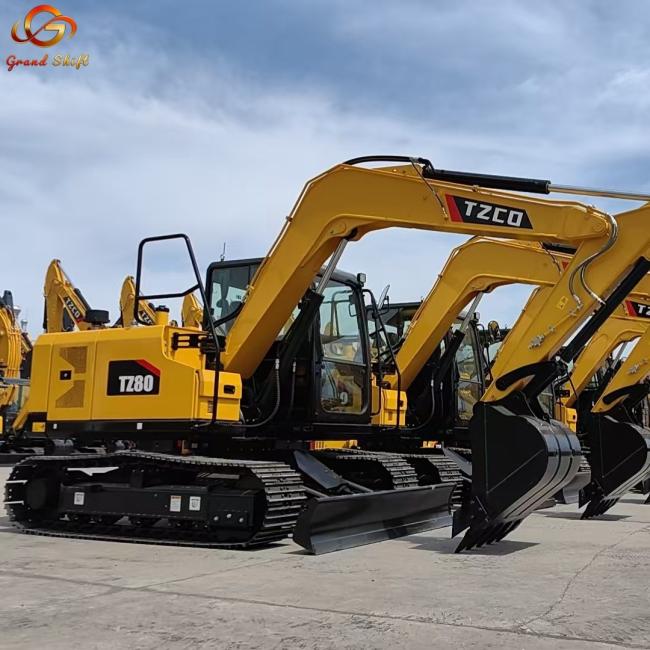

TZ80 Crawler Hydraulic Excavator - High Performance Construction Equipment
Working Ranges
| Item | Parameter | Value (mm) |
|---|---|---|
| a | Max. digging height | 7173 |
| b | Max. dumping height | 5259 |
| c | Max. digging depth | 4152 |
| e | Max. vertical digging depth | 3415 |
| f | Max. digging reach on ground | 6174 |
| g | Min. swinging radius | 1750 |
Dimensions
| Item | Parameter | Value (mm) |
|---|---|---|
| A | Overall length | 6145 |
| B | Overall width | 2250 |
| C | Overall height | 2722 |
| D | Overall width of upper structure | 2040 |
| E | Track length | 2827 |
| F | Chassis width | 2250 |
| G | Track shoe width | 450 |
| H | Track length on ground | 2200 |
| I | Track gauge | 1800 |
| J | Counterweight clearance | 800 |
| K | Min. ground clearance | 385 |
| L | Min. tail swinging radius | 1750 |
| M | Track height | 700 |
Key Specifications
| Parameter | Unit | Value |
|---|---|---|
| Product model | -- | TZ80 |
| Operating weight | kg | 7800 |
| Bucket capacity | m³ | 0.34 |
Motor Specifications
| Parameter | Unit | Value |
|---|---|---|
| Engine Brand | -- | Yanmar/Cums/Yuchai |
| Direct injection | -- | ✓ |
| 4-stroke | -- | ✓ |
| Water cooled | -- | ✓ |
| No. of cylinders | -- | 4 |
| Rated power | kW/rpm |
Yanmar 46.2/2200 Cumis 36.8/2250 Yuchai 48/2200 |
| Displacement | L | 3.319/2.771/2.982 |
Oil Capacity
| Parameter | Unit | Value |
|---|---|---|
| Fuel tank | L | 136 |
| Hydraulic tank | L | 113 |
| Engine oil | L | 10/12.5 |
Hydraulic System
| Parameter | Unit | Value |
|---|---|---|
| Main pump rated flow | L/min | 176 |
| Pressure-main valve | MPa | 26.3 |
| Pressure-travel system | MPa | 26.3 |
| Pressure-swing system | MPa | 23.5 |
| Pressure-pilot system | MPa | 3.5 |
Main Performance
| Parameter | Unit | Value |
|---|---|---|
| Travel speed (high/low) | km/h | 4.7/2.5 |
| Swing speed | r/min | 11.6 |
| Gradeability | ° | 35 |
| Ground pressure | kPa | 33 |
| Bucket digging force | kN | 56 |
| Arm digging force | kN | 33 |
| Max. traction force | kN | 66.3 |
Standard Configuration
| Parameter | Unit | Value |
|---|---|---|
| Boom length | mm | 3720 |
| Arm length | mm | 1670 |
| Bucket capacity | m³ | 0.34 |
