TZ130 New Crawler Hydraulic Excavator with 14500kg Operating Weight, 96kW Rated Power, and 0.7m³ Bucket Capacity
Price:
34,00.00-35,600.00 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
TZ
Product Description

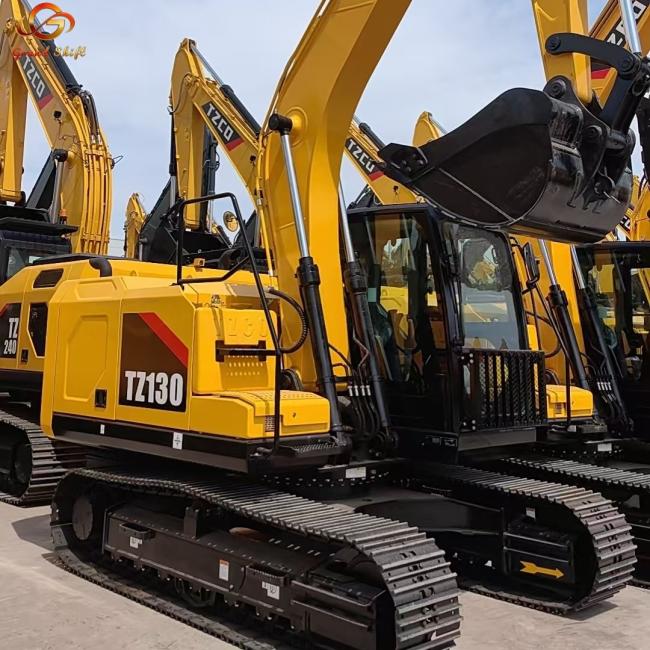

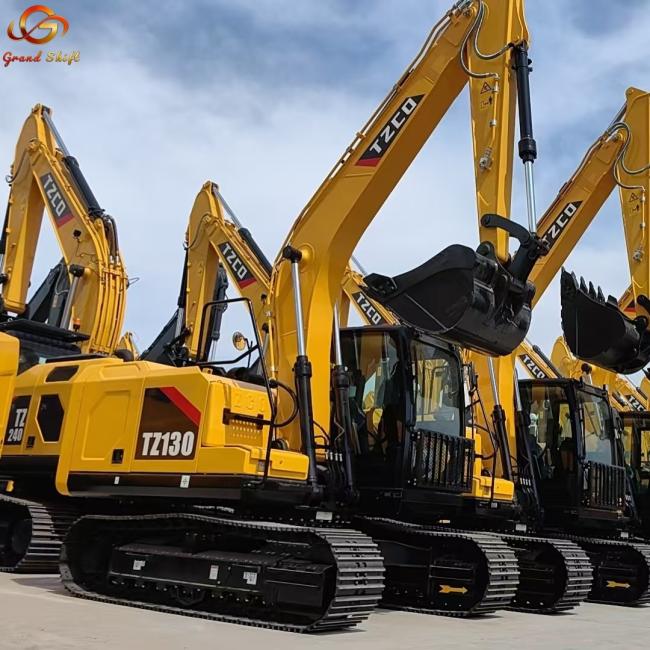

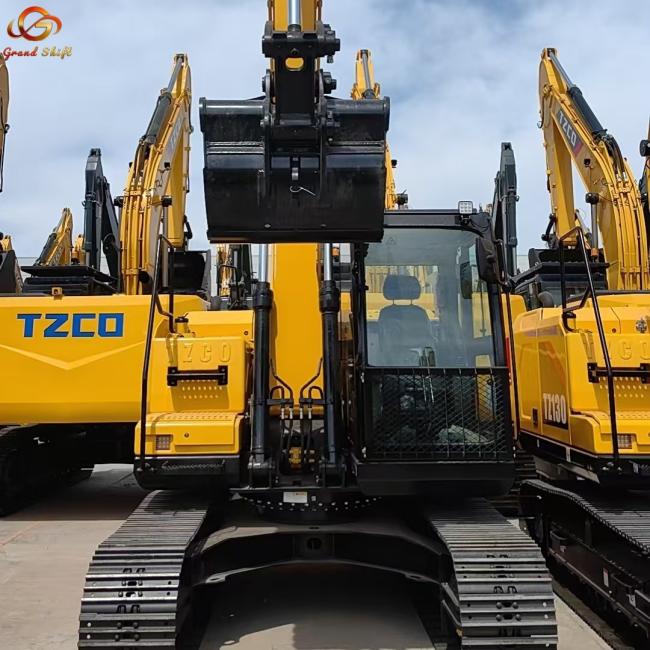

TZ130 Crawler Hydraulic Excavator - High Performance Construction Equipment
Working Ranges
| Item | Parameter | Value (mm) |
|---|---|---|
| a | Max. digging height | 8598 |
| b | Max. dumping height | 6206 |
| c | Max. digging depth | 5470 |
| e | Max. vertical digging depth | 4921 |
| f | Max. digging reach on ground | 8317 |
| g | Min. swinging radius | 2501 |
Dimensions
| Item | Parameter | Value (mm) |
|---|---|---|
| A | Overall length | 7721 |
| B | Overall width | 2550 |
| C | Overall height | 2918 |
| D | Overall width of upper structure | 2575 |
| E | Track length | 3750 |
| F | Chassis width | 2490 |
| G | Track shoe width | 500 |
| H | Track length on ground | 3010 |
| I | Track gauge | 1900 |
| J | Counterweight clearance | 931 |
| K | Min. ground clearance | 427 |
| L | Min. tail swinging radius | 2255 |
| M | Track height | 950 |
Key Specifications
| Parameter | Unit | Value |
|---|---|---|
| Product model | -- | TZ130 |
| Operating weight | kg | 14500 |
| Bucket capacity | m³ | 0.7 |
Motor Specifications
| Parameter | Unit | Value |
|---|---|---|
| Engine Brand | -- | Cumis |
| Direct injection | -- | ✓ |
| 4-stroke | -- | ✓ |
| Water cooled | -- | ✓ |
| No. of cylinders | -- | 4 |
| Rated power | kW/rpm |
96/2100 |
| Displacement | L | 4.5 |
Oil Capacity
| Parameter | Unit | Value |
|---|---|---|
| Fuel tank | L | 270 |
| Hydraulic tank | L | 170 |
| Engine oil | L | 18 |
Hydraulic System
| Parameter | Unit | Value |
|---|---|---|
| Main pump rated flow | L/min | 2*118 |
| Pressure-main valve | MPa | 34.3 |
| Pressure-travel system | MPa | 34.3 |
| Pressure-swing system | MPa | 27 |
| Pressure-pilot system | MPa | 3.9 |
Main Performance
| Parameter | Unit | Value |
|---|---|---|
| Travel speed (high/low) | km/h | 5.5/3.5 |
| Swing speed | r/min | 12.2 |
| Gradeability | ° | 35 |
| Ground pressure | kPa | 34.9 |
| Bucket digging force | kN | 102.8 |
| Arm digging force | kN | 65 |
| Max. traction force | kN | 120 |
Standard Configuration
| Parameter | Unit | Value |
|---|---|---|
| Boom length | mm | 4600 |
| Arm length | mm | 2500 |
| Bucket capacity | m³ | 0.7 |
