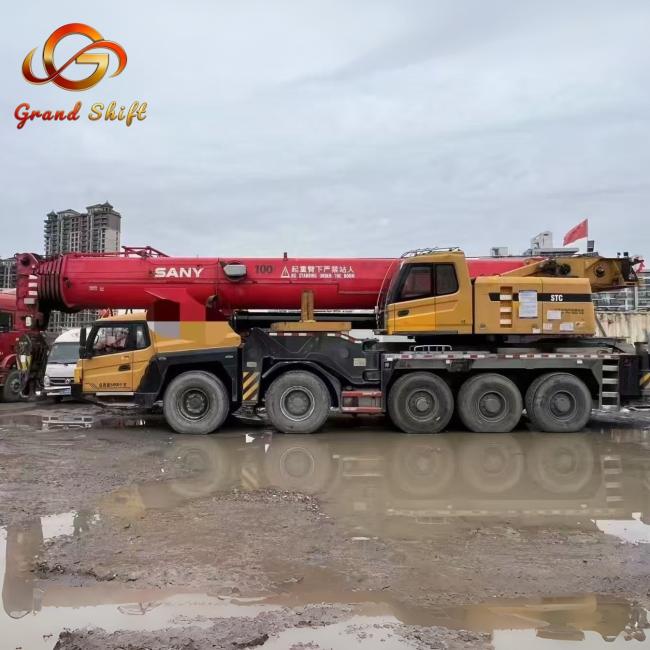

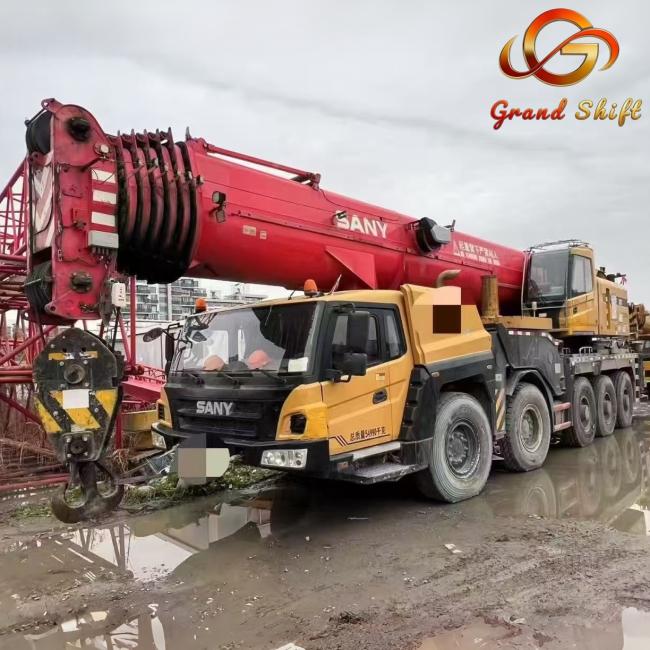

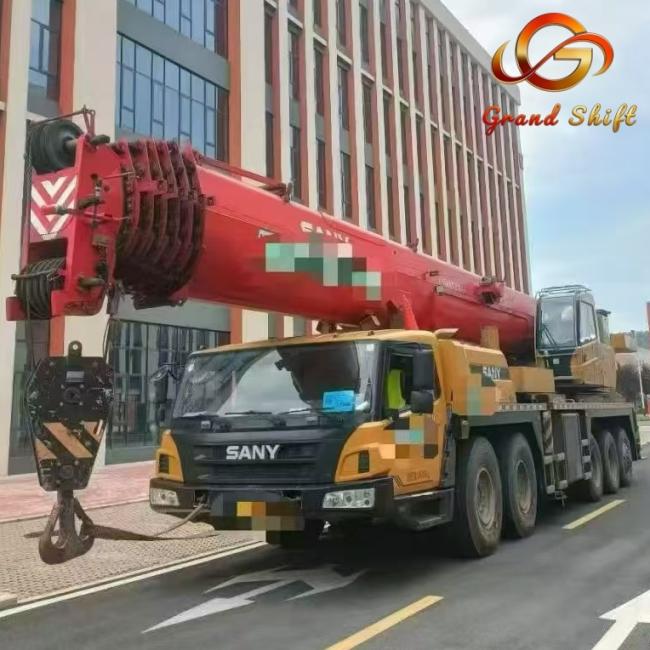

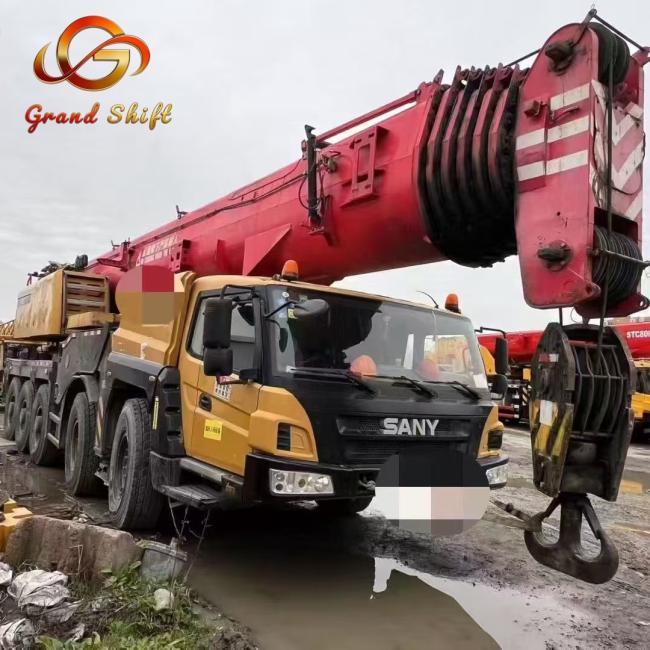

Used SANY SAC1000T7 100 Ton Capacity All Terrain Mobile Truck Crane with 63m Main Boom Heavy Lifting Equipment
Price:
130000-140000USD
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
SANY
Product Description
Full Technical Specifications
1. Basic Machine Information
| Item | Specification |
|---|---|
| Brand | SANY |
| Model | SAC1000T7 |
| Crane Type | All Terrain Truck Crane / Mobile Crane |
| Maximum Rated Lifting Capacity | 100 Ton (t) |
| Maximum Lifting Moment | 7271 kN·m |
| Total Operating Weight | 54.99 Ton (t) |
| Total Counterweight | 50 Ton (t) |
| Condition | Used / Second Hand (Good Working Condition) |
| Declaration Model | SYM5550JQZSAC1000T7 |
2. Lifting & Boom System Parameters
| Item | Specification | Unit |
|---|---|---|
| Main Boom Type | U-shaped High-strength Steel Boom | - |
| Number of Main Boom Sections | 7 Sections | - |
| Full-extended Main Boom Length | 63 | m |
| Maximum Lifting Height (Main Boom + Auxiliary Boom) | 92.5 | m |
| Auxiliary Boom Length | 34 (with extension sections) | m |
| Auxiliary Boom Installation Angle | 0°, 15°, 30° | ° |
| Main Winch Max. Single-rope Lifting Speed (No-load) | 130 | m/min |
| Auxiliary Winch Max. Single-rope Lifting Speed (No-load) | 130 | m/min |
| Main Boom Full-telescoping Time | 450 | s |
| Main Boom Full-luffing Time | 60/110 | s |
| Maximum Slewing Speed | 2 | r/min |
| Minimum Operating Radius | 3 | m |
| Tail Swing Radius | 4.8 | m |
| Outrigger Span (Longitudinal × Transverse) | 9.0 × 8.5 | m |
3. Chassis & Power System Parameters
| Item | Specification | Unit |
|---|---|---|
| Engine Model | Mercedes-Benz OM502LA (Euro III Emission) | - |
| Rated Engine Power | 350 @ 1800 | kW/rpm |
| Maximum Engine Torque | 2300 @ 1080 | N·m/rpm |
| Transmission | ZF 12-speed Automatic Transmission | - |
| Number of Axles | 5 Axles | - |
| Number of Tires | 10 Tires | - |
| Tire Specification | 385/95R25 | - |
| Maximum Travel Speed | 90 | km/h |
| Minimum Turning Radius | 8.5 | m |
| Maximum Climbing Gradient | 60 | % |
| Approach Angle / Departure Angle | 21 / 21 | ° |
| Minimum Ground Clearance | 300 | mm |
| Wheel Base | 2600+1800+1650+1650 | mm |
4. Overall Dimension Parameters
| Item | Specification | Unit |
|---|---|---|
| Overall Machine Length | 14000 | mm |
| Overall Machine Width | 2800 | mm |
| Overall Machine Height | 4000 | mm |
5. Working Environment & Performance
| Item | Specification | Unit |
|---|---|---|
| Working Temperature Range | -20 ~ +40 | ℃ |
| Hydraulic System Main Pump | Rexroth Main Pump | - |
| Control System | SANY Intelligent Crane Control System | - |
| Safety Features | Load Moment Indicator (LMI), Overload Protection, Emergency Stop | - |
6. Additional Configuration (From Actual Unit)
- Heavy-duty Lifting Hook Assembly
- Goose Head Auxiliary Boom
- Full Counterweight Configuration
- Single-engine Power System (Low Fuel Consumption, Easy Maintenance)
- Good Working Condition, Ready for Operation
![]()
![]()
![]()
![]()
- Spare Parts
![]()
![]()
