New Excavator TZ380 40 Ton High Efficiency Hydraulic Crawler Excavator For Landscaping With 240Kw Power
Price:
117,500.00-135,600.00 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
TZ
Product Description

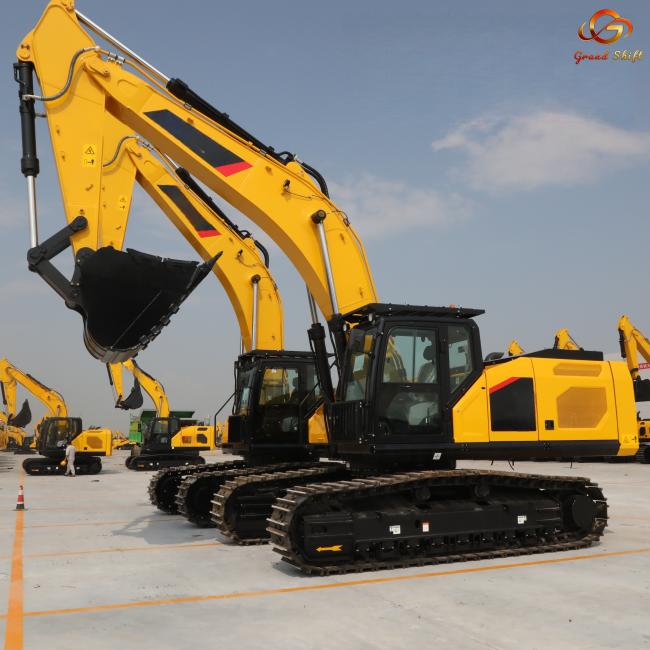

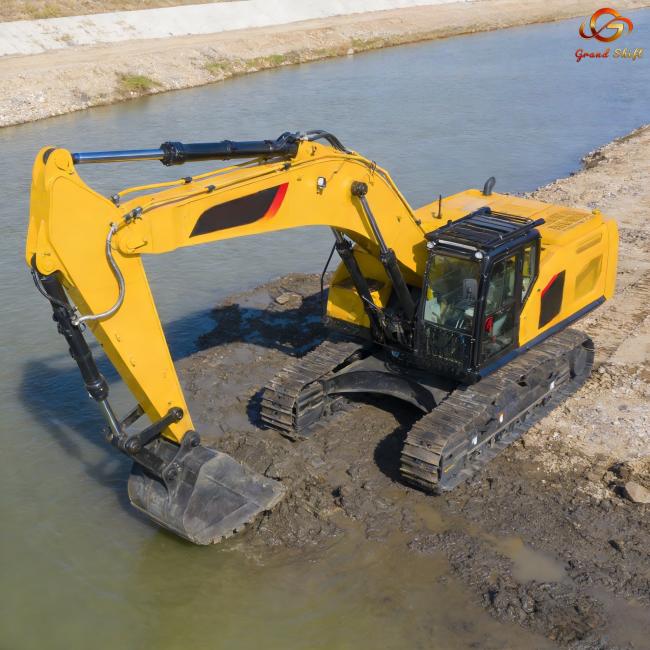

TZ380 Crawler Hydraulic Excavator - High Performance Construction Equipment
Working Ranges
| Item | Parameter | Value (mm) |
|---|---|---|
| a | Max. digging height | 10072 |
| b | Max. dumping height | 7038 |
| c | Max. digging depth | 7076 |
| e | Max. vertical digging depth | 6847 |
| f | Max. digging reach on ground | 10800 |
| g | Min. swinging radius | 4385 |
Dimensions
| Item | Parameter | Value (mm) |
|---|---|---|
| A | Overall length | 11512 |
| B | Overall width | 3180 |
| C | Overall height | 3681 |
| D | Overall width of upper structure | 3030 |
| E | Track length | 5100 |
| F | Chassis width | 3190 |
| G | Track shoe width | 600 |
| H | Track length on ground | 4140 |
| I | Track gauge | 2590 |
| J | Counterweight clearance | 1263 |
| K | Min. ground clearance | 550 |
| L | Min. tail swinging radius | 3510 |
| M | Track height | 1142 |
Key Specifications
| Parameter | Unit | Value |
|---|---|---|
| Product model | -- | TZ380 |
| Operating weight | kg | 39200 |
| Bucket capacity | m³ | 1.9 |
Motor Specifications
| Parameter | Unit | Value |
|---|---|---|
| Engine Brand | -- | Cumis |
| Direct injection | -- | ✓ |
| 4-stroke | -- | ✓ |
| Water cooled | -- | ✓ |
| No. of cylinders | -- | 6 |
| Rated power | kW/rpm |
240/1900 |
| Displacement | L | 8.9 |
Oil Capacity
| Parameter | Unit | Value |
|---|---|---|
| Fuel tank | L | 580 |
| Hydraulic tank | L | 290 |
| Engine oil | L | 40 |
Hydraulic System
| Parameter | Unit | Value |
|---|---|---|
| Main pump rated flow | L/min | 2*306 |
| Pressure-main valve | MPa | 34.3 |
| Pressure-travel system | MPa | 34.3 |
| Pressure-swing system | MPa | 27 |
| Pressure-pilot system | MPa | 3.9 |
Main Performance
| Parameter | Unit | Value |
|---|---|---|
| Travel speed (high/low) | km/h | 5.2/3.0 |
| Swing speed | r/min | 8.6 |
| Gradeability | ° | 35 |
| Ground pressure | kPa | 69 |
| Bucket digging force | kN | 245 |
| Arm digging force | kN | 245 |
| Max. traction force | kN | 320 |
Standard Configuration
| Parameter | Unit | Value |
|---|---|---|
| Boom length | mm | 6500 |
| Arm length | mm | 2800 |
| Bucket capacity | m³ | 1.9 |
Excavator Parts
