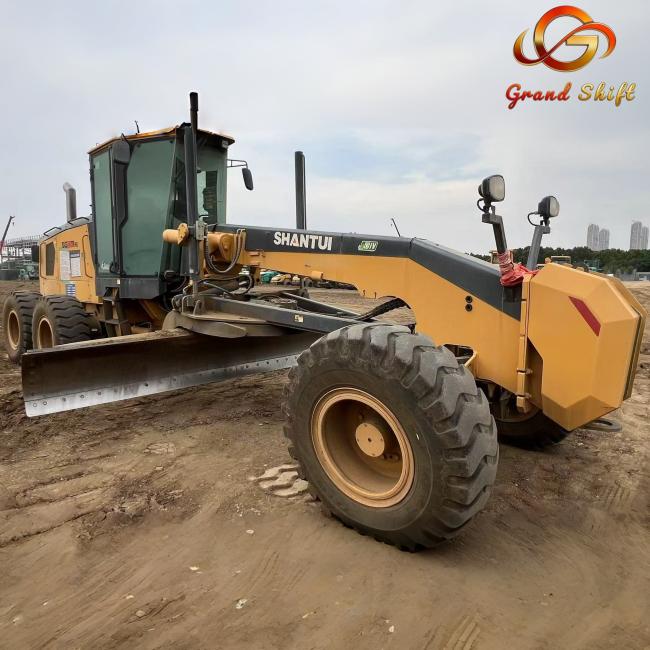

Used 2023 Shantui SG21 215HP Motor Grader 17Ton Operating Weight 4.27m Blade for Leveling
Price:
50000-60000USD
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
Shantui
Product Description
Full Technical Specifications
1. Basic Machine Information
| Item | Specification |
|---|---|
| Brand | Shantui |
| Model | SG21 (SG21-B6 / SG21-C6 / SG21-G) |
| Machine Type | Motor Grader / Road Grader (Note: Not a bulldozer) |
| Condition | Used / Second Hand (Good Working Condition) |
| Operating Weight | 17,000 kg (17 Ton) |
| Working Hours (From Dashboard) | 1261.4 h |
| Emission Standard | China IV / Euro IV (for Weichai version); China II / Euro II (for Coms version) |
2. Engine System (Coms Engine Version - Export Mainstream)
| Parameter | Specification | Unit |
|---|---|---|
| Engine Model | Coms 6CTAA8.3-C215 (Cums replaced as required) | - |
| Engine Type | 6-cylinder, inline, turbocharged, water-cooled diesel | - |
| Rated Power / Rated Speed | 160 @ 2200 | kW/rpm |
| Rated Horsepower | 215 @ 2200 | HP/rpm |
| Maximum Torque / Speed | 980 @ 1500 | N·m/rpm |
| Displacement | 8.3 | L |
| Minimum Fuel Consumption | 202 | g/kW·h |
3. Engine System (Weichai Version - Domestic Mainstream)
| Parameter | Specification | Unit |
|---|---|---|
| Engine Model | Weichai WP7 | - |
| Rated Power / Rated Speed | 162 @ 2200 | kW/rpm |
| Rated Horsepower | 220 @ 2200 | HP/rpm |
4. Blade & Working Performance
| Item | Specification | Unit |
|---|---|---|
| Blade Length (Standard) | 4270 | mm |
| Blade Height (Chord) | 635 | mm |
| Blade Rotation Angle | 360° | ° |
| Blade Side Tilt Angle | 90° | ° |
| Blade Cutting Angle Range | 27° ~ 73° | ° |
| Maximum Digging Depth | 500 | mm |
| Maximum Traction Force | 95 | kN |
| Maximum Gradeability | 20° (≈36%) | ° |
| Minimum Turning Radius | 7500 | mm |
5. Travel & Transmission System
| Item | Specification | Unit |
|---|---|---|
| Transmission Type | Hydraulic torque converter + electro-hydraulic power shift (6 forward / 3 reverse gears) | - |
| Maximum Forward Speed | 39.7 | km/h |
| Maximum Reverse Speed | 25.6 | km/h |
| Steering System | Fully hydraulic articulated steering | - |
| Brake System | Hydraulic service brake + parking brake | - |
6. Overall Dimension & Capacity
| Item | Specification | Unit |
|---|---|---|
| Overall Dimensions (L×W×H) | 9430 × 2600 × 3400 | mm |
| Minimum Ground Clearance | 500 | mm |
| Wheel Base | 6200 | mm |
| Tire Specification | 17.5-25 / 20.5-25 | - |
| Fuel Tank Capacity | 360 | L |
| Hydraulic Oil Tank Capacity | 85 | L |
7. Hydraulic & Control System
| Item | Specification |
|---|---|
| Main Pump | Load-sensitive variable piston pump |
| Control Mode | Electro-hydraulic proportional pilot control |
| Working Device | Heavy-duty slewing bearing, wear-resistant cutting edge |
| Safety Features | Emergency stop, overload protection, blade obstacle avoidance system |
8. Optional Attachments
- Front dozer blade / front scarifier
- Rear ripper (3-5 shanks)
- Snow wing / side cutter
- Automatic leveling system (GPS/GNSS)
9. Product Features
- Powerful Coms engine with high torque reserve, stable performance and low fuel consumption
- 360° rotatable blade for flexible and efficient road leveling, subgrade construction
- Ergonomic cab with wide vision, comfortable operation and low noise
- Easy maintenance with centralized lubrication points and accessible service access
- Widely used in road construction, mine site leveling, airport runway, farmland irrigation and other projects
![]()
![]()
![]()
![]()
![]()
![]()
-
