SANY 8018 New Generation Diesel Trailer Concrete Pump with 80 m³/h Output PLC Control
Price:
10000-40000USD
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
SANY
Product Description
Product Specifications
1. Basic Information
Brand: SANY
Model: HBT80.18 (New Generation)
Type: Trailer-Mounted Concrete Pump (Diesel Powered)
Condition: New / Refurbished
Place of Origin: Hunan, China (Mainland)
2. Pumping Performance
Max. Theoretical Concrete Output (High/Low Gear): 80 m³/h / 40 m³/h
Max. Theoretical Concrete Pressure (High/Low Gear): 18 MPa / 9 MPa
Hopper Capacity: 0.7 m³
Delivery Cylinder (Bore × Stroke): Φ200 mm × 1800 mm
S-Valve Diameter: Φ200 mm
Max. Aggregate Size: 40 mm
Applicable Concrete Slump Range: 80-230 mm
Max. Vertical Delivery Distance: 200 m
Max. Horizontal Delivery Distance: 600 m
3. Power System

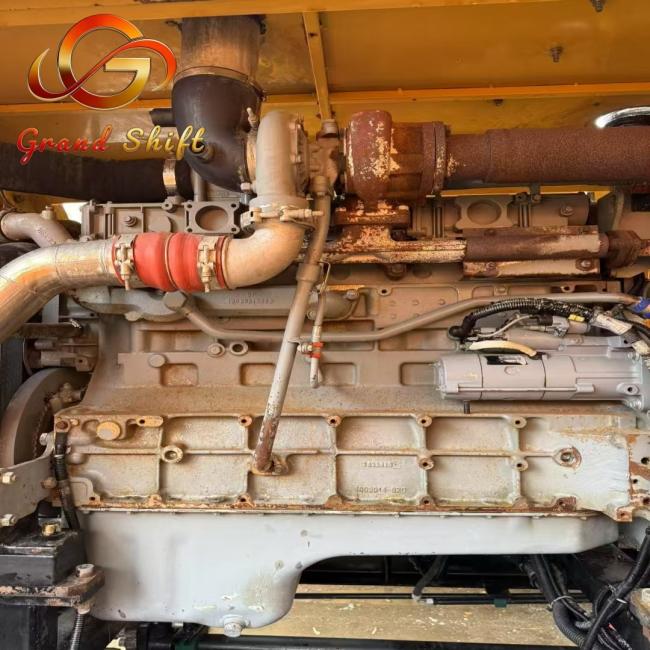

Power Source: Coms Diesel Engine
Rated Power: 174 kW (236 HP) @ 2200 rpm
Emission Standard: Euro III / China III (Optional)
Fuel Tank Capacity: 220 L

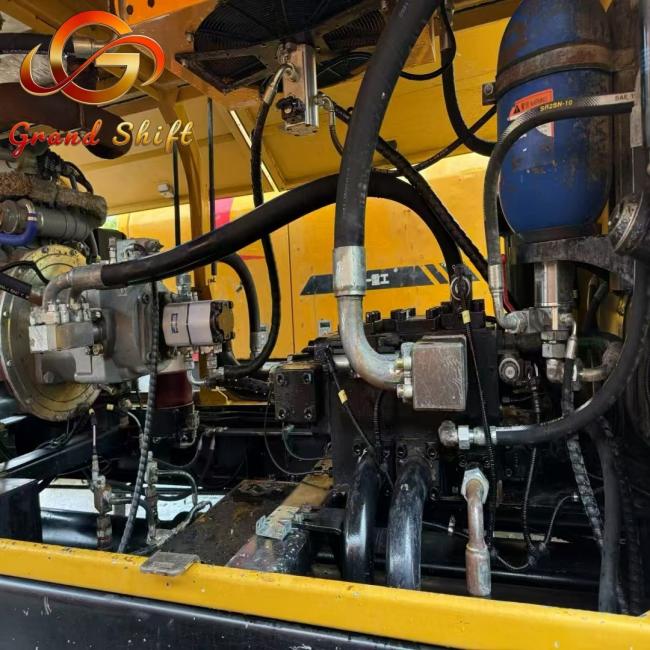

4. Hydraulic & Control System
Hydraulic System Type: Closed-Loop, Constant Power Control
Main Hydraulic Pump: Axial Piston Variable Pump
Max. Hydraulic System Pressure: 35 MPa
Hydraulic Oil Tank Capacity: 480 L
Cooling System: Air-Cooled Radiator

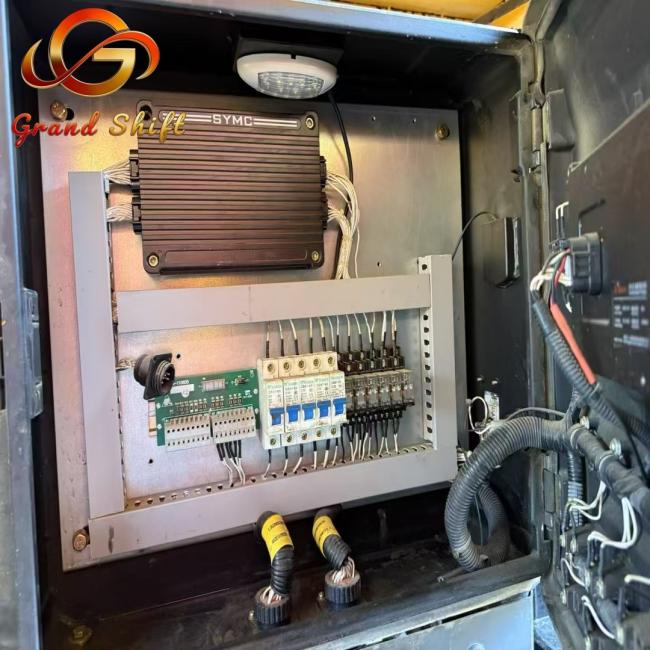

Control Mode: PLC + Wireless Remote Control
Lubrication System: Automatic Centralized Lubrication
5. Chassis & Structure
Trailer Type: Single Axle Trailer
Overall Dimensions (L×W×H): 7500 × 2100 × 2600 mm
Operating Weight: Approx. 7800 kg
Outrigger Type: Hydraulic Outriggers
Tire Specification: 11.00R20
6. Standard Configuration
- S-Valve reversing system
- Coms diesel engine
- Automatic centralized lubrication system
- Wireless remote control
- High-pressure water washing system
- Hydraulic outriggers
- Air-cooled hydraulic radiator
- New generation hydraulic system
![]()
![]()
![]()
![]()
-
