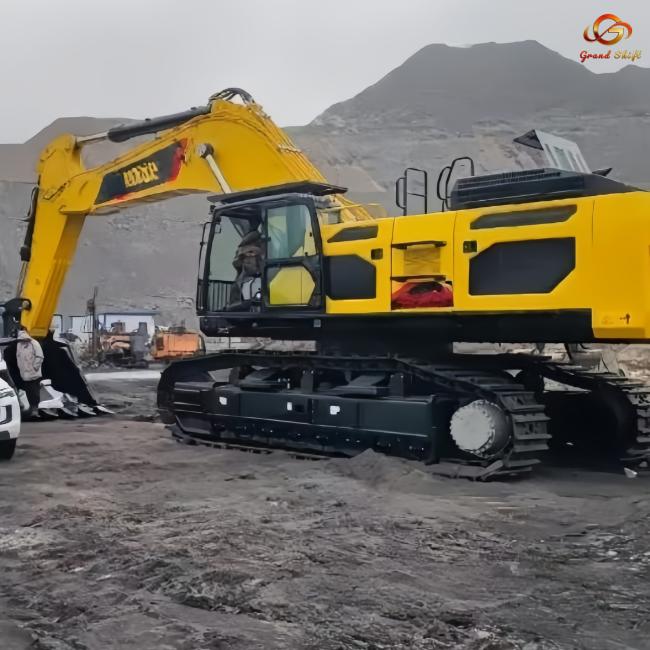

Chinese Brand New Excavator TZ750 77 Ton Hydraulic Crawler Excavator for Landscaping with 405-566 Kw Power
Price:
330,000.00-375,600.00 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
TZ
Product Description

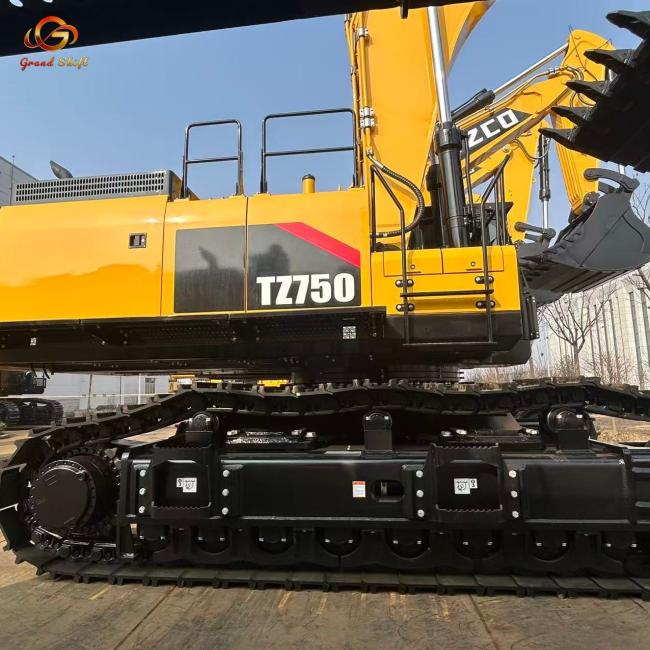

TZ750 Crawler Hydraulic Excavator - High Performance Construction Equipment
Working Ranges
| Item | Parameter | Value (mm) |
|---|---|---|
| a | Max. digging height | 11692 |
| b | Max. dumping height | 7667 |
| c | Max. digging depth | 7469 |
| e | Max. vertical digging depth | 6940 |
| f | Max. digging reach on ground | 11980 |
| g | Min. swinging radius | 5240 |
Dimensions
| Item | Parameter | Value (mm) |
|---|---|---|
| A | Overall length | 12840 |
| B | Overall width | 4510 |
| C | Overall height | 3710 |
| D | Overall width of upper structure | 3460 |
| E | Track length | 5950 |
| F | Chassis width | 4315 |
| G | Track shoe width | 650 |
| H | Track length on ground | 4710 |
| I | Track gauge | 3410(2810) |
| J | Counterweight clearance | 1610 |
| K | Min. ground clearance | 934 |
| L | Min. tail swinging radius | 4262 |
| M | Track height | 1461 |
Key Specifications
| Parameter | Unit | Value |
|---|---|---|
| Product model | -- | TZ750 |
| Operating weight | kg |
77400(Scania) 77000(WeiChai) |
| Bucket capacity | m³ | 4.6 |
Motor Specifications
| Parameter | Unit | Value |
|---|---|---|
| Engine Brand | -- |
Scania WeiChai |
| Direct injection | -- | ✓ |
| 4-stroke | -- | ✓ |
| Water cooled | -- | ✓ |
| No. of cylinders | -- | 8 |
| Rated power | kW/rpm |
405/1800 Scania 566/1900 WeiChai |
| Displacement | L | 16.6/16.6 |
Oil Capacity
| Parameter | Unit | Value |
|---|---|---|
| Fuel tank | L | 950 |
| Hydraulic tank | L | 670 |
| Engine oil | L | 52 |
Hydraulic System
| Parameter | Unit | Value |
|---|---|---|
| Main pump rated flow | L/min | 2*504 |
| Pressure-main valve | MPa | 34.3 |
| Pressure-travel system | MPa | 34.3 |
| Pressure-swing system | MPa | 26 |
| Pressure-pilot system | MPa | 3.9 |
Main Performance
| Parameter | Unit | Value |
|---|---|---|
| Travel speed (high/low) | km/h | 4.0/2.8 |
| Swing speed | r/min | 6.5 |
| Gradeability | ° | 35 |
| Ground pressure | kPa | 109 |
| Bucket digging force | kN | 398 |
| Arm digging force | kN | 334 |
| Max. traction force | kN | 506 |
Standard Configuration
| Parameter | Unit | Value |
|---|---|---|
| Boom length | mm | 7000 |
| Arm length | mm | 2900 |
| Bucket capacity | m³ | 4.6 |
Excavator Parts
