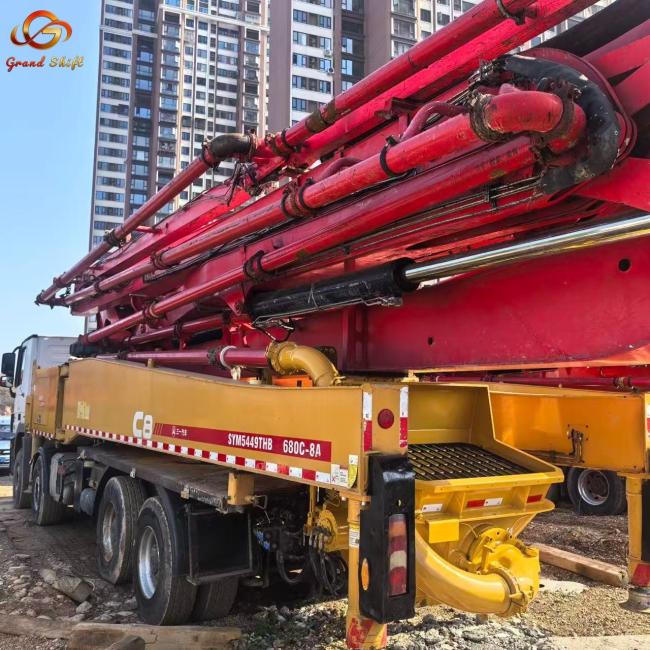

SANY 56m Concrete Pump Truck with Mercedes-Benz Actros Chassis

Brand: SANY

Model: 5449 (56m Boom Pump)

Type: Truck-Mounted Concrete Boom Pump

Condition: Used / Refurbished

Place of Origin: Hunan, China (Mainland)

Max. Theoretical Output: 180 m³/h

Max. Concrete Pressure: 8.3 MPa / 13 MPa (High/Low Gear)

Boom Vertical Reach: 56 m

Boom Horizontal Reach: 51.7 m

Boom Fold: 5 Sections, RZ-Type

Max. Aggregate Size: 40 mm

Hopper Capacity: 600 L

Chassis Brand: Mercedes-Benz Actros

Chassis Model: 4144 / 4844

Drive Type: 8×4

Total Vehicle Weight: 44000 kg

Engine: Coms Diesel Engine

Rated Power: 331 kW (450 HP)

Emission Standard: Euro III / China III (Optional)

Fuel Tank Capacity: 300 L

Cab Seats: 2 Persons

Hydraulic System: Closed-Loop, Constant Power

Main Pump: Axial Piston Variable Pump

Max. System Pressure: 35 MPa

Control Mode: Wireless Remote + Manual Control

Lubrication: Automatic Centralized Lubrication

Boom Stabilization: Anti-shake System

Overall Dimensions (L×W×H): 13800 × 2550 × 4000 mm

Outrigger Span (Front/Rear): 9.8 m / 8.7 m

Boom Rotation: 360° Continuous

Tire Specification: 315/80R22.5

• 5-section RZ-type boom
• Coms diesel engine
• Mercedes-Benz Actros 8×4 chassis
• Wireless remote control
• Automatic lubrication system
• High-pressure water washing system
• Hydraulic outriggers
• Boom anti-shake system
