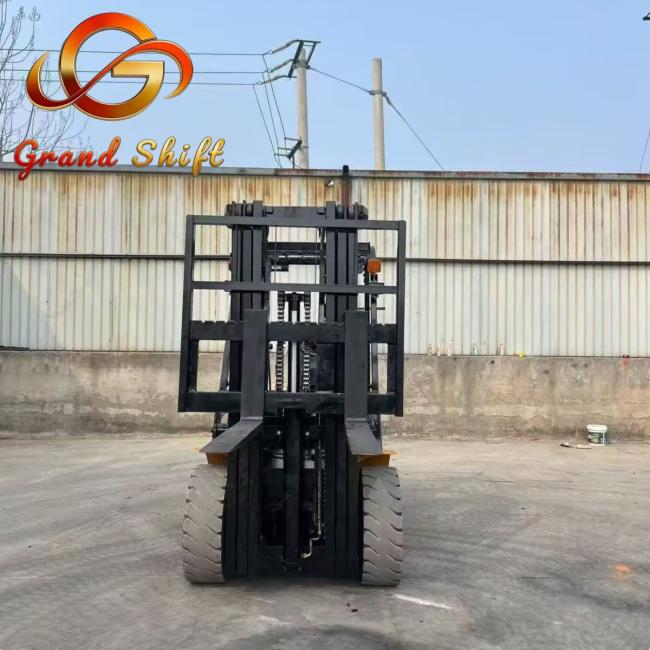

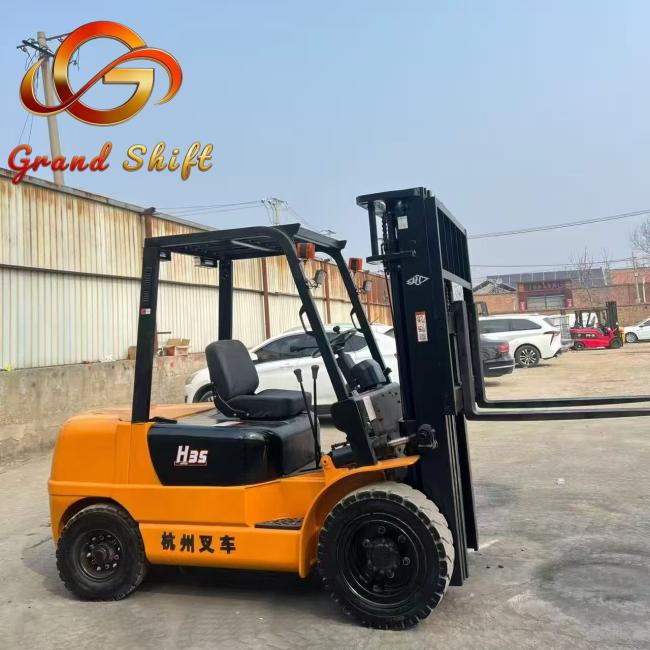

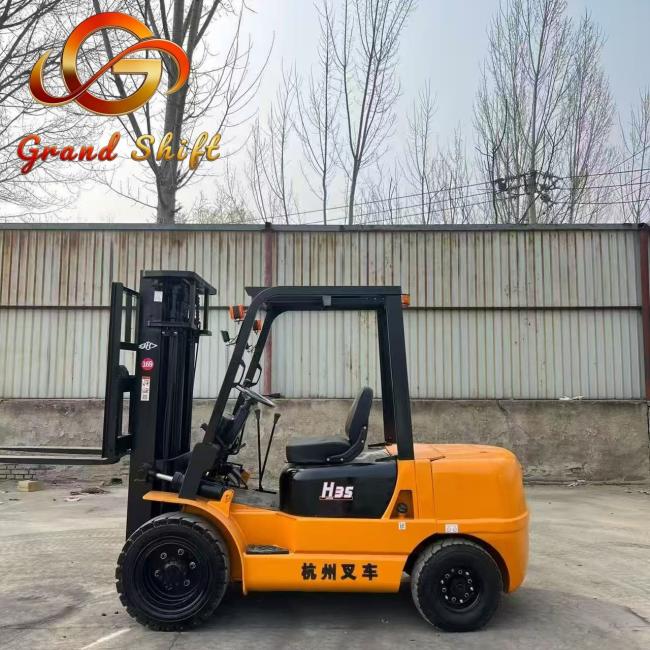

Hangcha H3s 3.5 Ton Diesel Forklift With Grand Shift Transmission And Cums Diesel Engine
The Hangcha H3S 3.5 ton diesel forklift is a high-performance industrial truck designed for heavy-duty material handling. Powered by a reliable Cums diesel engine, this forklift delivers strong torque, low fuel consumption, and stable operation in demanding environments. Equipped with Grand Shift transmission, it provides smooth direction changes and reduced operator fatigue. The H3S series is widely used in warehouses, logistics centers, construction sites, and manufacturing plants. Optional attachments such as side shift and fork positioner are available. Whether you need a new unit or a cost-effective used forklift, the Hangcha H3S 3.5 ton is a durable and efficient choice.
| Parameter | Specification |
|---|---|
| Brand | Hangcha |
| Model | H3S Series, 3.5 ton capacity |
| Load Capacity | 3500 kg (3.5 tons) |
| Power Type | Diesel |
| Engine Brand | Cums (originally cums, replaced as requested) |
| Transmission Type | Grand Shift (Enhanced torque converter / smooth shifting) |
| Load Center | 500 mm |
| Lift Height | Standard 3000 mm (customizable) |
| Mast Tilt Angle (Forward/Backward) | 6° / 12° |
| Overall Length (to fork face) | ~ 2700 mm |
| Overall Width | ~ 1225 mm |
| Turning Radius (outside) | ~ 2450 mm |
| Travel Speed (full load) | ~ 18 km/h |
| Lift Speed (full load) | ~ 350 mm/s |
| Gradeability (full load) | ~ 20% |
| Tire Type | Pneumatic / Cushion (depending on spec) |
| Fuel Tank Capacity | ~ 60 L |
| Emission Standard | China III / EU Stage IIIA (approx.) |
| Mast Type | Standard 2-stage or 3-stage (optional) |
- Powerful Cums diesel engine with low fuel consumption and high torque output
-
Grand Shift transmission for smooth direction changes and reduced operator fatigue
-
3500 kg load capacity suitable for heavy pallets and oversized goods
-
Robust Hangcha chassis for long service life in demanding environments
-
Wide-opening engine hood for easy maintenance and quick filter access
-
Low center of gravity and wide wheelbase for excellent stability
-
Optional side shift and fork positioner for enhanced productivity
-
Available as new or cost-effective used units
|
|
|
|
|
|
