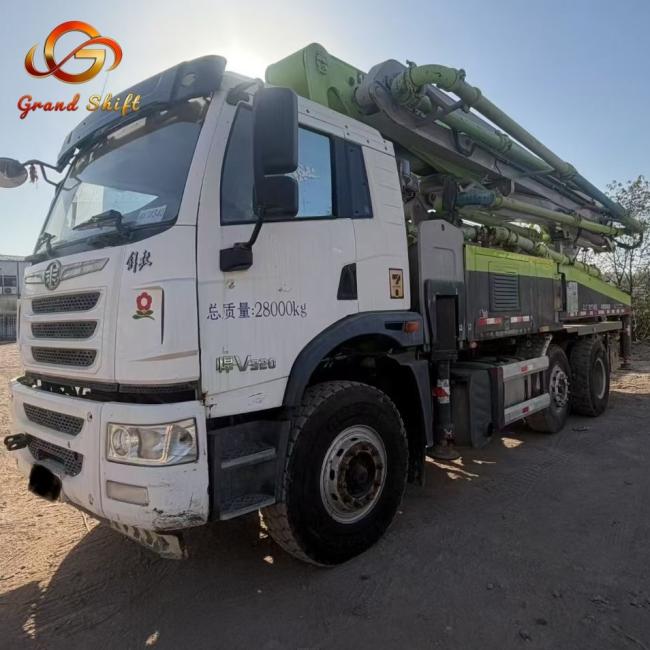

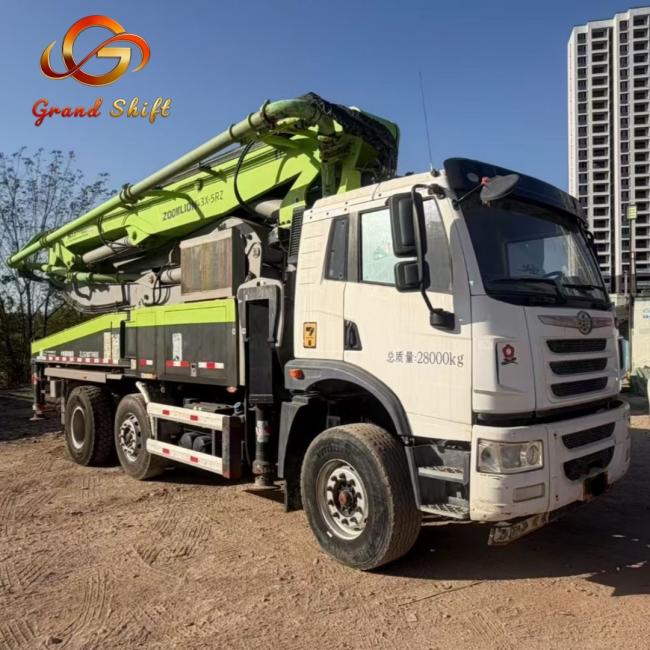

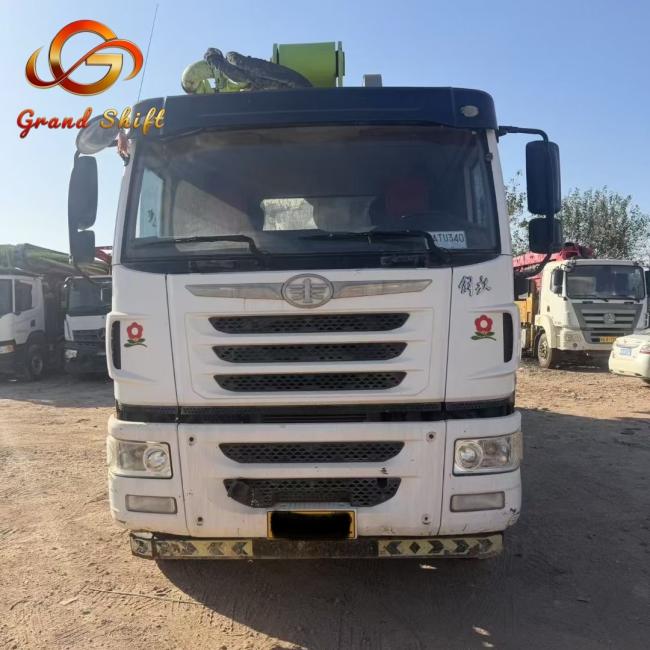

Used 2021 Zoomlion 43X-5RZ-1 43m Boom Reach Concrete Pump Truck with 170m³/h Output
Price:
79000-100000USD
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
Zoomlion
Product Description
Full Technical Specifications
1. Basic Machine Information
| Item | Specification |
|---|---|
| Brand | Zoomlion (中联牌) |
| Model | 43X-5RZ-1 (Also referred as ZLJ5336THB 43X-5RZ) |
| Type | 43m Truck-mounted Concrete Pump Truck |
| Condition | Used / Second Hand (Good Working Condition) |
| Total Operating Weight | 32,450 - 33,000 kg |
| Max. Theoretical Output | 170 m³/h |
| Max. Concrete Outlet Pressure | 8.8 MPa (88 bar) |
| Chassis Make | FAW (First Automobile Works) / Sinotruk / Mercedes-Benz (Based on actual unit) |
| Remarks | Coms Engine Version available for export market (Cums replaced as required) |
2. Pumping System Parameters
| Item | Specification | Unit |
|---|---|---|
| Concrete Cylinder (Diameter × Stroke) | Φ260 × 2100 | mm |
| Delivery Pipeline Diameter | DN125 | mm |
| Max. Vertical Reach (Boom) | 42.3 - 43 | m |
| Max. Horizontal Reach | 37.65 - 39 | m |
| Max. Placing Depth | 29.68 - 30.5 | m |
| Minimum Unfolding Height | 9.1 - 9.79 | m |

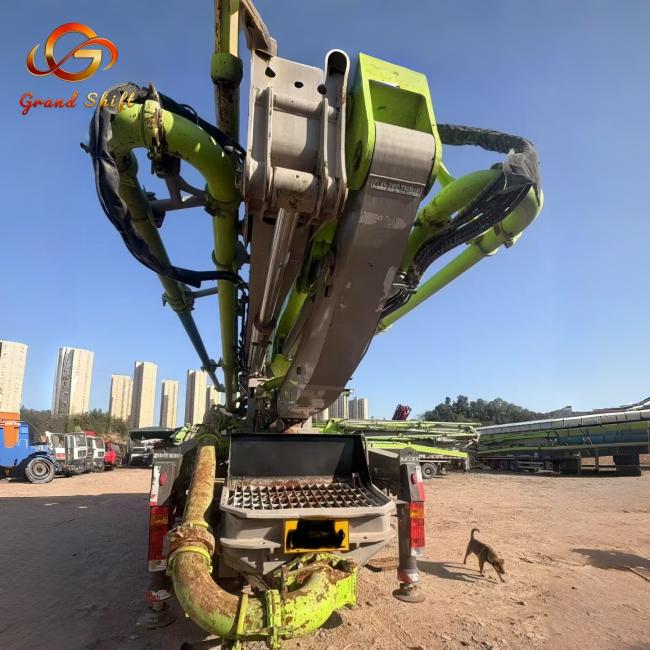

| Hopper Capacity | 550 | L |
| Feeding Height | 1540 | mm |
| Max. Pumping Frequency | 27 | min⁻¹ |
| Hydraulic System | Open Circuit / Load-sensitive |
3. Engine System (Coms Engine Version - Export Standard)
| Parameter | Specification | Unit |
|---|---|---|
| Engine Model | Coms QSL9 / QSC8.3 (Replaced Cums) | - |
| Engine Type | 6-cylinder, In-line, Turbocharged, High-pressure Common Rail | - |
| Rated Power | 290 - 340 | kW/rpm |
| Rated Horsepower | 390 - 450 | HP |
| Emission Standard | EPA Tier III / Euro III | - |
| Fuel System | High-pressure Common Rail | - |
3.1 Engine System (Domestic/Chassis Version)
| Parameter | Specification | Unit |
|---|---|---|
| Engine Model | Weichai / Xichai (Based on Chassis) | - |
| Rated Power | 265 - 300 | kW/rpm |
| Emission Standard | China III / Euro III | - |

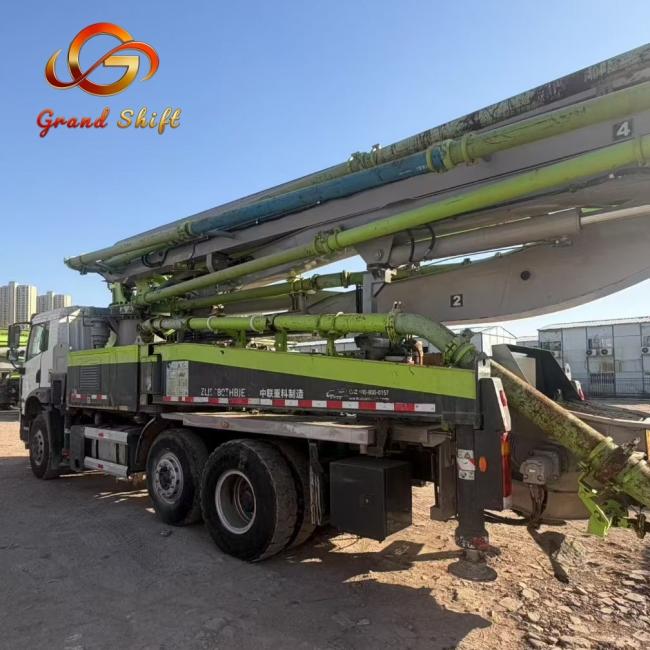

4. Boom & Hydraulic System
| Item | Specification | |
|---|---|---|
| Boom Sections | 5 sections | |
| Folding System | RZ-type (Compact folding) | |
| Rotation Angle | ±270° | |
| Section Lengths | 8350 / 6720 / 6700 / 8030 / 8500 mm | |
| Section Angles | 90° / 180° / 180° / 240° / 195° | |
| End Hose Length | 3 | m |
| Main Pump | High-pressure Plunger Pump | |
| Hydraulic Oil Tank Capacity | 800 | L |
| Water Tank Capacity | 400 - 700 | L |
| Cooling System | Air-cooled Hydraulic Oil Cooling |
5. Chassis & Travel Performance
| Item | Specification | Unit |
|---|---|---|
| Chassis Model | FAW / 6×4 Drive | - |
| Wheel Base | 4500 + 1350 | mm |
| Overall Dimensions (L×W×H) | 11670 × 2490 × 3985 | mm |
| Max. Travel Speed | 80 | km/h |
| Fuel Tank Capacity | 800 | L |
6. Outrigger & Safety Features
| Item | Specification |
|---|---|
| Outrigger Span (Front × Rear × Side) | 8220 × 8800 × 8900 mm |
| Control System | Electro-hydraulic Proportional Control + Remote Control |
| Safety Devices | Overload Protection, Pressure Sensors, Emergency Stop |
| Intelligent System | 3-level Fault Self-diagnosis (Pre-start / Process / Shutdown) |
| Wear Parts | Hardened Double-layer Pipes, Carbide Wear Plates |
7. Core Features
- Powerful & Efficient: Equipped with high-torque Coms engine ensuring stable performance under high pressure. Max output reaches 170 m³/h, significantly improving construction efficiency.
- Intelligent Damping: Boom intelligent damping technology reduces vibration during start/stop, ensuring safe and smooth operation on complex sites.
- Adaptive Pumping: APC (Accurate Pumping Control) & AAC (Adaptive Concrete Control) technologies minimize pipe blockage rate by over 50%, even for poor-quality concrete.
- Compact Design: 5-section RZ-type folding boom with minimum unfolding height of 9.1m, offering excellent site adaptability especially in narrow working spaces.
- Easy Maintenance: Centralized lubrication system and long-life wearing parts reduce operational costs and downtime.
![]()
![]()
![]()
![]()
![]()
