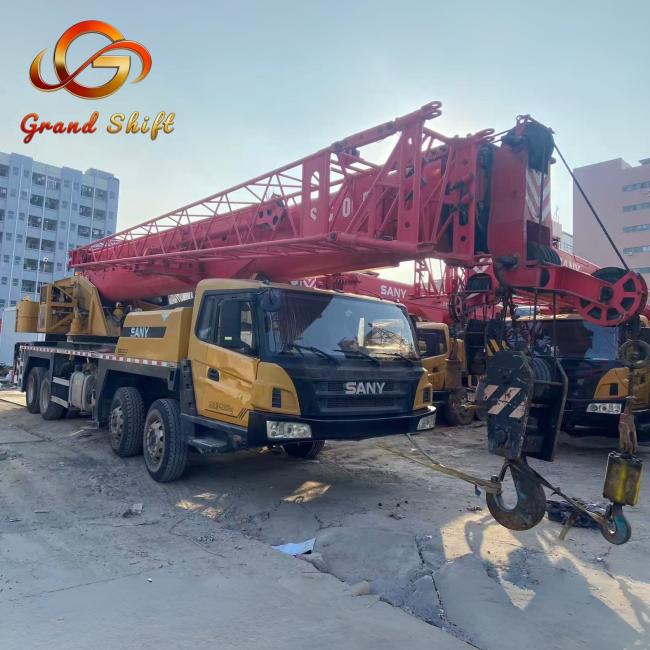

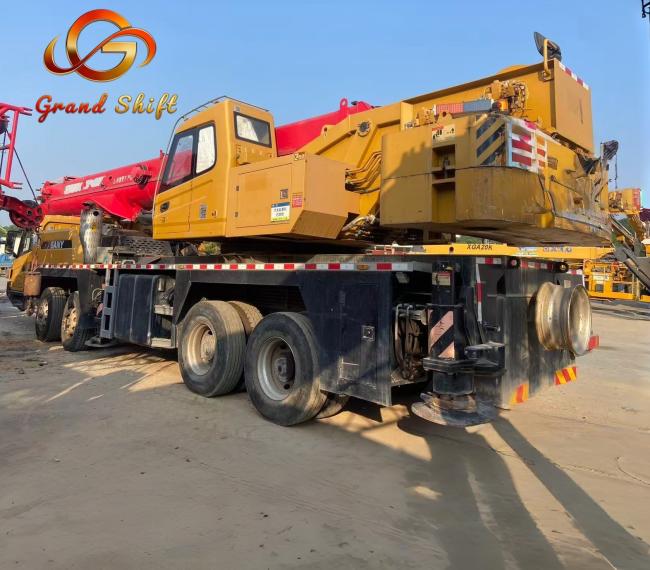

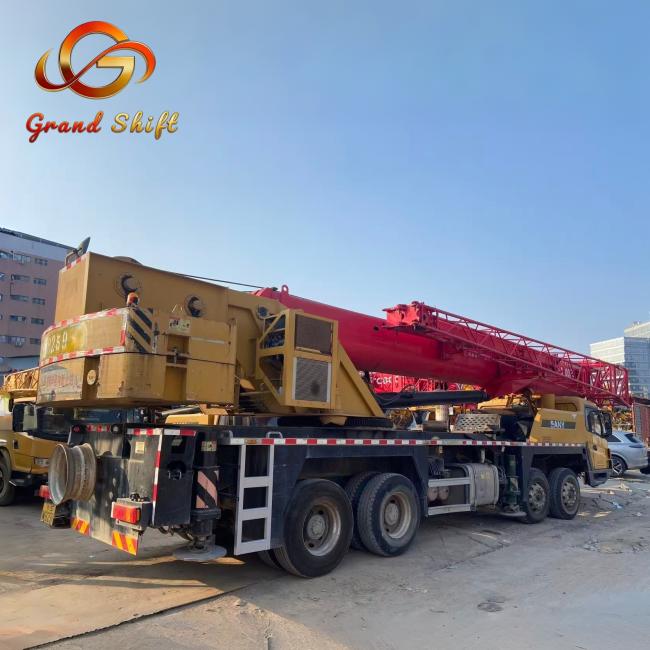

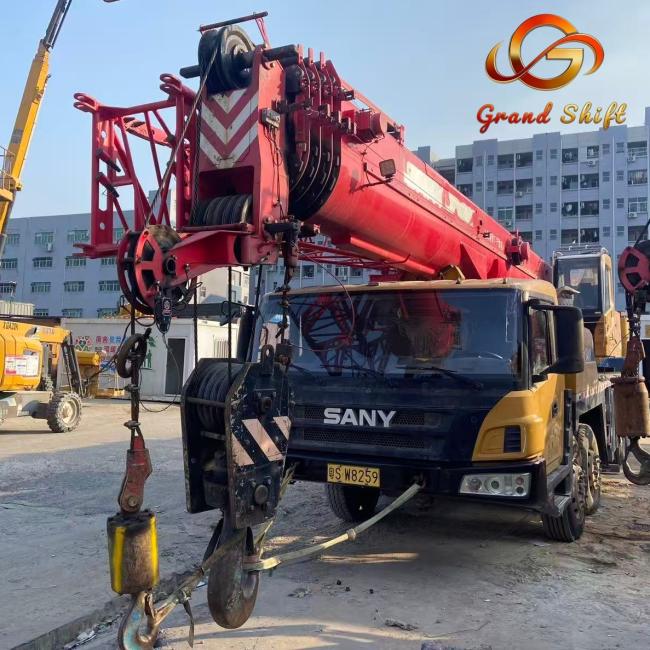

Used SANY STC500E5 50 Ton Capacity All Terrain Truck Crane Used with 43m Boom for Heavy Lifting
Price:
71500-85000USD
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
SANY
Product Description
Full Technical Specifications
1. Basic Machine Information
| Item | Specification |
|---|---|
| Brand | SANY |
| Model | STC500E5 (SANY 500E5) |
| Type | 50 Ton Truck-mounted Crane / Mobile Crane |
| Condition | Used / Second Hand (Good Working Condition) |
| Maximum Rated Lifting Capacity | 50 Ton (t) |
| Maximum Lifting Moment | 1764 kN·m |
| Total Operating Weight | 41 Ton (t) |
| Declaration Model | SYM5445JQZSTC500E5 |
2. Lifting & Boom System Parameters
| Item | Specification | Unit |
|---|---|---|
| Main Boom Type | U-shaped High-strength Steel Boom | - |
| Number of Main Boom Sections | 5 Sections | - |
| Full-extended Main Boom Length | 43 | m |
| Maximum Lifting Height (Main Boom + Auxiliary Boom) | 58 | m |
| Auxiliary Boom Length | 15 | m |
| Auxiliary Boom Installation Angle | 0°, 15°, 30° | ° |
| Main Winch Max. Single-rope Lifting Speed (No-load) | 130 | m/min |
| Auxiliary Winch Max. Single-rope Lifting Speed (No-load) | 130 | m/min |
| Main Boom Full-telescoping Time | 150 | s |
| Main Boom Full-luffing Time | 50 | s |
| Maximum Slewing Speed | 2 | r/min |
| Minimum Operating Radius | 3 | m |
| Tail Swing Radius | 3.8 | m |
| Outrigger Span (Longitudinal × Transverse) | 6.6 × 7.2 | m |
3. Chassis & Power System Parameters
| Item | Specification | Unit |
|---|---|---|
| Engine Model | Coms QSL9.3-C325 (Cums replaced as required) | - |
| Rated Engine Power | 239 @ 2200 | kW/rpm |
| Rated Horsepower | 325 @ 2200 | HP/rpm |
| Maximum Engine Torque | 1250 @ 1400 | N·m/rpm |
| Emission Standard | China V / Euro V | - |
| Transmission | Fast 12-speed Manual Transmission | - |
| Number of Axles | 5 Axles | - |
| Number of Tires | 10 Tires | - |
| Tire Specification | 385/95R25 | - |
| Maximum Travel Speed | 80 | km/h |
| Minimum Turning Radius | 12 | m |
| Maximum Climbing Gradient | 45 | % |
| Approach Angle / Departure Angle | 18 / 14 | ° |
| Minimum Ground Clearance | 270 | mm |
| Wheel Base | 1525+4050+1350+1350 | mm |
4. Overall Dimension Parameters
| Item | Specification | Unit |
|---|---|---|
| Overall Machine Length | 13850 | mm |
| Overall Machine Width | 2800 | mm |
| Overall Machine Height | 3750 | mm |
5. Working Environment & Performance
| Item | Specification | Unit |
|---|---|---|
| Working Temperature Range | -20 ~ +40 | ℃ |
| Hydraulic System Main Pump | Rexroth Load-sensitive Variable Piston Pump | - |
| Control System | SANY Intelligent Crane Control System | - |
| Safety Features | Load Moment Indicator (LMI), Overload Protection, Emergency Stop | - |
6. Additional Configuration (From Actual Unit)
- Heavy-duty Lifting Hook Assembly (50t / 10t dual hooks)
- Goose Head Auxiliary Boom
- Full Counterweight Configuration
- Good Working Condition, Ready for Operation
![]()
![]()
![]()
![]()
-
