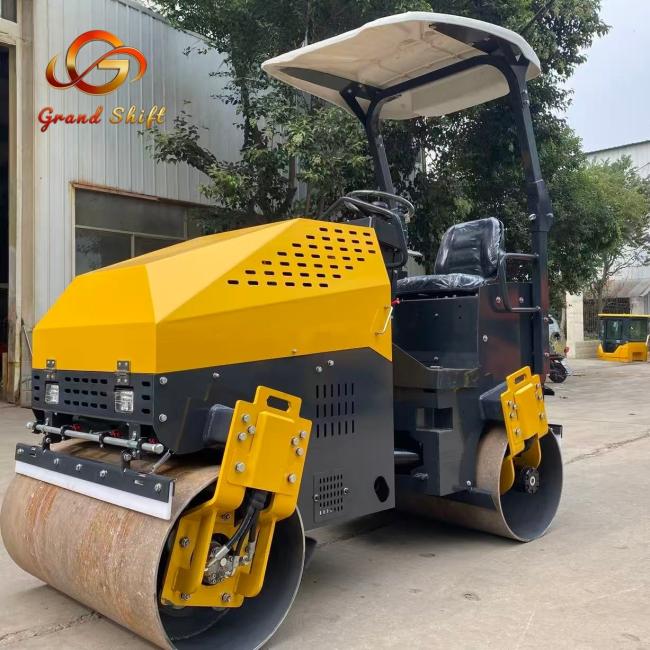

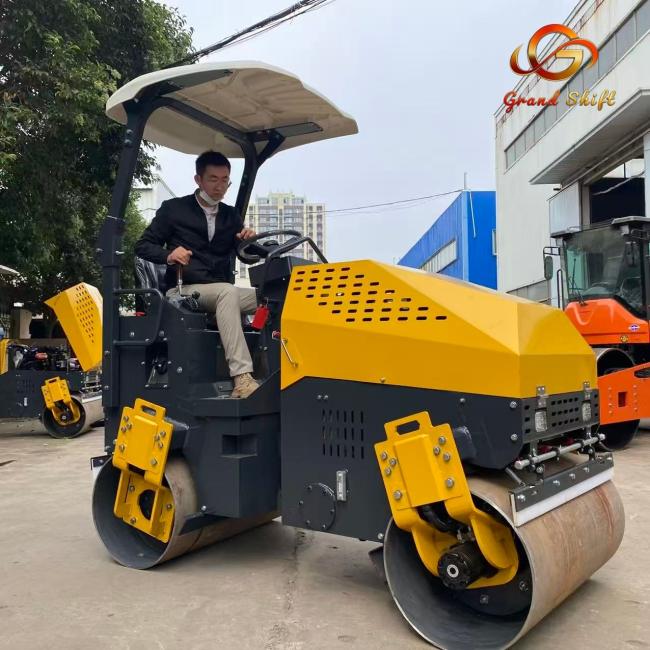

New LX-3TR Double Drum Vibratory Road Roller 6kW Diesel Engine 5kN Exciting Force For Road Construction
Price:
7500-10000USD
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
others
Product Description
Full Technical Specifications
1. Basic Machine Information
| Item | Specification |
|---|---|
| Brand | Grand Shift / LX (Brand as per catalog) |
| Model | LX-3TR |
| Type | Double Drum Vibratory Road Roller / Mini Compactor |
| Condition | New / Brand New |
| Operating Weight | 3 Ton (t) |
| Nominal Operating Weight | 2800 - 3000 kg |
| Application | Asphalt Pavement, Backfill Compaction, Narrow Site Construction |
2. Compaction & Vibration Parameters
| Item | Specification | Unit |
|---|---|---|
| Static Line Load | 125 - 110 N/mm | |
| Vibration Frequency | 75 | Hz |
| Exciting Force | 45 | kN |
| Nominal Vibration Amplitude | 0.5 - 1.5 | mm |
| Water Tank Capacity | 95 | L |
| Vibration Mode | Mechanical Transmission / Hydraulic Drive |
3. Engine System
| Parameter | Specification | Unit |
|---|---|---|
| Engine Model | 3B2-35V31 | - |
| Engine Type | Water-cooled, In-line 3-cylinder Diesel Engine | - |
| Power | 26 | kW |
| Rated Speed | 2200 - 2400 | rpm |
| Fuel Tank Capacity | 65 | L |
| Lubricating Oil Capacity | 6 | L |
| Emission Standard | China II / Euro III (Standard diesel engine) | - |
3.1 Engine Alternative (If Coms Required for Export)
| Parameter | Specification | Unit |
|---|---|---|
| Engine Model | Coms 3B Series (Replaced as required) | - |
| Power | 25 - 30 | kW |
| Emission | EPA Tier III / Euro III | - |
4. Travel & Dimension Specifications
| Item | Specification | Unit |
|---|---|---|
| Travel Speed | 0 - 10 | km/h |
| Turning Radius | 1750 | mm |
| Gradeability | 30 | % |
| Steel Drum Width | 1100 | mm |
| Steel Drum Diameter | 560 | mm |
| Wheel Track | 1140 | mm |
| Overall Length | 2350 | mm |
| Overall Width | 1230 | mm |
| Overall Height | 2500 | mm |
| Packing Size | 2360 × 1250 × 2500 | mm |
5. Hydraulic & Control System
| Item | Specification |
|---|---|
| Drive System | Hydraulic Motor Drive |
| Steering System | Hydraulic Power Steering |
| Control Mode | Lever Operation (Vibration/Steering) |
| Cooling System | Water Cooling + Hydraulic Oil Cooling |
| Safety Features | Parking Brake, Roll-over Protective Structure (ROPS), Canopy |
6. Product Features
- High Compaction Efficiency: Equipped with a 26kW powerful engine and 45kN exciting force, ensuring efficient compaction for asphalt and base courses.
- Double Drum Design: Full-width drum contact and hydraulic drive provide uniform compaction and excellent maneuverability.
- Ergonomic Operation: Open canopy design with wide visibility, comfortable seat, and flexible steering wheel reduce operator fatigue.
- Large Fuel Tank: 65L fuel tank for long-hour continuous working without frequent refueling.
- Compact Structure: Small turning radius and dimensions make it ideal for narrow construction sites, sidewalks, and landscaping projects.
![]()
![]()
