Used Zoomlion 43X-5RZ Concrete Pump Truck with 43m Boom, 606 Pump Working Hours, and Twin-Cylinder Hydraulic Pump
Price:
57150-70000USD
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
Zoomlion
Product Description
Full Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Vehicle Basics | Model | Zoomlion 43X-5RZ (ZLJ5280THBJF) |
| Manufacturer | Zoomlion Heavy Industry | |
| Chassis | FAW J6 6x4 Truck Chassis | |
| Total Vehicle Weight | 28,000 kg | |
| Axle Configuration | 3 Axles (6x4) | |
| Drive Type | Rear-Wheel Drive | |
| Condition | Used, Well-Maintained | |
| Working Hours | 606 H (Pump Working Hours, from Display) | |
| Boom System | Boom Type | 5-Section RZ Folding Boom |
| Max Vertical Reach | 43 m | |
| Max Horizontal Reach | 39 m | |
| Min. Unfolding Height | 9.1 m | |
| Slewing Range | 360° Continuous Rotation | |
| Boom Pipe Material | High-Strength Wear-Resistant Steel | |
| Pipe Diameter | 125 mm (Standard) | |
| Boom Control | Proportional Remote Control + In-Cab Control | |
| Pumping System | Max Theoretical Output | 140 m³/h (High Pressure) / 90 m³/h (Low Pressure) |
| Max Concrete Pressure | Up to 13 MPa | |
| Pump Type | Twin-Cylinder Hydraulic Concrete Pump | |
| Total Piped Volume | 37,864 m³ (from Display) | |
| Hopper Capacity | 700 L | |
| S-Valve or Rock Valve | S-Valve (Wear-Resistant Alloy) | |
| Concrete Cylinder Diameter | 230 mm | |
| Stroke Length | 2100 mm | |
| Rated Pumping Frequency | 0-28 cycles/min | |
| Power & Hydraulics | Engine | Coms (per your requirement) |
| Rated Power | 300 kW / 408 HP @ 2000 rpm | |
| Emission Standard | Euro 5 (or China V) | |
| Hydraulic System | Load-Sensing Closed-Center System | |
| Main Pump | Rexroth A11VO Series Variable Piston Pump | |
| Hydraulic Tank Capacity | 600 L | |
| Oil Cooler | Air-to-Oil Cooler with Temperature Control | |
| Oil Temperature (at Check) | 30.6℃ (from Display) | |
| Support & Stability | Support Mode | Full Support (Standard) / Single-Side Support (Optional) |
| Outrigger Configuration | 4-Point Hydraulic Outriggers | |
| Max Outrigger Extension | Front: 6.5 m / Rear: 5.8 m | |
| Outrigger Control | Proportional Control with Pressure Monitoring | |
| Ground Bearing Pressure | ≤ 0.8 MPa | |
| Control & Monitoring | Control System | Zoomlion Intelligent Control System |
| Display | Color Touchscreen with Real-Time Monitoring | |
| Monitoring Items | Engine RPM, Oil Pressure, Oil Temperature, Pump Hours, Piped Volume, Boom Angle | |
| Self-Diagnosis | Built-In Fault Code & Alarm System | |
| Control Options | Wired Remote / Wireless Remote / In-Cab Joystick | |
| Safety Features | Emergency Stop, Anti-Tipping Protection, Boom Limit Switch | |
| Operational Details | Applicable Concrete Slump | 120-230 mm |
| Max Aggregate Size | 40 mm | |
| Hopper Agitator Speed | 15-20 rpm | |
| Water Pump Pressure | 3-5 bar | |
| Max Climb Gradient | 30% | |
| Travel Speed | 80 km/h (Max Road Speed) | |
| Turning Radius | 10.5 m | |
| Dimensions & Weights | Overall Length | 11.8 m |
| Overall Width | 2.5 m | |
| Overall Height (Boom Folded) | 3.8 m | |
| Front Overhang | 1.5 m | |
| Rear Overhang | 3.2 m | |
| Curb Weight | 25,500 kg | |
| Payload Capacity (for Boom & Pump) | 2,500 kg | |
| Fuel Tank Capacity | 400 L | |
| Hydraulic Oil Capacity | 600 L | |
| Concrete Pump Oil Capacity | 200 L |
3. Detailed Product Description

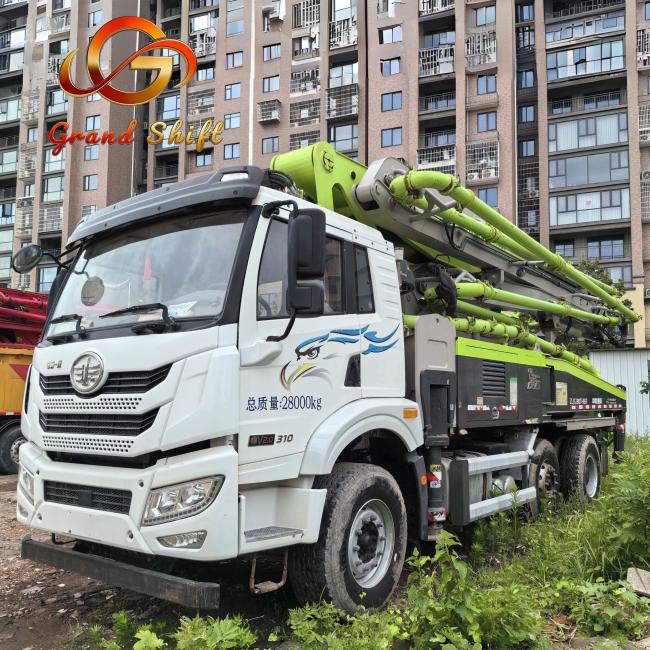

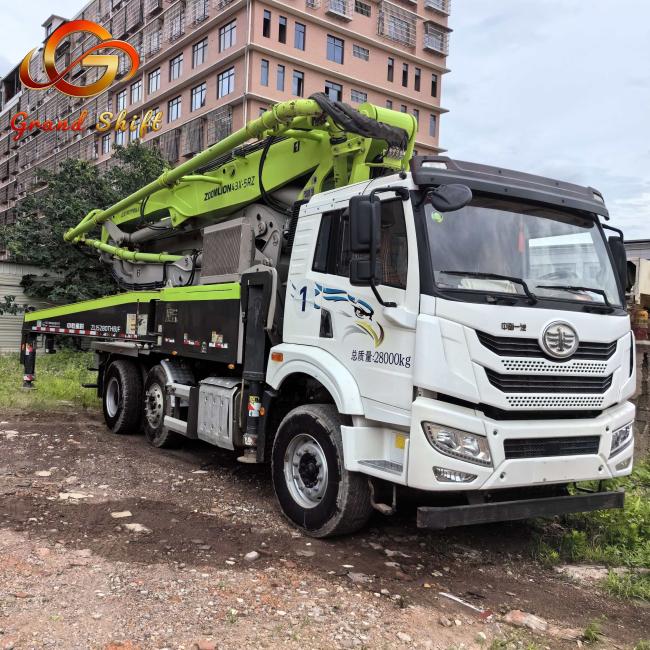

This is a used Zoomlion 43X-5RZ concrete pump truck, mounted on a FAW 6x4 heavy-duty chassis, designed for high-efficiency concrete delivery in construction projects. The unit is in excellent working condition with only 606 pump working hours and a total piped volume of 37,864 m³, indicating low usage and good maintenance.
Key Features:

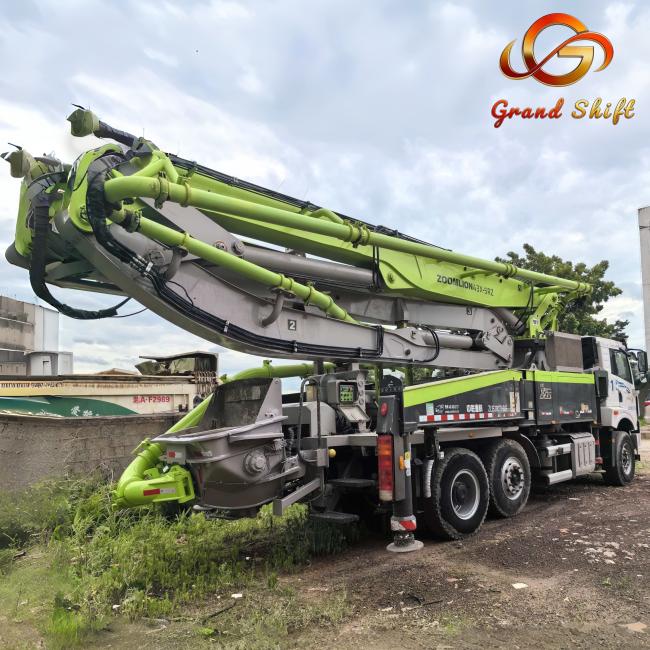

- 43m 5-Section RZ Boom: Offers 360° continuous rotation with a max vertical reach of 43m and horizontal reach of 39m, ideal for mid-rise buildings, bridge decks, and confined job sites with limited space.
- High-Performance Pumping System: Twin-cylinder pump delivers up to 140 m³/h output at high pressure, with wear-resistant S-valve and hardened concrete cylinders for long service life.

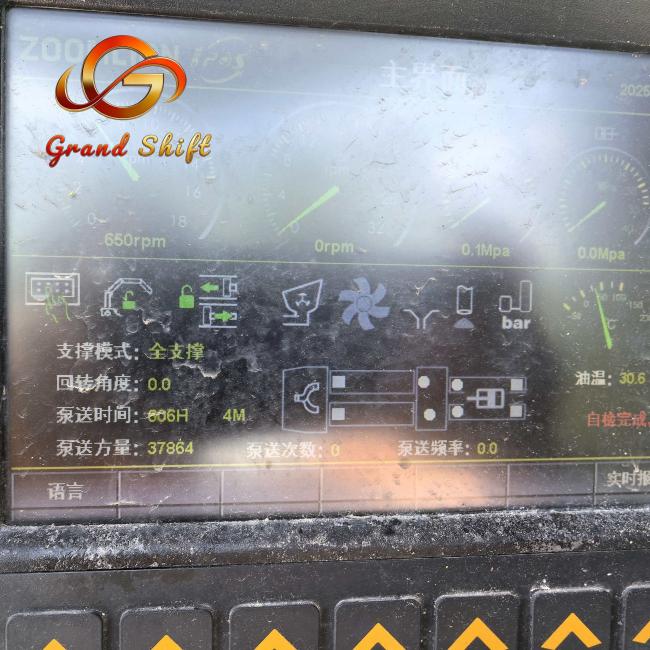

- Intelligent Control System: Real-time monitoring of engine, hydraulics, and pumping parameters via color touchscreen, with built-in self-diagnosis for quick fault resolution.
- Stable & Safe Operation: Full support mode with 4 hydraulic outriggers ensures maximum stability, with anti-tipping protection and emergency stop functions for enhanced safety.
- Durable Components: High-strength boom pipe, reinforced hopper, and heavy-duty chassis are built to withstand the rigors of continuous construction use.
This pump truck is ready for immediate deployment to your job site, with all core systems tested and verified. Perfect for contractors, rental companies, and construction firms looking for a reliable, low-hour used concrete pump truck at a competitive price.
