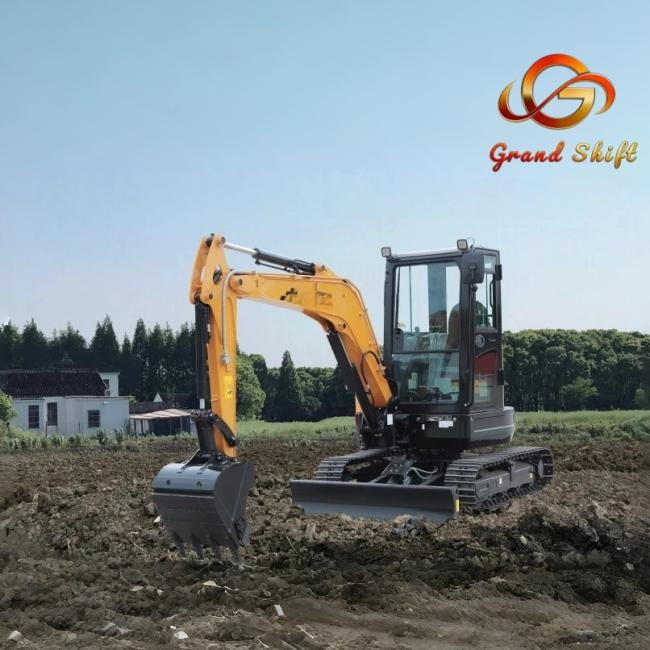

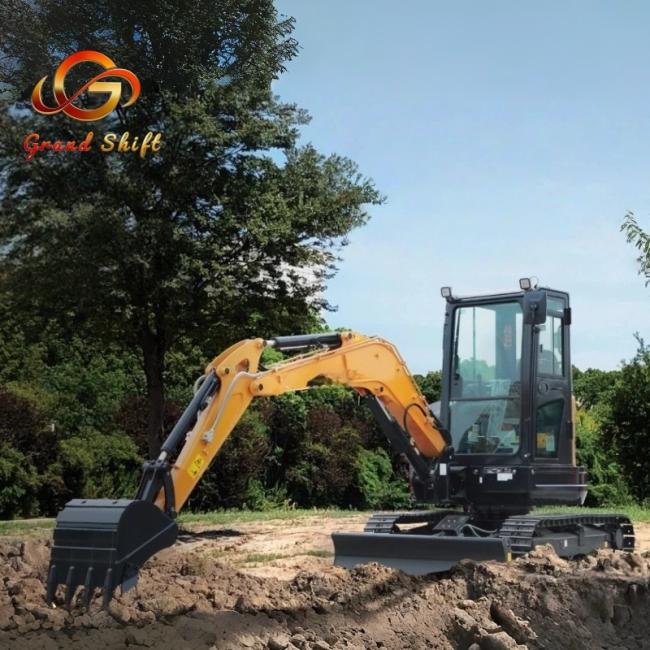

Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Price:
6,000 –16,000 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
SANY
Product Description
Basic Parameters
| Parameter | Specification |
|---|---|
| Operating Weight | 3780 kg |
| Standard Bucket Capacity | 0.12 m³ |
| Rated Power | 20.2 kW / 2200 rpm |
| Max. Torque | 104.5 Nm / 1320 rpm |
| Displacement | 1.642 L |
Performance
| Parameter | Specification |
|---|---|
| Bucket Digging Force | 30.4 kN |
| Arm Digging Force | 18.2 kN |
| Swing Speed | 10 rpm |
| Travel Speed | 4.2 km/h (High) / 2.4 km/h (Low) |
| Gradeability | 58% |
| Ground Pressure | 33-35 kPa |
Dimensions
| Parameter | Specification |
|---|---|
| Overall Length (Transport) | 4905 mm |
| Overall Width (Transport/Operation) | 1720 mm |
| Overall Height (Transport) | 2555 mm |
| Tail Swing Radius | 860 mm |
| Track Length on Ground | 1645 mm |
| Track Width | 300 mm |
Working Range
| Parameter | Specification |
|---|---|
| Max. Digging Height | 4865 mm |
| Max. Dumping Height | 3445 mm |
| Max. Digging Depth | 3115 mm |
| Max. Digging Radius | 5480 mm |
| Min. Swing Radius | 2465 mm |
Fluid Capacities
| Parameter | Specification |
|---|---|
| Fuel Tank | 50 L |
| Hydraulic Oil Tank | 40 L |
| Engine Oil | 6 L |
| Coolant (Antifreeze) | 3.8 L |
| Travel Reduction Gear Oil | 2 × 0.7 L |
|
|
|
|
