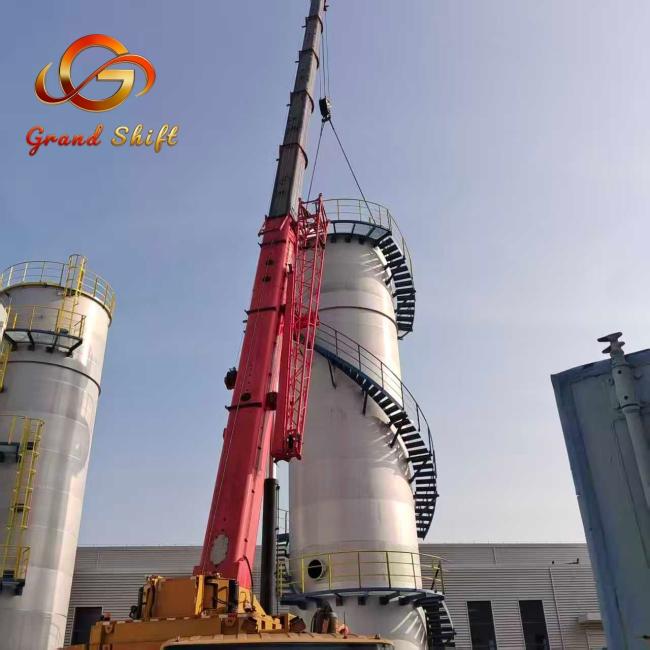

2021 SANY STC1300C7 Full Hydraulic Truck Crane with 130 Ton Capacity and National VI Emission Standard
Price:
133000-175000USD
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
SANY
Product Description

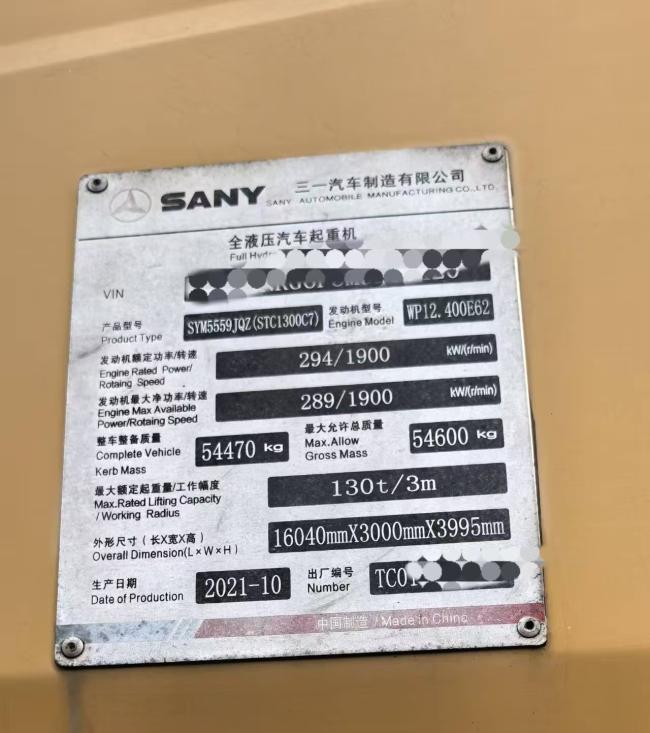

Basic Vehicle Information
| Item | English Parameter |
|---|---|
| Product Title | Full Hydraulic Truck Crane |
| Manufacturer | SANY Automobile Manufacturing Co., Ltd. |
| Country of Origin | Made in China |
| VIN | Vehicle Identification Number |
| Product Model | SYM5559JQZ (STC1300C7) |
| Factory Serial Number | TC01XXXXXX |
| Date of Production | 2021-10 |
| Vehicle Type | Mobile Crane (Truck Mounted Crane) |
| Emission Standard | National VI (Euro 6 Equivalent) |
Chassis and Powertrain Parameters
| Item | English Parameter |
|---|---|
| Engine Model | WP12.400E62 (coms optional) |
| Engine Rated Power / Rotating Speed | 294 kW @ 1900 r/min |
| Engine Max Net Power / Rotating Speed | 289 kW @ 1900 r/min |
| Displacement | 11.596 L |
| Fuel Type | Diesel |
| Drive Type | 8×4 |
| Steering Type | Hydraulic Power Steering |
| Brake System | Air Brake + ABS + ASR |
| Clutch Type | Dry Single Plate Clutch |
| Transmission Type | Manual Gearbox (12 Forward + 2 Reverse) |
| Max Travel Speed | 80 km/h |
| Grade Ability | 30% |
| Min Turning Radius | 24 m |
| Approach Angle | 16° |
| Departure Angle | 14° |
Crane Working Performance Parameters
| Item | English Parameter |
|---|---|
| Max Rated Lifting Capacity / Working Radius | 130 t @ 3 m |
| Max Lifting Moment | 4312 kN·m |
| Main Boom Length Range | 13.7 m - 78 m |
| Jib Length Range | 13 m - 36 m |
| Max Lifting Height (Main Boom) | 78 m |
| Max Lifting Height (Main Boom + Jib) | 114 m |
| Max Working Radius (Main Boom) | 70 m |
| Max Working Radius (Main Boom + Jib) | 90 m |
| Boom Telescoping Speed | 0 - 120 m/min |
| Hoist Line Speed (Single Rope, No Load) | 0 - 130 m/min |
| Hoist Line Speed (Single Rope, Full Load) | 0 - 65 m/min |
| Slew Speed | 0 - 2 r/min |

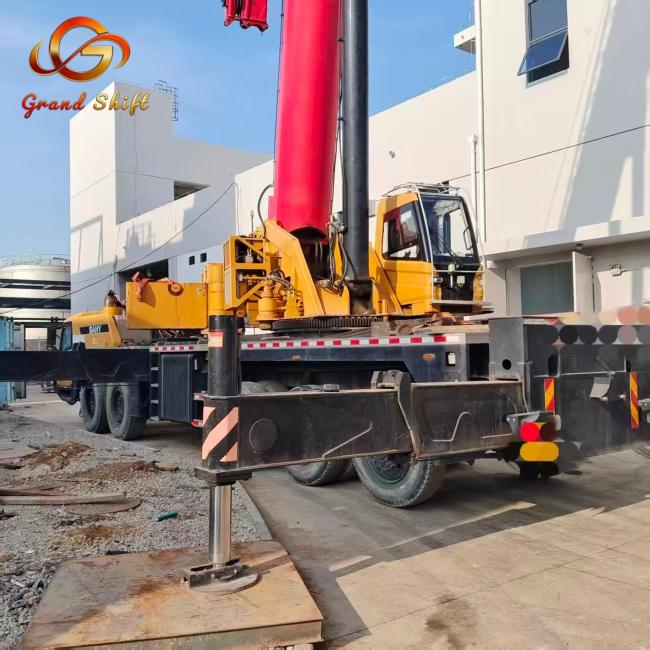

| Outrigger Span (Full Extended) | 8.7 m × 8.7 m |
| Outrigger Span (Half Extended) | 5.8 m × 8.7 m |
| Max Wind Speed for Safe Operation | 12 m/s (Level 6) |
Vehicle Dimension and Mass Parameters
| Item | English Parameter |
|---|---|
| Overall Dimension (L×W×H) | 16040 mm × 3000 mm × 3995 mm |
| Complete Vehicle Kerb Mass | 54470 kg |
| Max Allowable Gross Mass | 54600 kg |
| Front Axle Load (Kerb Mass) | 13600 kg |
| Middle Axle Load (Kerb Mass) | 20435 kg |
| Rear Axle Load (Kerb Mass) | 20435 kg |
| Wheelbase | 1650 mm + 4050 mm + 1350 mm + 1350 mm |
| Track Width (Front) | 2280 mm |
| Track Width (Middle/Rear) | 2280 mm |
| Tire Specification | 445/95 R25 |
| Ground Clearance (Min) | 280 mm |
Safety and Control System
| Item | English Parameter |
|---|---|

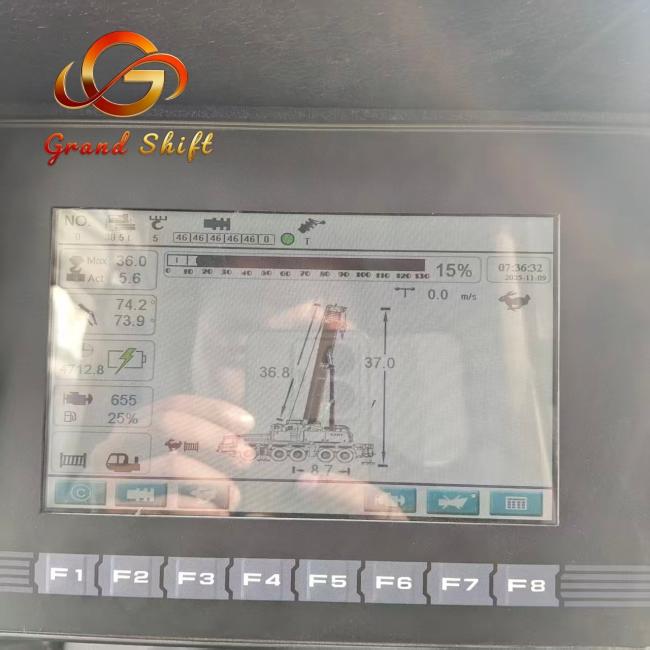

| Load Moment Limiter (LML) | Standard Configuration |
| Overhoist Limiter | Standard Configuration |
| Overlower Limiter | Standard Configuration |
| Slew Limiter | Standard Configuration |
| Outrigger Interlock System | Standard Configuration |
| Emergency Stop System | Standard Configuration |
| Level Indicator | Standard Configuration |
| Wind Speed Indicator | Optional Configuration |
| Cab Air Conditioner | Standard Configuration |
| Cab Heater | Standard Configuration |
| Reverse Camera | Standard Configuration |
| Central Lubrication System | Optional Configuration |
