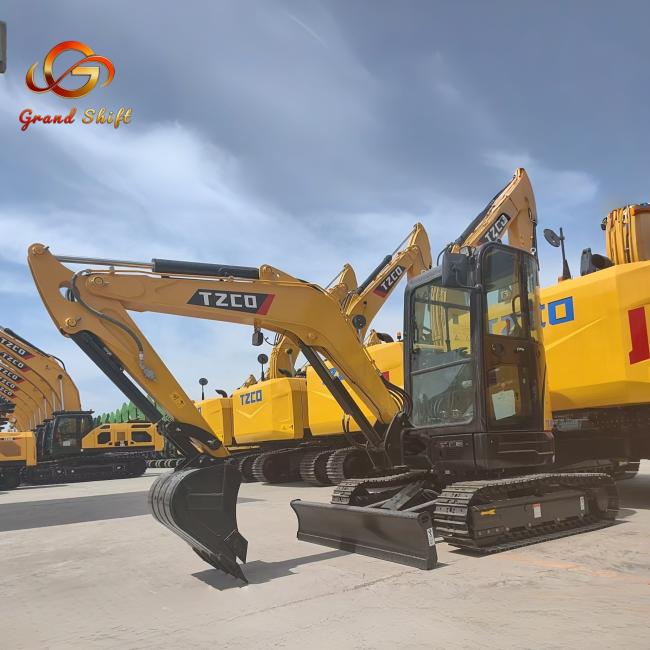

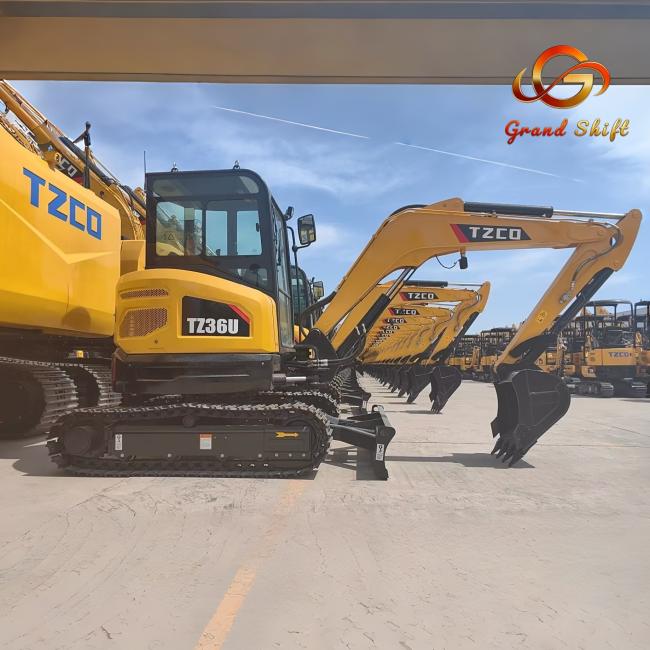

TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
Price:
14,500.00-16,500.00 USD (Contact us for a detailed quote)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
TZ
Product Description
Product Overview
| Item | Description |
|---|---|
| Product Model | TZ36U |
| Type | Crawler Hydraulic Excavator |
| Operating Weight | 3.6 ton (3600 kg) |
| Bucket Capacity | 0.13 m³ |
| Engine Brand | Yanmar |
| Rated Power | 22.2 kW / 2400 rpm |
| Emission Standard | China IV |
| Application | Construction, farming, municipal engineering, landscaping |
Key Specifications
| Category | Parameter | Value |
|---|---|---|
| Basic Information | Model | TZ36U |
| Operating Weight | 3600 kg | |
| Bucket Capacity | 0.13 m³ | |
| Engine (Yanmar) | Engine Brand | Yanmar |
| Direct Injection | ✓ | |
| 4-Stroke | ✓ | |
| Water Cooled | ✓ | |
| Number of Cylinders | 3 | |
| Rated Power | 22.2 kW / 2400 rpm | |
| Displacement | 1.6 L | |
| Fluid Capacities | Fuel Tank Capacity | 40 L |
| Hydraulic Tank Capacity | 40 L | |
| Engine Oil Capacity | 6 L | |
| Hydraulic System | Main Pump Rated Flow | 108 L/min |
| Main Valve Pressure | 25 MPa | |
| Travel System Pressure | 25 MPa | |
| Swing System Pressure | 25 MPa | |
| Pilot System Pressure | 3.9 MPa | |
| Performance | Travel Speed (High/Low) | 4.6 / 2.6 km/h |
| Swing Speed | 10 r/min | |
| Gradeability | 35° | |
| Ground Pressure | 32 kPa | |
| Bucket Digging Force | 30.1 kN | |
| Arm Digging Force | 19.9 kN | |
| Max. Traction Force | 38 kN | |
| Working Range | Max. Digging Height | 4925 mm |
| Max. Dumping Height | 3475 mm | |
| Max. Digging Depth | 3135 mm | |
| Max. Vertical Digging Depth | 2280 mm | |
| Max. Digging Reach on Ground | 5386 mm | |
| Min. Swing Radius | 860 mm | |
| Dimensions | Overall Length | 4875 mm |
| Overall Width | 1730 mm | |
| Overall Height | 2550 mm | |
| Turntable Width | 1543 mm | |
| Track Length | 2122 mm | |
| Chassis Width | 1730 mm | |
| Track Shoe Width | 300 mm | |
| Track Length on Ground | 1640 mm | |
| Track Gauge | 1430 mm | |
| Counterweight Clearance | 590 mm | |
| Min. Ground Clearance | 295 mm | |
| Min. Tail Swing Radius | 860 mm | |
| Track Height | 524 mm | |
| Standard Boom & Arm | Boom Length | 2540 mm |
| Arm Length | 1400 mm |
Key Features
| Feature | Description |
|---|---|
| Zero Tail Swing | Min. tail swing radius of 860 mm allows safe and efficient operation in confined spaces |
| Powerful Yanmar Engine | 3-cylinder Yanmar diesel engine delivers 22.2 kW power with low fuel consumption |
| High Digging Force | Bucket digging force of 30.1 kN and arm digging force of 19.9 kN for superior performance |
| Efficient Hydraulic System | Main pump flow of 108 L/min with 25 MPa system pressure ensures smooth and responsive operation |
| Compact Design | Overall width of 1730 mm and height of 2550 mm for easy transport and storage |
| Stable Undercarriage | Reinforced track frame with 300 mm track shoes provides excellent stability on rough terrain |
| Comfortable Operation | Ergonomically designed cab with good visibility and low noise levels |
| Easy Maintenance | Convenient access to daily maintenance points with large opening covers |
Main Application Areas
| Application Area | Description |
|---|---|
| Urban Construction | Ideal for narrow street excavation, pipe laying, and foundation work |
| Farming & Agriculture | Suitable for land leveling, ditch digging, and orchard cultivation |
| Municipal Engineering | Perfect for road repair, drainage works, and small-scale earthmoving |
| Landscaping | Excellent for garden construction, tree planting, and site beautification |
| Small Mining & Quarry | Capable of light material handling and loading in small quarries |
| Demolition | Zero tail swing design enables operation in building demolition sites |
Note: Specifications are subject to change due to continuous product improvement. Please refer to the actual product.
