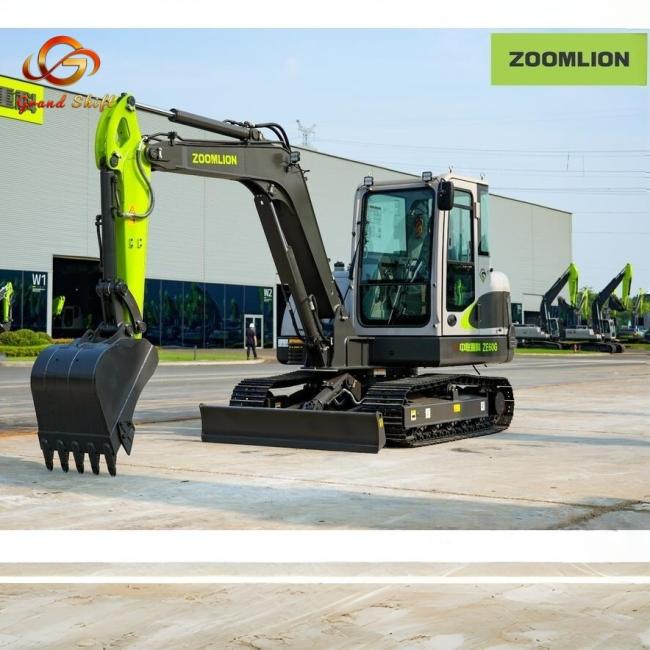

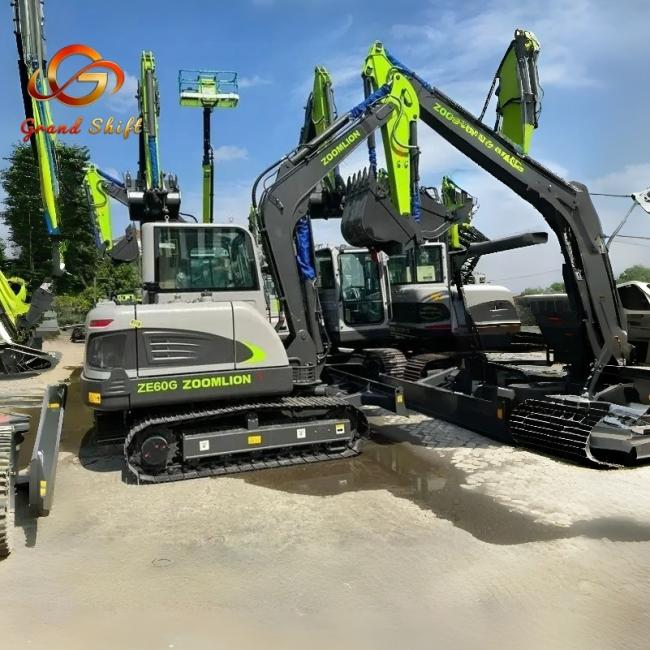

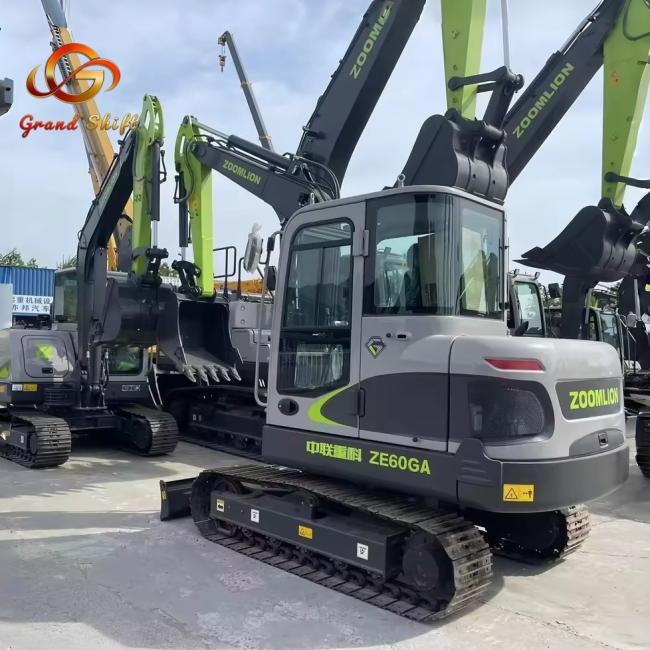

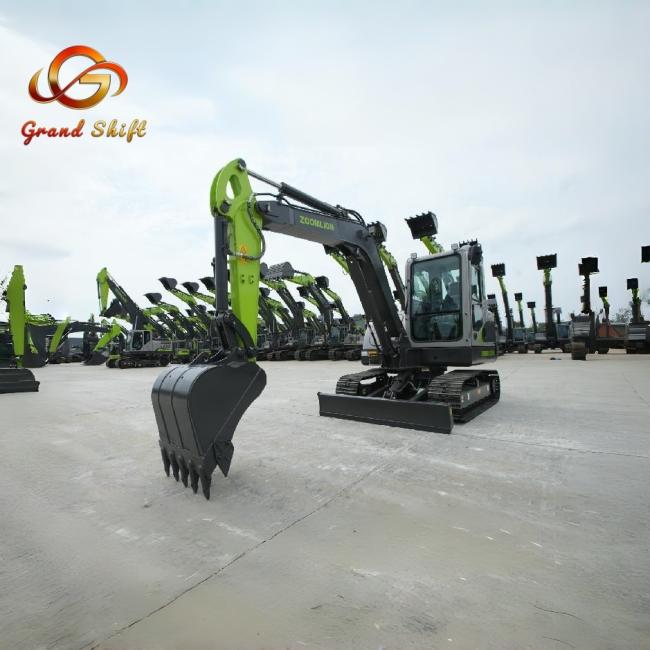

ZOOMLION ZE60G 6Ton Zero Tail Swing Excavator with Yanmar Engine for Urban Utility and Compact Design
Product Overview
The ZOOMLION ZE60G is a 6-ton-class small hydraulic crawler excavator developed under the company's "Product 4.0" strategy . As part of the new-generation G-series earthmoving machinery, the ZE60G is built on a global product development platform, focusing on three core design principles: comfortable driving experience, car-grade maintenance convenience, and intelligent control operation .
Key Specifications at a Glance
| Parameter | Value |
|---|---|
| Model | ZE60G |
| Operating Weight | 5,950 - 6,050 kg |
| Standard Bucket Capacity | 0.23 m³ |
| Engine Power | 35.9 - 42.4 kW / 2000 rpm |
| Travel Speed (High/Low) | 4.2 / 2.3 km/h |
| Swing Speed | 10.8 rpm |
Applications
The ZE60G is designed for versatility across multiple working conditions. Its compact size combined with powerful performance makes it ideal for:
-
Urban Greening and Landscaping – Perfect for tree planting, trench digging, and site preparation in confined urban spaces
-
Building Demolition – Suitable for small to medium demolition projects with precise control capabilities
-
Public Water Conservancy Construction – Effective for canal digging, drainage projects, and irrigation system installation
-
Environmental Greening Construction – Ideal for park development, roadside landscaping, and ecological restoration projects
-
Residential and Commercial Foundation Work – Capable of digging small foundations and utility trenches
The machine's flexible operation and excellent adaptability to various working conditions make it a preferred choice for contractors who need a reliable compact excavator for mixed-use applications .
Key Configurations
Engine System
The ZE60G is powered by a Japanese Yanmar engine (Model: 4TNV94L), known for strong power output and sufficient power reserve . The engine features advanced combustion technology for more complete fuel burning and greater power delivery . Alternative engine options include Weichai power units depending on regional configuration requirements .
| Engine Parameter | Specification |
|---|---|
| Engine Brand | Yanmar / Weichai |
| Engine Model | 4TNV94L |
| Rated Power | 35.9 - 42.4 kW / 2000 rpm |
| Displacement | 3.054 L |
| Emission Standard | EU Stage IIIA / China Stage IV compliant |
Hydraulic System
The ZE60G utilizes a customized load-sensitive hydraulic system equipped with components from well-known brands . This system enables:
-
Precise Flow Distribution – Optimal power allocation between travel, swing, and attachment operations
-
Enhanced Efficiency – 10% efficiency improvement through pressure compensation technology and optimized operation flow
-
Smooth Operation – Excellent controllability for delicate digging tasks
Performance Capabilities
| Performance Parameter | Value |
|---|---|
| Bucket Digging Force | 45.5 kN |
| Arm (Stick) Digging Force | 28.5 kN |
| Max. Drawbar Pull | 54.2 kN |
| Gradeability | 58% |
Working Range
| Working Range Parameter | Value |
|---|---|
| Max. Digging Height | 5,790 mm |
| Max. Dumping Height | 3,980 mm |
| Max. Digging Depth | 3,850 mm |
| Max. Digging Radius | 6,160 mm |
| Max. Digging Radius at Ground Level | 5,960 mm |
Dimensions
| Dimension Parameter | Value |
|---|---|
| Overall Length | 5,880 mm |
| Overall Width | 1,900 mm |
| Overall Height | 2,628 mm |
| Tail Swing Radius | 1,700 mm |
| Track Gauge | 1,500 mm |
| Track Length on Ground | 1,950 mm |
Fluid Capacities
| Fluid Capacity | Value |
|---|---|
| Fuel Tank | 50 L |
| Hydraulic Tank | 40 L |
| Engine Oil | 6 L |
Main Application Areas
The ZE60G is specifically designed to excel in the following sectors:
| Application Sector | Specific Use Cases |
|---|---|
| Urban Construction | Municipal pipeline installation, sidewalk repairs, small building foundations |
| Landscaping & Greening | Park development, golf course construction, roadside landscaping, tree planting |
| Agricultural Engineering | Irrigation canal digging, land leveling, pond excavation |
| Infrastructure Maintenance | Road shoulder repair, drainage system cleaning, utility access |
| Demolition Projects | Small building demolition, concrete structure breaking |
| Rental Fleet | Ideal addition to equipment rental companies serving multiple contractor types |
The machine's compact dimensions allow it to work in space-restricted job sites where larger excavators cannot operate, while its robust construction ensures reliable performance in demanding conditions .
|
|
|
|
|
