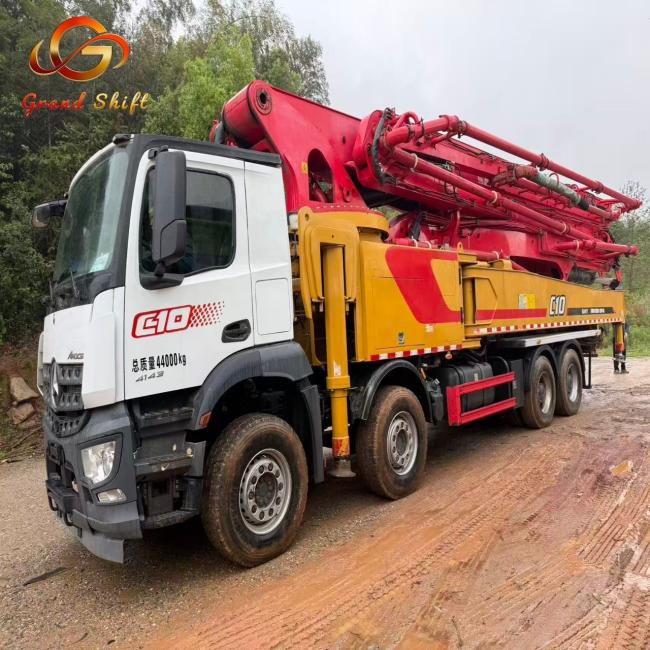

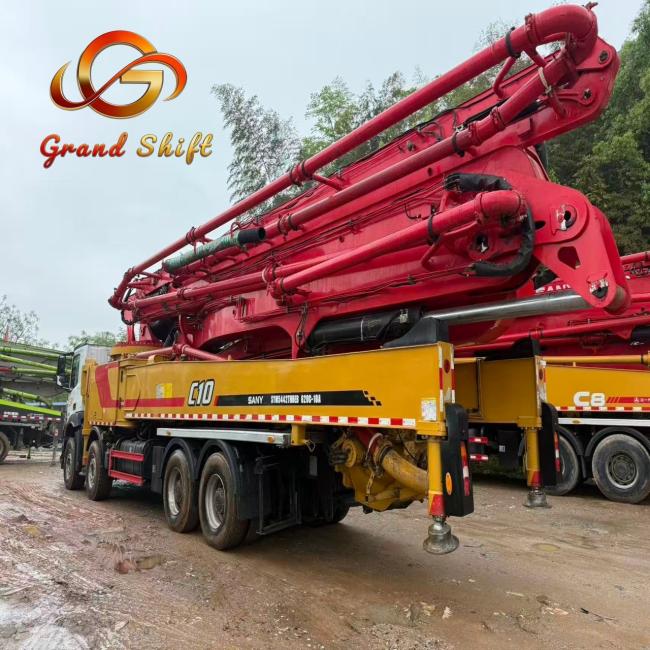

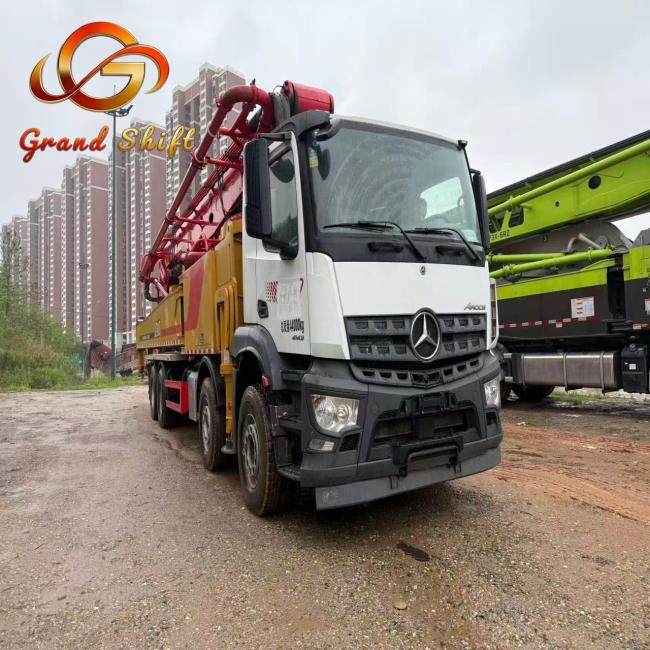

Used 2020 SY 62m Concrete Pump Truck with 61.1m Vertical Reach 180 m³/h Output on Mercedes-Benz Chassis
Price:
115.000~120.000 USD(contact us for detailed quotation)
MOQ:
1 unit (customizable according to user needs )
Delivery Time:
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Brand:
SANY
Product Description
Used year 2020 SY 62m Concrete Pump Truck, Mercedes-Benz Arocs 4143 8×4 Chassis second hand
Specialized equipment engineered for large-scale construction projects requiring high-performance concrete placement.
Basic Information
- Brand: SANY
- Model: SYM5442THBEB (620C-10A)
- Application: High-rise building, bridge, large infrastructure construction
- Condition: Used (2020-2021 year)
- Chassis Brand: Mercedes-Benz
Overall Dimensions & Weight
- Length: 14550 mm
- Width: 2550 mm
- Height: 4000 mm
- Gross Vehicle Weight: 44,000 kg
Boom & Outrigger
- Vertical Reach: 61.1 m
- Horizontal Reach: 55.9 m
- Vertical Depth: 42.7 m
- Min. Operating Height: 13.6 m
- Boom Sections: 5-section
- Outrigger Type: X-type
- Front Outrigger Span: 12.1 m
- Rear Outrigger Span: 11.8 m
Pumping System
- Theoretical Output (Low/High): 180 / 120 m³/h
- Pumping Pressure (Low/High): 8.3 / 12 MPa
- Max. Strokes (Low/High): 29 / 20 times/min
- Delivery Cylinder: φ260 × 1900 mm
- Delivery Pipe Diameter: 125 mm
- End Hose Length: 3 m
- Hydraulic System: Open type, 32 MPa
- Oil Tank Capacity: 800 L
- Water Tank Capacity: 700 L
Chassis (Mercedes-Benz Arocs 4143 8×4)
- Chassis Model: Arocs 4143 8×4
- Axle Configuration: 4 axles (8×4)
- Engine Model: OM470LA.5-54 (Euro V)
- Engine Power: 315 kW / 1600 rpm
- Displacement: 10.677 L
- Fuel Tank Capacity: 390 L
- Max. Speed: 90 km/h
- Tire Spec: 385/65R22.5 (front), 315/80R22.5 (rear)
Key Features
- Mercedes-Benz Chassis: Reliable power, low fuel consumption, easy maintenance.
- 5-section Boom: High-strength steel, light weight, wide operating range.
- High Efficiency Pumping: 180 m³/h max output, stable pressure for high-rise pumping.
- Intelligent Control: HBC remote control, real-time monitoring, fault diagnosis.
- Safety Design: X-type outriggers, anti-overturning system, emergency stop function.
-
Energy Saving & High Efficiency
♦ The specialized and tailored load sensing system brings more excellent operability and higher efficient operation.
♦ Together with fast slewing speed and large bucket capacity, more value for customers can be created.Sensitive Operation
♦ Accurate distribution of multi-actuator variable load flow brings more coordinated simultaneous movements.
♦ Perfect startup and stop features of the pilot-operated joysticks offer better micro-positioning control performance.Excellent Reliability & Durability
♦ The large profile design of the integrally molded structural elements specially strengthens the key parts, Which makes the machine obtain higher load bearing capacity and enhance adaptability to adverse working conditions.High Comfort & Intelligence
♦ Spacious operation cab, superb all-round visibility, suspended seat, provides a high level of operator comfort.
♦ All recreational functions such as 5.7-inch large-screen monitor, CANBus radio, USB and Bluetooth are available.Convenient Maintenance
♦ Front and rear covers can be fully opened, provides large space.
♦ Inspection and maintenance can be conducted comfortably to achieve shortened maintenance time. -
Operational Advantages
- High-efficiency concrete placement with precise control
- Exceptional stability during continuous operation
- Flexible boom positioning for complex site requirements
- Strong adaptability to various construction conditions
- Significant reduction in manual labor requirements
- Improved construction efficiency and quality assurance
